Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the knee bolster to the steering column support bracket.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the 4 knee bolster retaining nuts.

    Tighten

    Tighten the nuts to 10 N.m (88 lb in).

  3. Install the knee bolster trim panel. Refer to TRIM PANEL REPLACEMENT - KNEE BOLSTER   .
  4. Install the left closeout/insulator panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT   .

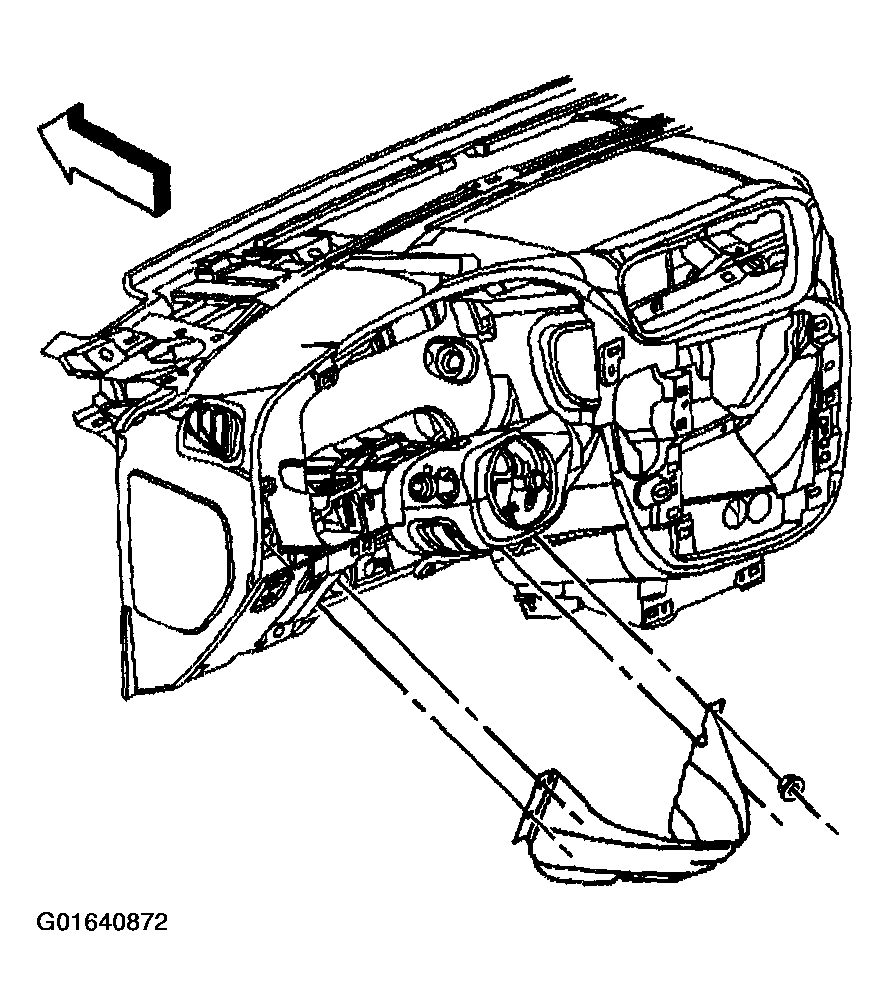

    Fig 1: Installing Knee Bolster To Steering Column Support Bracket
    G01640872Courtesy of GENERAL MOTORS CORP.
