Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
  2. Remove the left closeout/insulator panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT  .
  3. Remove the knee bolster trim panel. Refer to TRIM PANEL REPLACEMENT - KNEE BOLSTER  .
  4. Remove the knee bolster. Refer to KNEE BOLSTER REPLACEMENT  .
  5. Remove the left HVAC push pin (2).
  6. Remove the left HVAC floor duct (1).

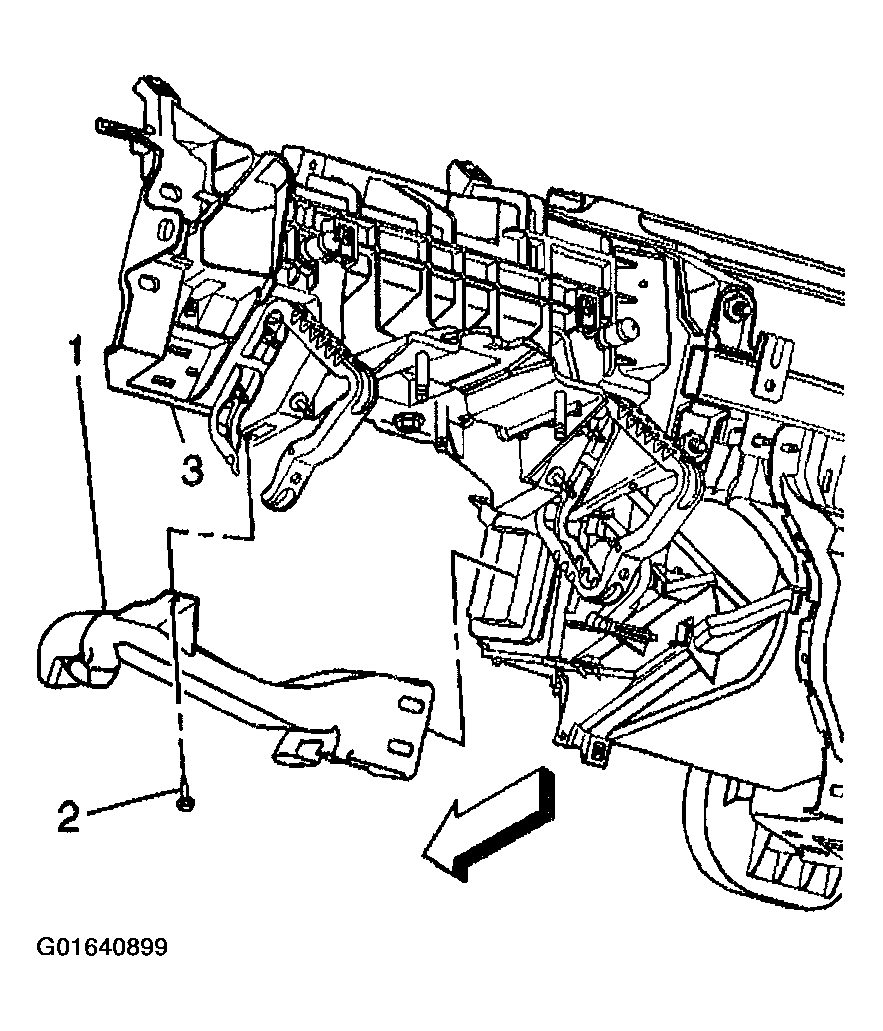

    Fig 1: Removing Left HVAC Floor Duct & Push Pin
    G01640899Courtesy of GENERAL MOTORS CORP.
  7. Fully lower the steering column. Refer to STEERING COLUMN REPLACEMENT  in Steering Wheel and Column.
  8. Remove the shift lever bezel, Oldsmobile only.

    Refer to CONSOLE SHIFT LEVER BEZEL REPLACEMENT (OLDSMOBILE)   .

  9. Remove the center console. Refer to CONSOLE REPLACEMENT   .
  10. Remove the I/P lower sound insulator panel, GMC or Chevrolet only. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) LOWER (GMC/CHEVROLET)   .
  11. Remove the I/P accessory trim plate, GMC or Oldsmobile only. Refer to TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY (CHEVROLET)   or TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY (OLDSMOBILE)   .
  12. Remove the I/P cluster bezel, Chevrolet only.

    Refer to BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER (CHEVROLET)   or BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER (GMC/OLDSMOBILE)   .

  13. Remove the I/P cluster. Refer to INSTRUMENT PANEL CLUSTER (IPC) REPLACEMENT   .
  14. Remove the right closeout/insulator panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT   .
  15. Remove the I/P storage compartment door. Refer to DOOR REPLACEMENT - INSTRUMENT PANEL (I/P) COMPARTMENT   .
  16. Remove the radio. Refer to RADIO REPLACEMENT  in Entertainment.
  17. Remove the HVAC control module. Refer to HVAC CONTROL MODULE REPLACEMENT  in HVAC Systems with A/C-Manual.
  18. Remove the HVAC control module wire harness attachment (1) from the I/P substrate.

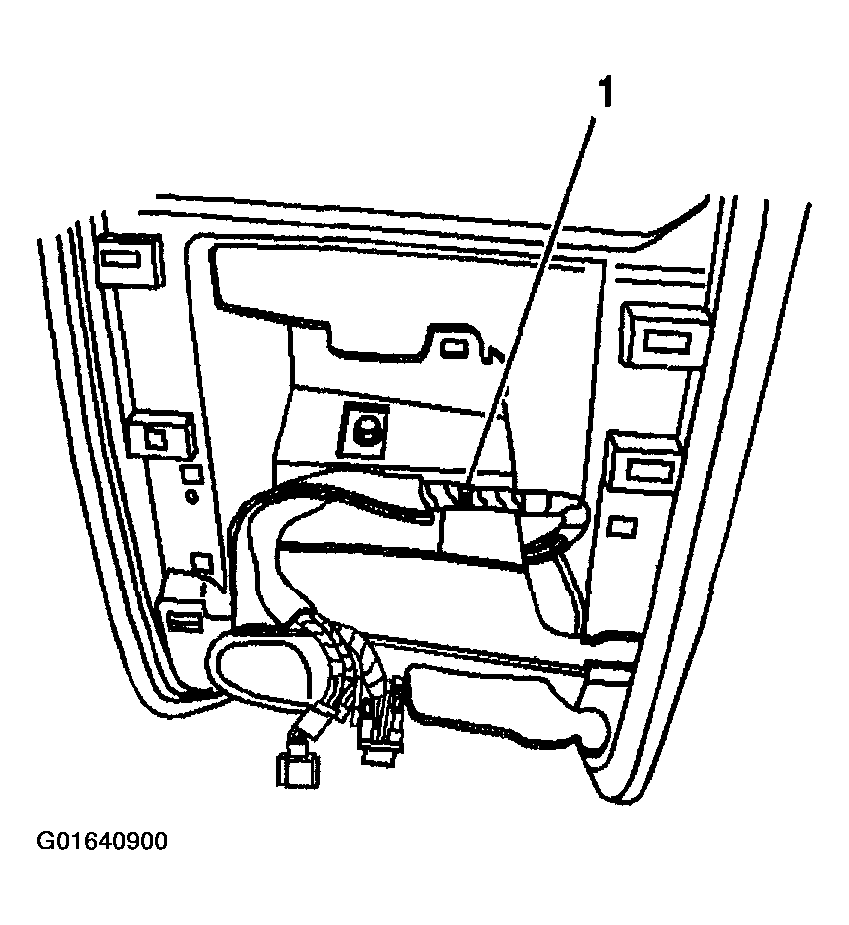

    Fig 2: Removing HVAC Control Module Wire Harness Attachment
    G01640900Courtesy of GENERAL MOTORS CORP.
  19. Remove the left I/P access cover.
  20. Remove the headlamp switch. Refer to HEADLAMP SWITCH REPLACEMENT  in Lighting Systems.
  21. If replacing the I/P, remove the headlamp switch bezel. Refer to TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY LEFT   .
  22. Remove the windshield garnish moldings. Refer to GARNISH MOLDING REPLACEMENT - WINDSHIELD PILLAR  in Interior Trim.
  23. Remove the trim pad. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER   .
  24. Remove the front upper speakers, if equipped.

    Refer to SPEAKER REPLACEMENT - FRONT UPPER  in Entertainment.

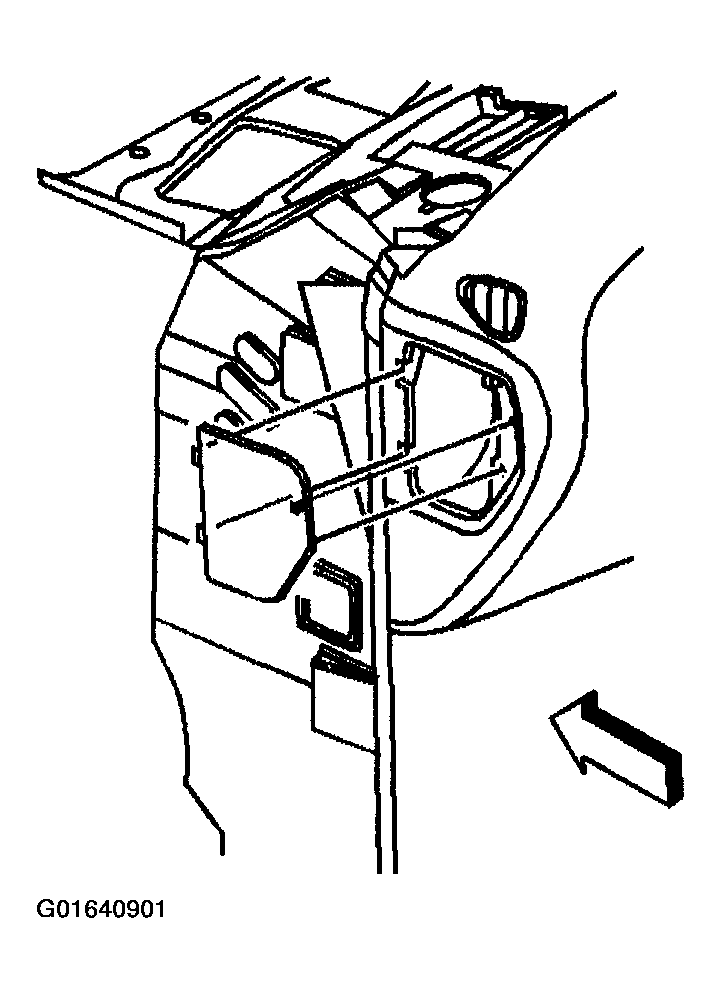

    Fig 3: Removing Left Instrument Panel Access Cover
    G01640901Courtesy of GENERAL MOTORS CORP.
  25. Remove the right I/P access cover.

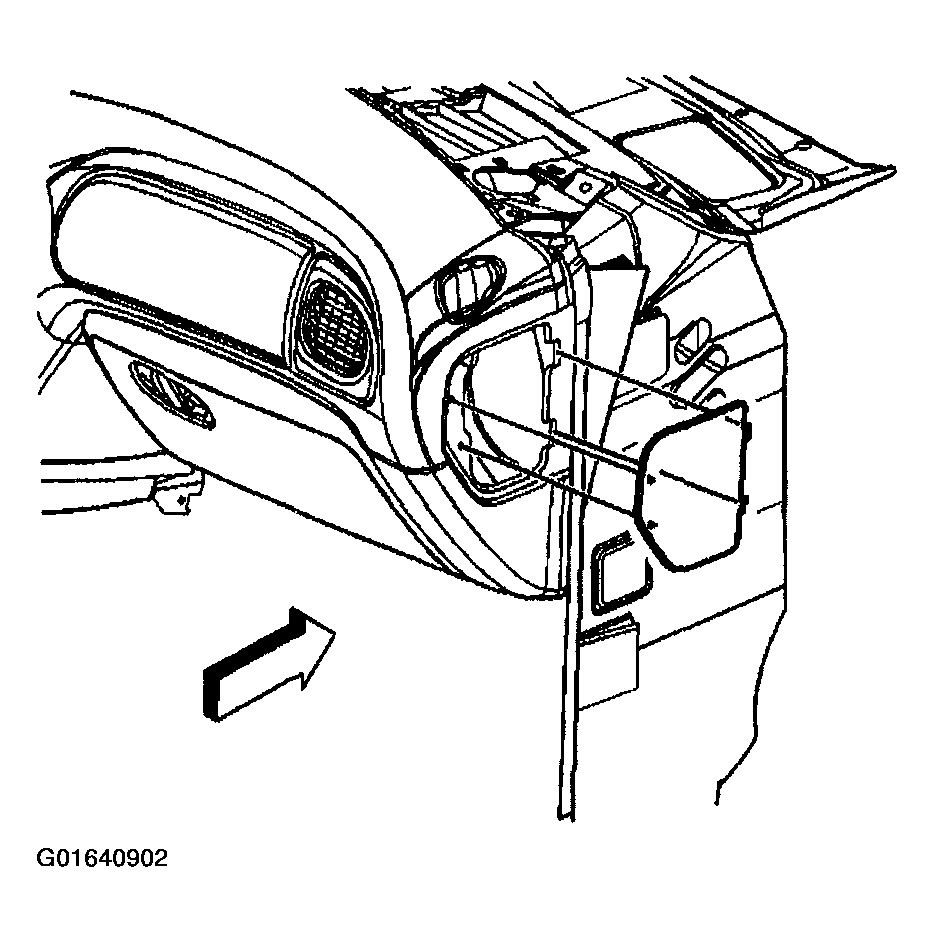

    Fig 4: Removing Right Instrument Panel Access Cover
    G01640902Courtesy of GENERAL MOTORS CORP.
  26. Remove the side window defogger outlet screw.

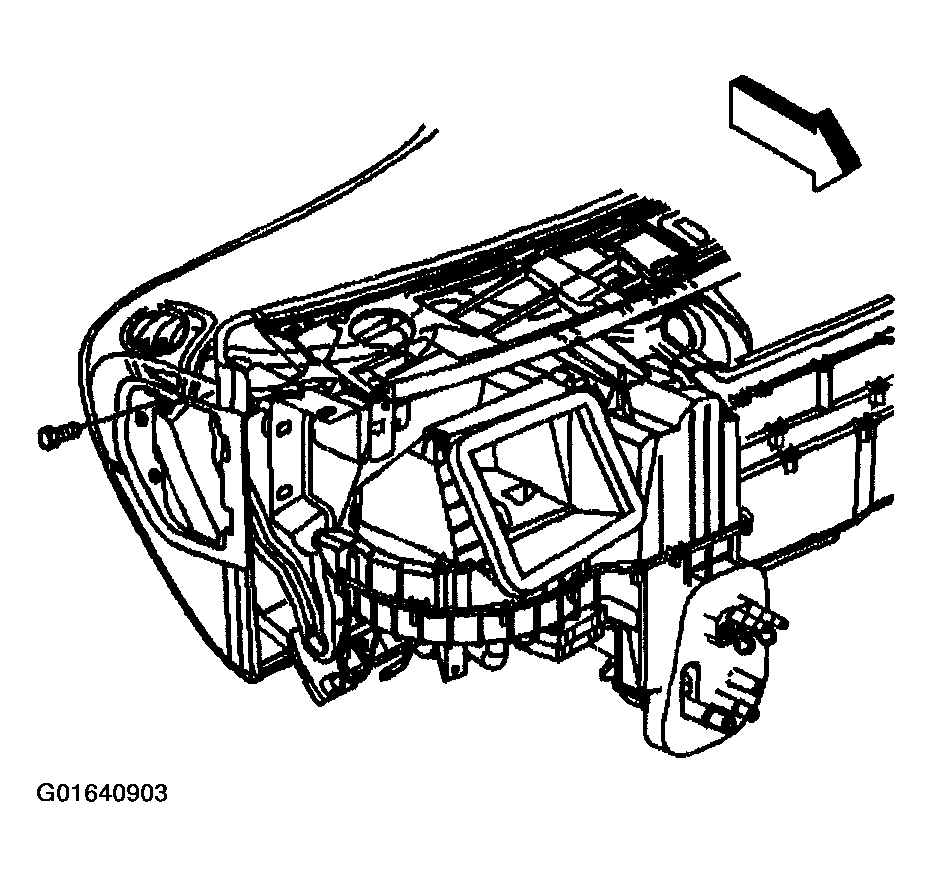

    Fig 5: Removing Side Window Defogger Outlet Screw
    G01640903Courtesy of GENERAL MOTORS CORP.
  27. Remove the bolts securing the lower portion of the instrument panel to the vehicle.

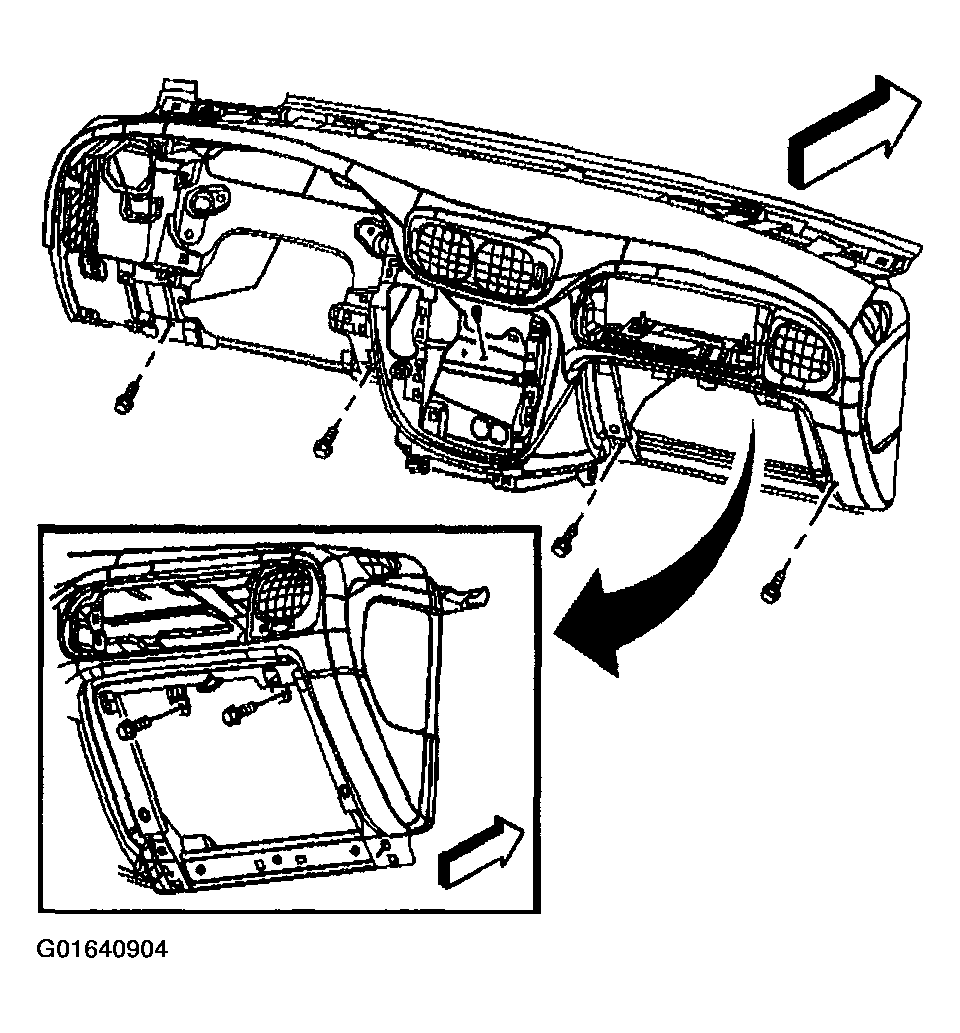

    Fig 6: Removing Instrument Panel Lower Portion Retaining Bolts
    G01640904Courtesy of GENERAL MOTORS CORP.
  28. Remove the bolts that secure the middle and upper portion of the instrument panel to the vehicle.
  29. With the aid of an assistant, lift up from the bottom of the instrument panel in order to release the I/P from the positioning locators.
  30. Remove the instrument panel from the vehicle.
  31. Place the I/P on a clean prepared surface.
  32. If replacing the I/P, remove the passenger inflatable restraint I/P module. Refer to INSTRUMENT PANEL CLUSTER (IPC) .
  33. If replacing the I/P, remove the air distribution duct vents from the instrument panel. Refer to AIR DISTRIBUTOR DUCT REPLACEMENT  in HVAC.

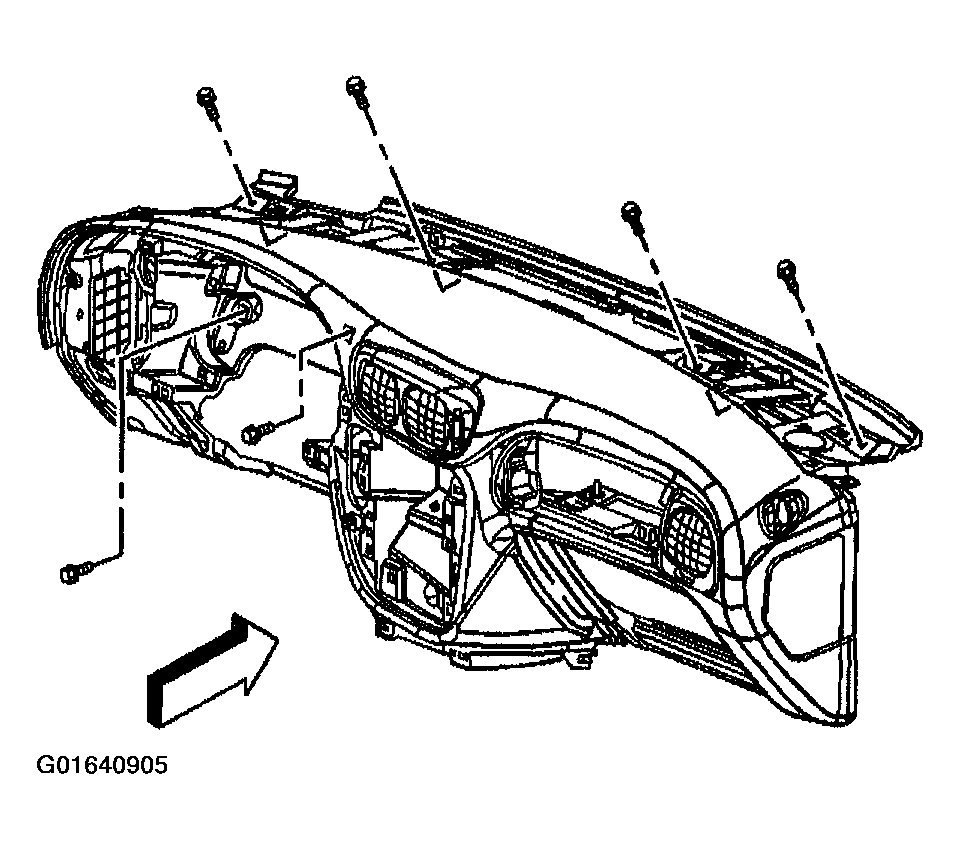

    Fig 7: Removing Instrument Panel Middle & Upper Portion Bolts
    G01640905Courtesy of GENERAL MOTORS CORP.
