Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right closeout/insulator panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT   .
  2. Remove the 3 storage compartment retaining screws.
  3. Remove the storage compartment from the IP.

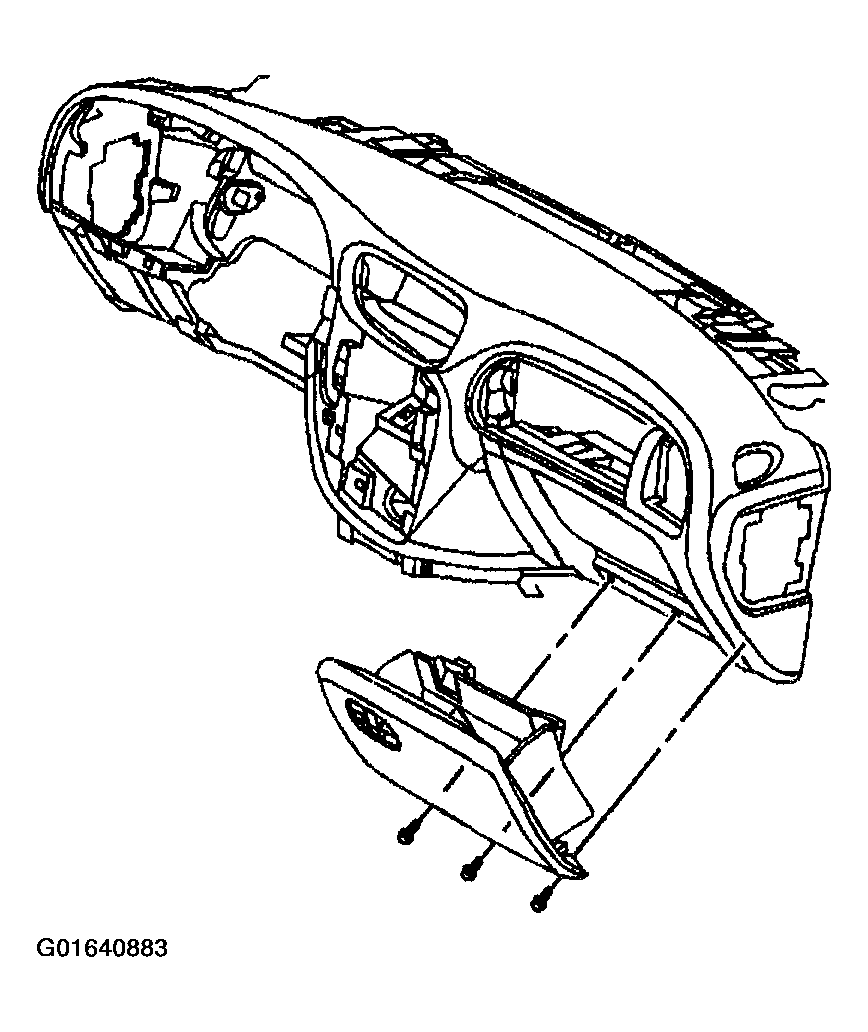

    Fig 1: Removing Storage Compartment & Screws From Instrument Panel
    G01640883Courtesy of GENERAL MOTORS CORP.
