Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the storage compartment to the IP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the 3 screws.

    Tighten

    Tighten the screws to 2.5 N.m (22 lb in).

  3. Install the right closeout/insulator panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT   .

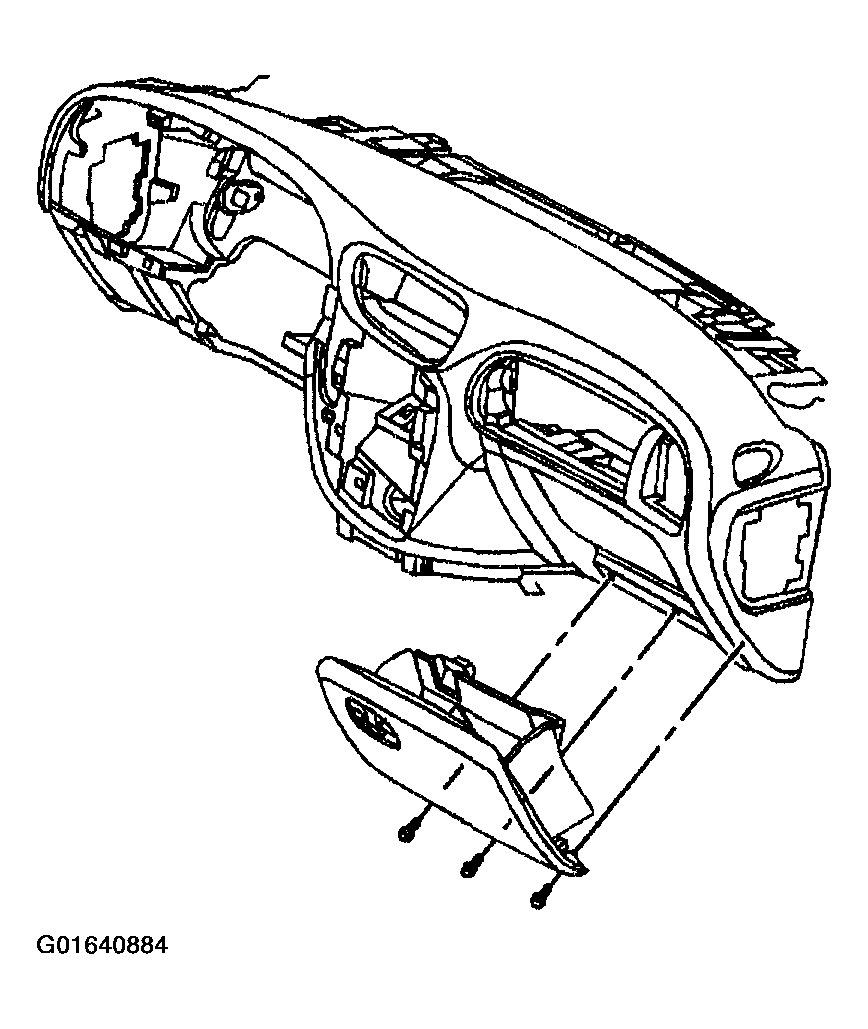

    Fig 1: Installing Storage Compartment & Screws To Instrument Panel
    G01640884Courtesy of GENERAL MOTORS CORP.
