Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the storage bin to the console.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the 6 screws that retain the storage bin to the console.

    Tighten

    Tighten the screws to 2.5 N.m (22 lb in).

  3. Close the storage bin cover.

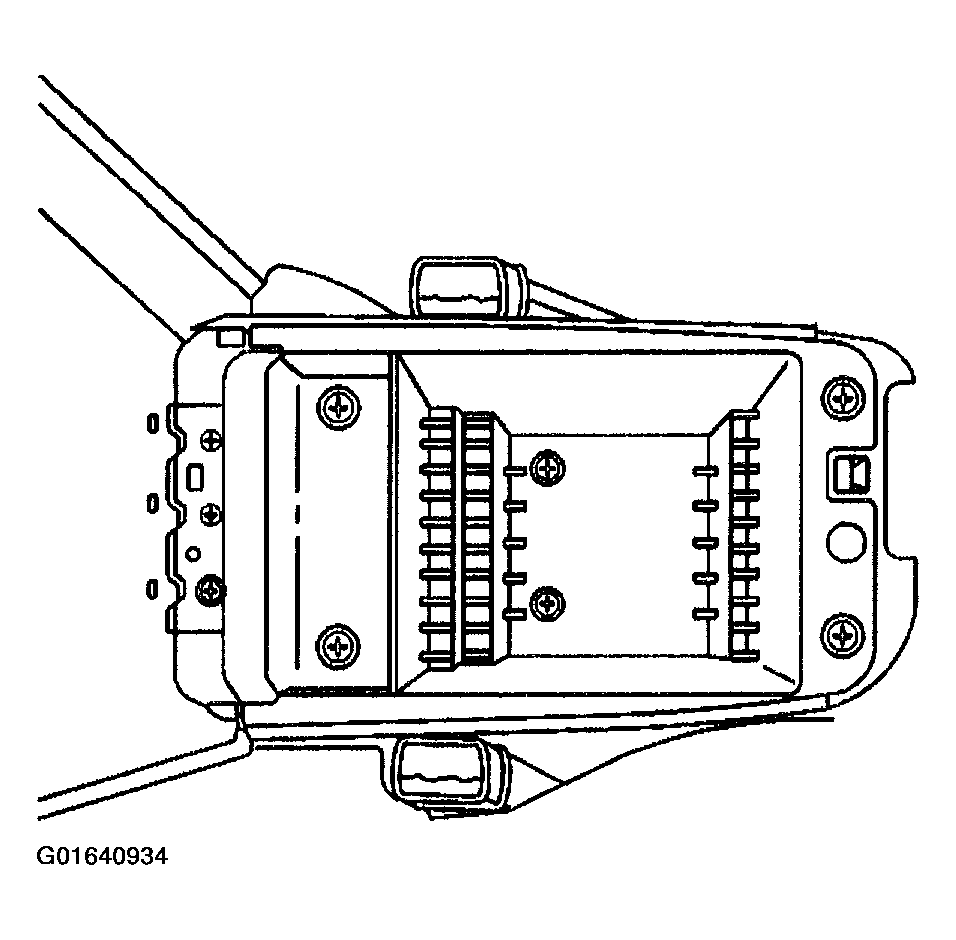

    Fig 1: Installing Storage Bin To Console
    G01640934Courtesy of GENERAL MOTORS CORP.
