Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Block the wheels to prevent the vehicle from moving.
  2. Remove the floor shift control boot from the floor console.
  3. Push the automatic transmission shift lock control release tab forward while depressing the shift handle release button and adjust the shift lever fully rearward.
  4. Remove the floor console trim plate by releasing the retaining clips.
  5. Remove the trim plate from the floor console.

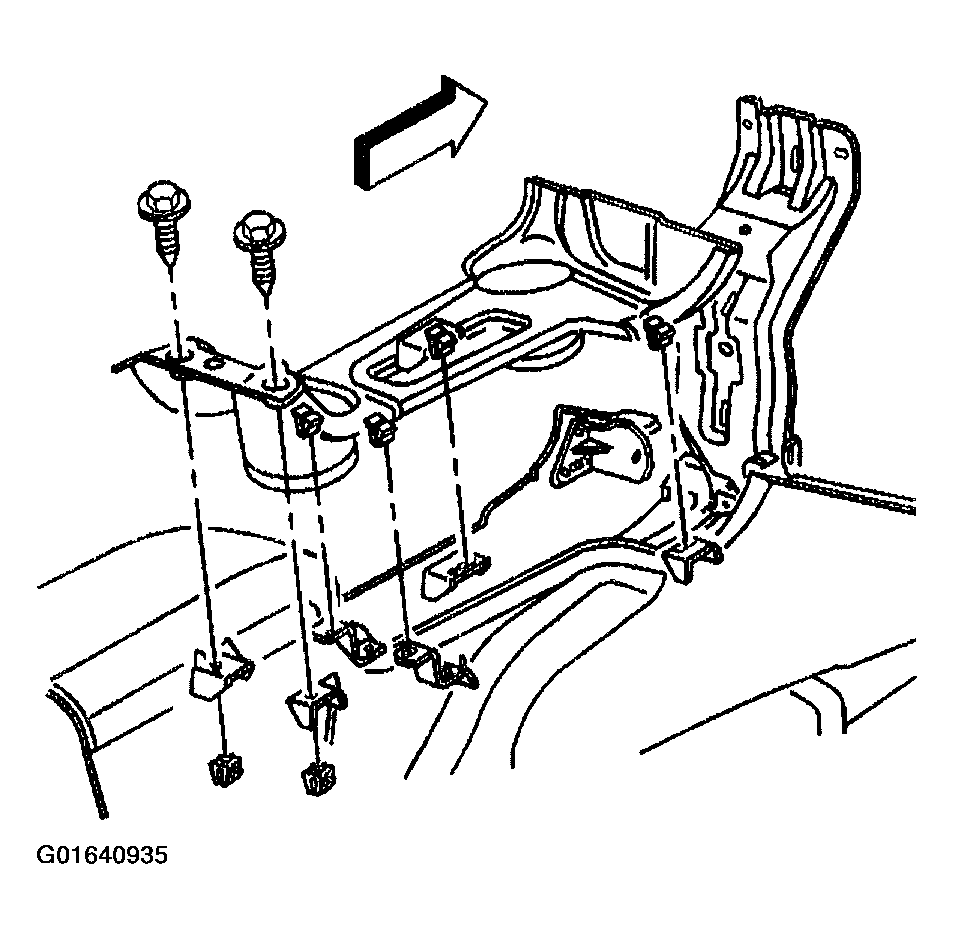

    Fig 1: Removing Floor Console Trim Plate & Clips
    G01640935Courtesy of GENERAL MOTORS CORP.
