Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the trim plate from the floor console.
  2. Install the floor console trim plate by seating the retaining clips.
  3. Install the floor shift control boot to the console.
  4. Position the shift lever in the PARK position.
  5. Remove the blocks from the vehicle.

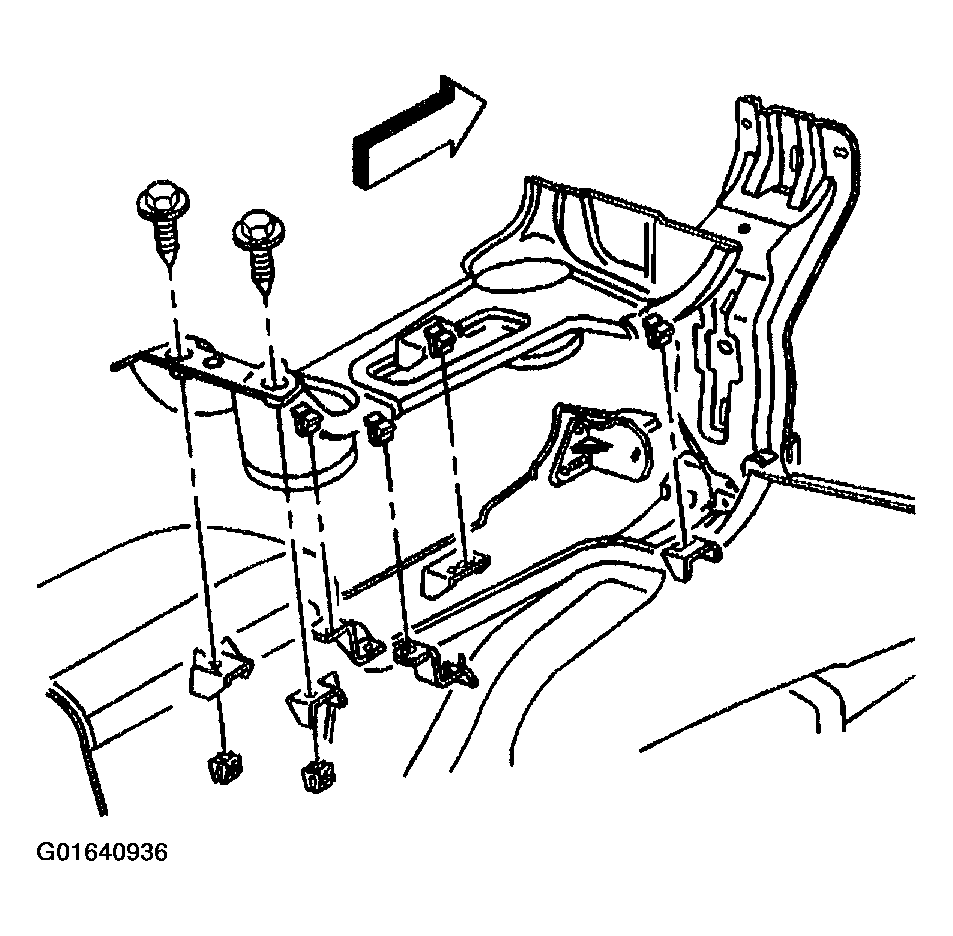

    Fig 1: Installing Floor Console Trim Plate & Clips
    G01640936Courtesy of GENERAL MOTORS CORP.
