Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Block the wheels to prevent the vehicle from moving.
  2. Remove the rubber ash tray inserts and rubber mat from the console.
  3. Remove the floor shift control knob.
  4. Remove the center console shift lever bezel, Oldsmobile only. Refer to CONSOLE SHIFT LEVER BEZEL REPLACEMENT (OLDSMOBILE)   .
  5. Remove the console storage compartment. Refer to CONSOLE STORAGE BIN REPLACEMENT   .
  6. Remove the center console retaining screws.
  7. Adjust the parking brake to the full-up, or fully engaged position.

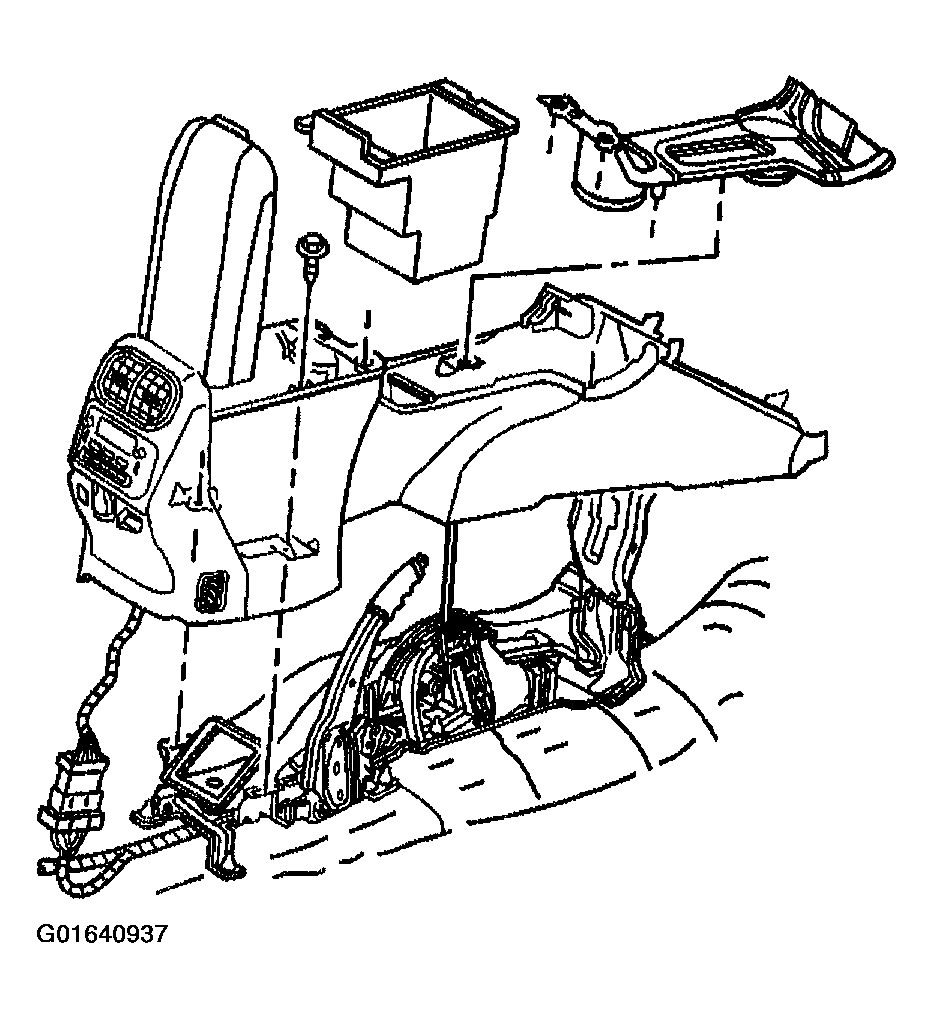

    Fig 1: Removing Center Console From Vehicle
    G01640937Courtesy of GENERAL MOTORS CORP.
  8. Release the 2 forward trim extensions ears attached to the lower IP- Oldsmobile only.
  9. Slide the console rearward and raise the rear of the console in order to expose the electrical connectors.
  10. Disconnect the electrical connectors as necessary.
  11. Adjust the parking brake to approximately the halfway position.
  12. Remove the center console from the vehicle.
