Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the 2 screws that retain the insulator panel to the instrument panel (IP).
  2. Partially remove the insulator panel.
  3. Remove the electrical connector retaining clip from the back side of the insulator panel if equipped.
  4. Remove the insulator panel from the vehicle.

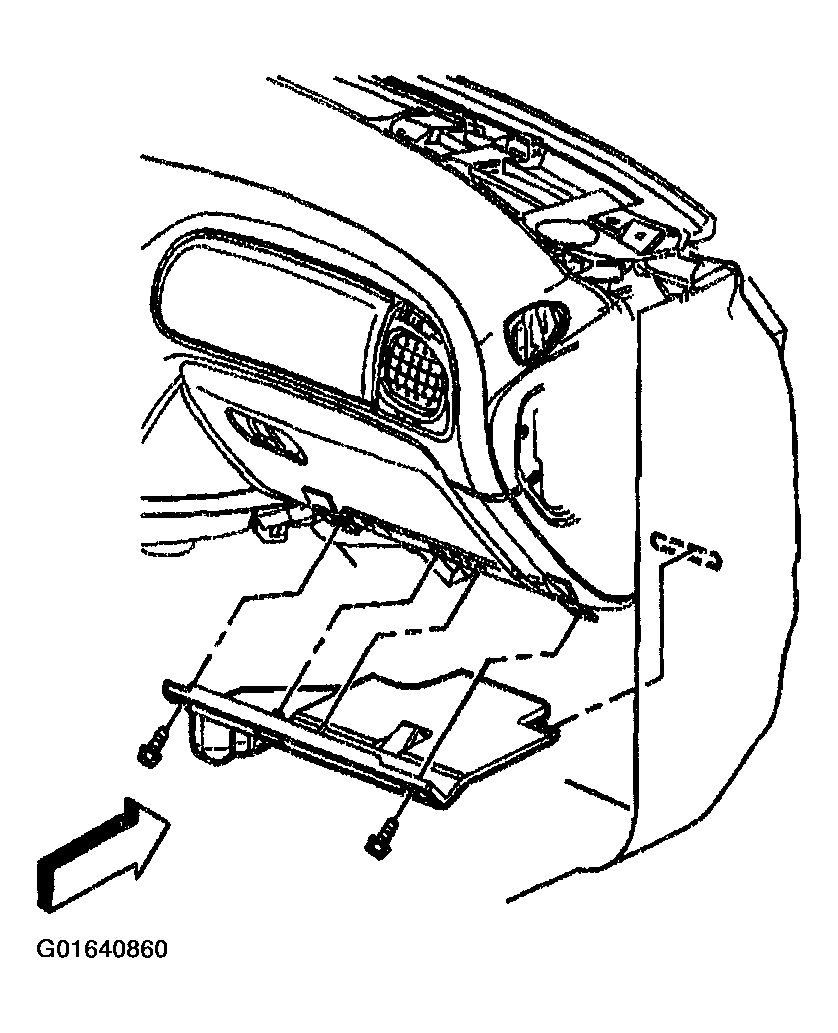

    Fig 1: Removing Insulator Panel From Vehicle
    G01640860Courtesy of GENERAL MOTORS CORP.
