Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the insulator panel to the vehicle, positioning the insulator panel to the IP.
  2. Install the electrical connector retaining clip to the back side of the insulator panel if equipped.
  3. Insert the insulator panel retaining tab into the cowl slot.
  4. Seat the insulator panel retaining clip to the IP substrate.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  5. Install the 2 insulator panel retaining screws.

    Tighten

    Tighten the screws to 2.5 N.m (22 lb in).

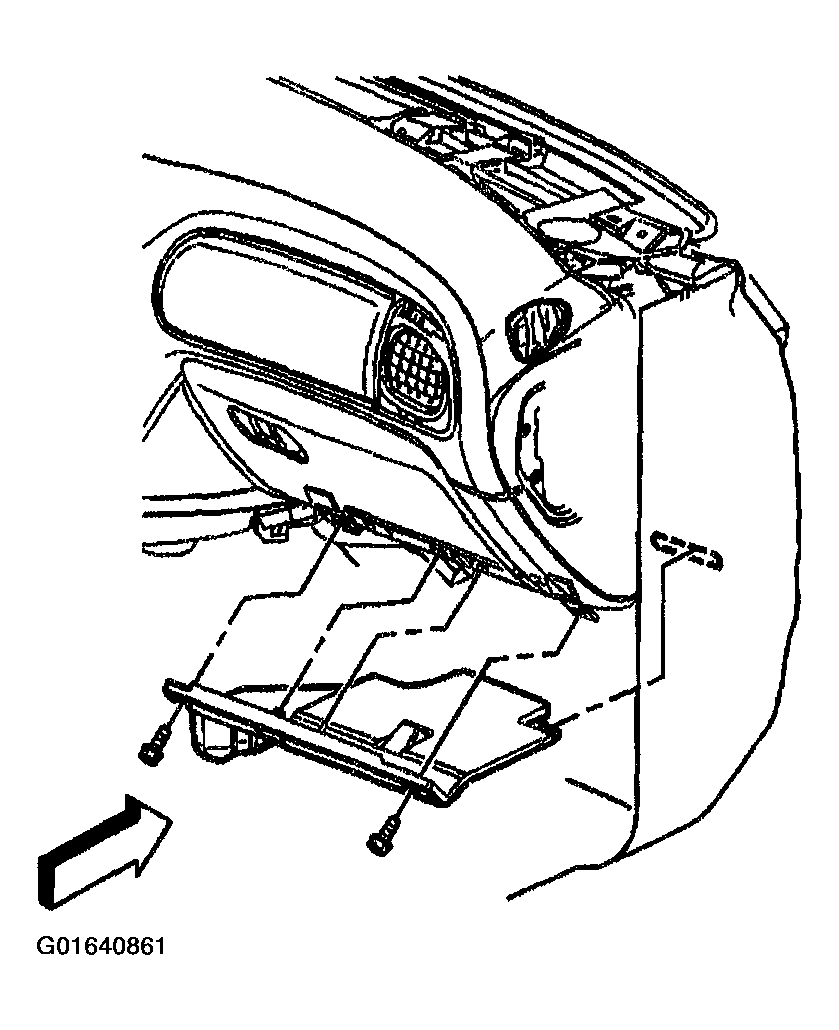

    Fig 1: Installing Insulator Panel To Vehicle
    G01640861Courtesy of GENERAL MOTORS CORP.
