Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the 2 screws that retain the insulator panel to the instrument panel (I/P).
  2. Release the insulator panel retaining clip from the I/P substrate.
  3. Lower the insulator panel.

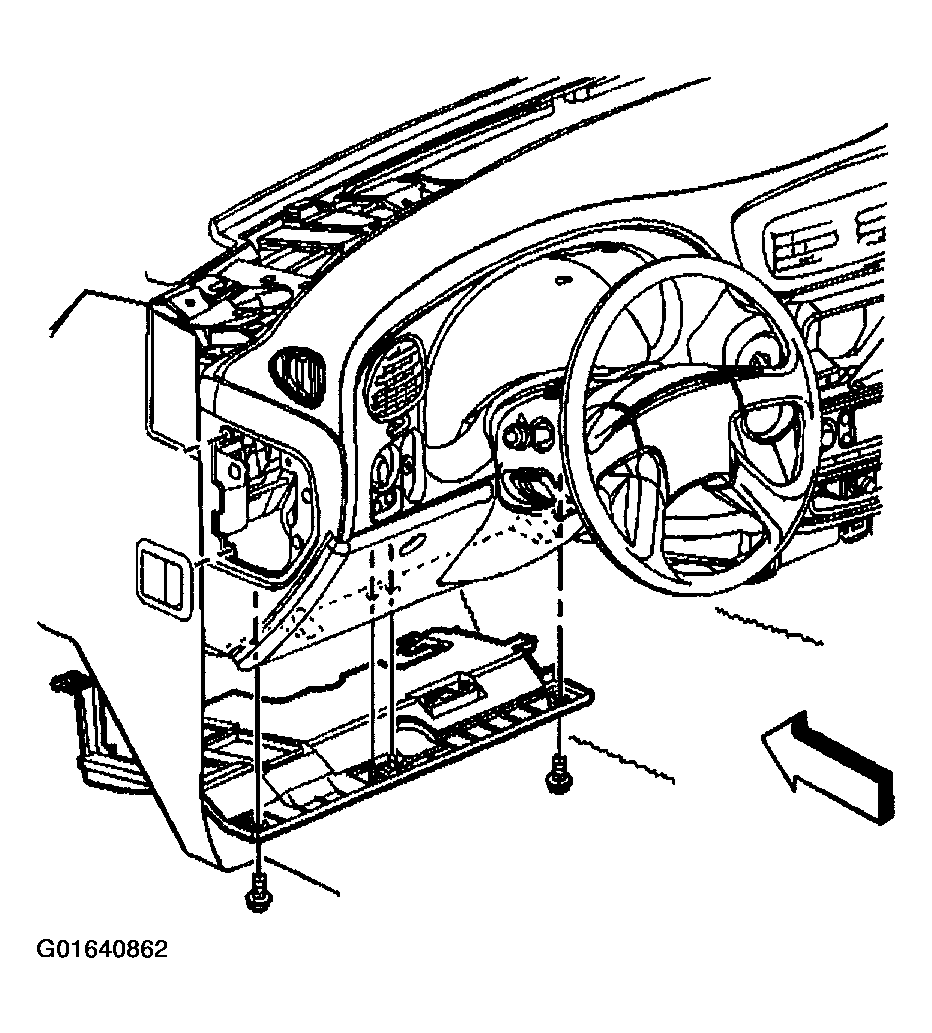

    Fig 1: Removing Insulator Panel Retaining Screws
    G01640862Courtesy of GENERAL MOTORS CORP.
  4. Remove the 2 data link connector (DLC) retaining screws.
  5. Remove the DLC from the insulator panel.
  6. Remove the splice pack from the insulator panel.
  7. Remove the hazard and turn signal flasher from the insulator panel. Refer to HAZARD AND TURN SIGNAL FLASHER REPLACEMENT  in Lighting Systems.
  8. Remove the insulator panel from the I/P.

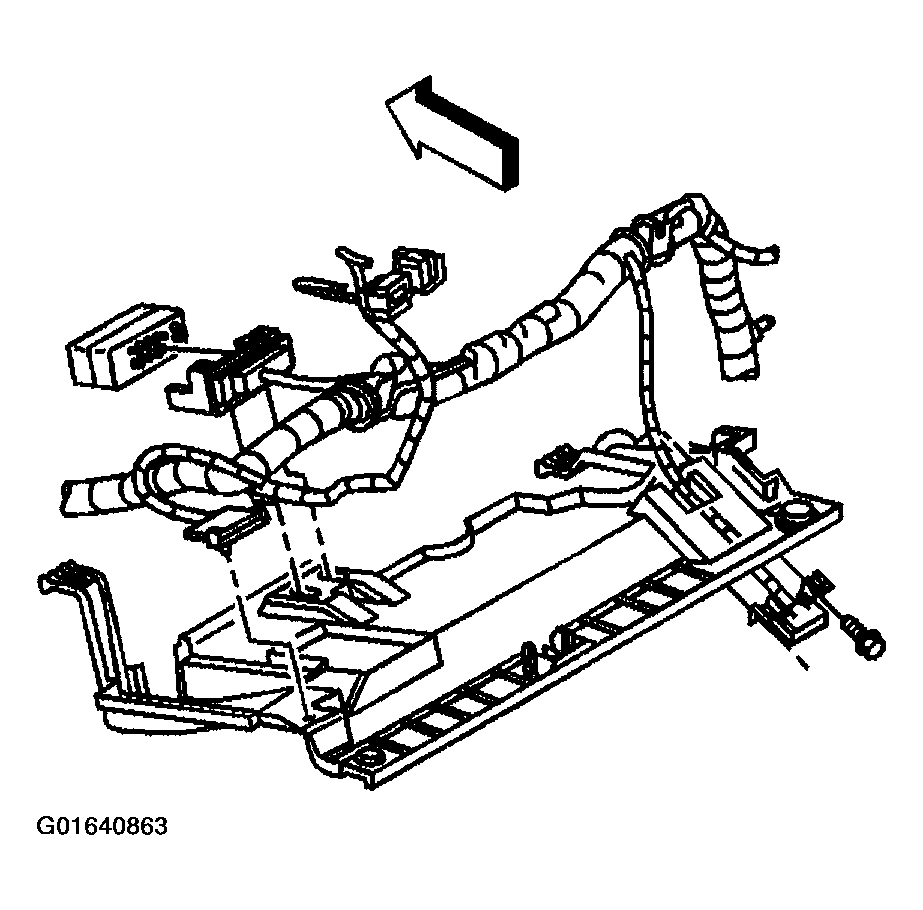

    Fig 2: Removing Data Link Connector From Insulator Panel
    G01640863Courtesy of GENERAL MOTORS CORP.
