Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the insulator panel to the I/P.
  2. Install the hazard and turn signal flasher to the insulator panel. Refer to HAZARD AND TURN SIGNAL FLASHER REPLACEMENT  in Lighting Systems.
  3. Install the splice pack to the insulator panel.
  4. Position the DLC to the insulator panel.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  5. Install the DLC retaining screws.

    Tighten

    Tighten the DLC retaining screws to 2.5 N.m (22 lb in).

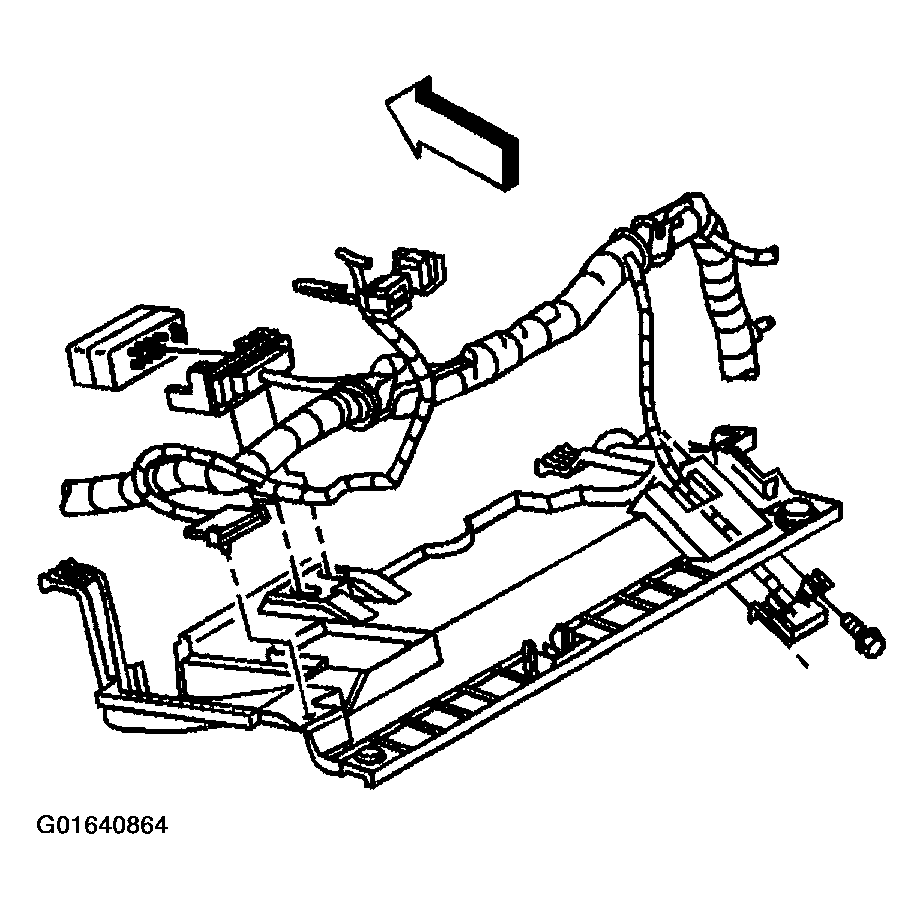

    Fig 1: Installing Data Link Connector To Insulator Panel
    G01640864Courtesy of GENERAL MOTORS CORP.
  6. Install the insulator panel tabs to the cowl slots.

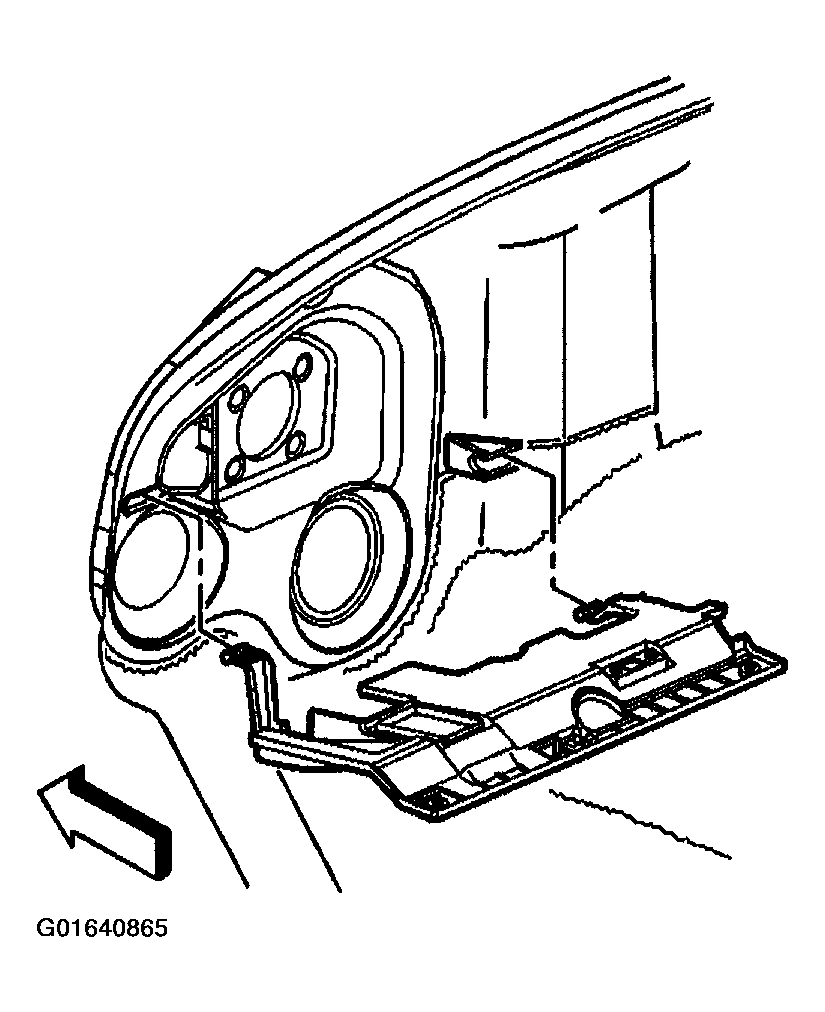

    Fig 2: Installing Insulator Panel Tabs To Cowl Slots
    G01640865Courtesy of GENERAL MOTORS CORP.
  7. Raise the insulator panel to the I/P.
  8. Install the insulator panel retaining clip to the I/P substrate.
  9. Install the 2 screws that retain the insulator panel to the I/P.

    Tighten

    Tighten the screws to 2.5 N.m (22 lb in).

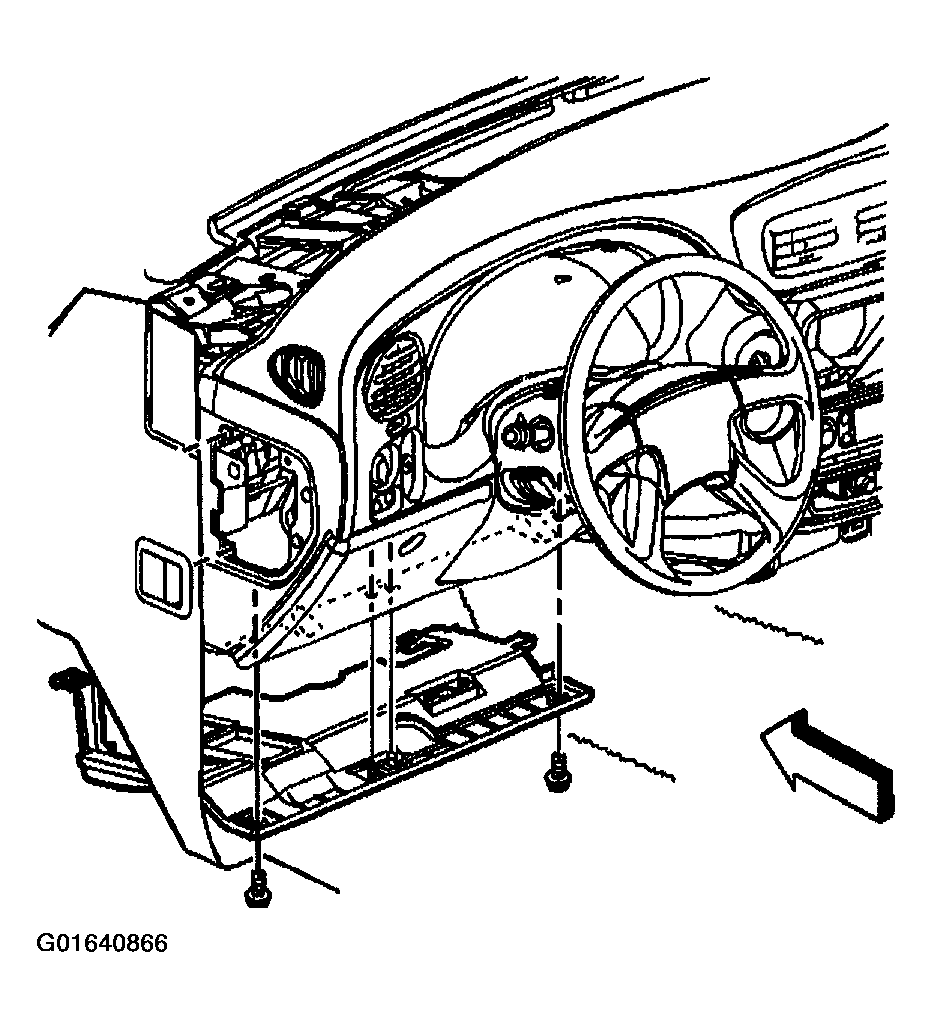

    Fig 3: Installing Insulator Panel Retaining Screws
    G01640866Courtesy of GENERAL MOTORS CORP.
