Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the floor console. Refer to CONSOLE REPLACEMENT   .
  2. Remove the 4 screws that retain the closeout panel to the instrument panel (IP) substrate.
  3. Remove the closeout panel from the vehicle.

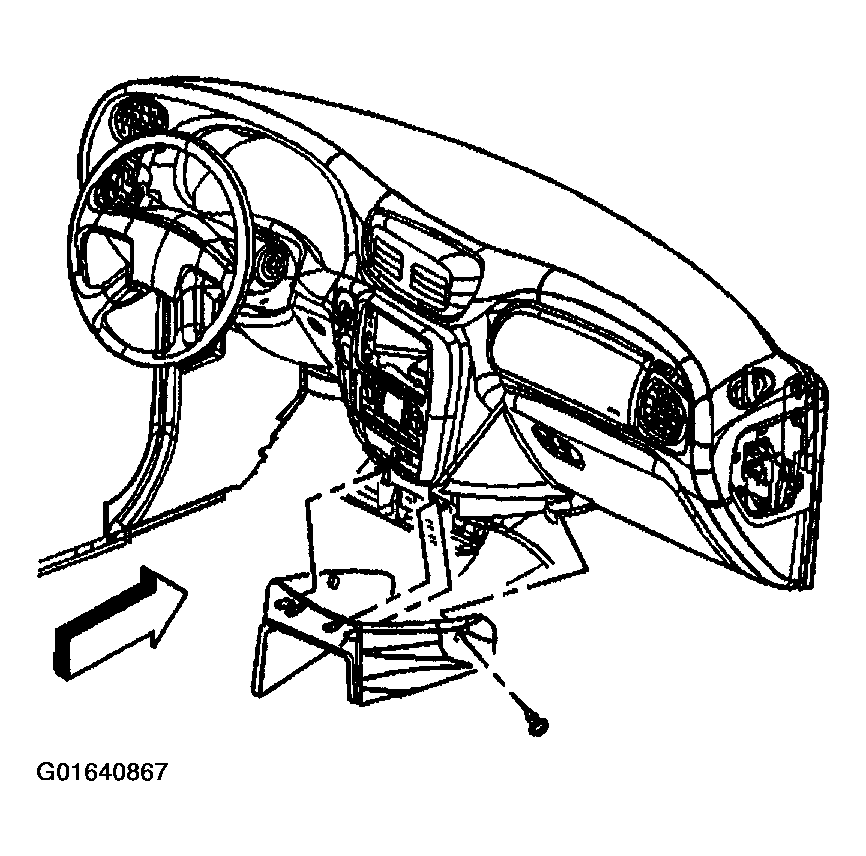

    Fig 1: Removing Closeout Panel From Vehicle (GMC/Chevrolet)
    G01640867Courtesy of GENERAL MOTORS CORP.
