Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the closeout panel to the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the 4 screws that retain the closeout panel to the IP.

    Tighten

    Tighten the screws to 1.9 N.m (17 lb in).

  3. Install the floor console. Refer to CONSOLE REPLACEMENT

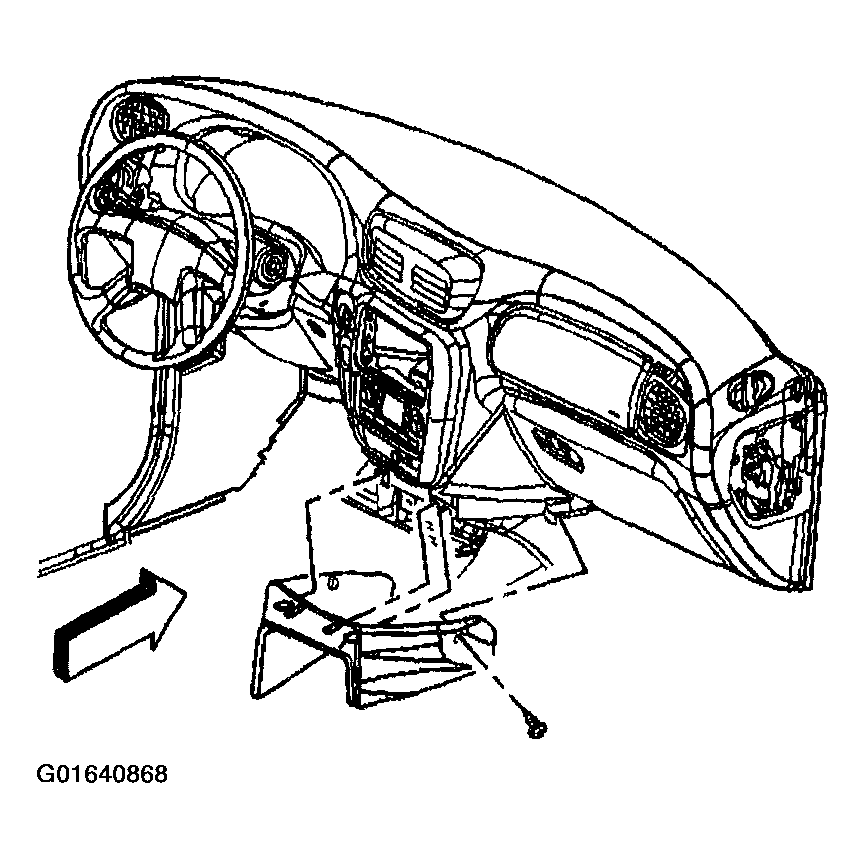

    Fig 1: Installing Closeout Panel To Vehicle (GMC/Chevrolet)
    G01640868Courtesy of GENERAL MOTORS CORP.
