Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the 12 volt power supply or cigar lighter fuse.
  2. Remove the socket by placing one side of the "T" portion of the tool J 42059  into the socket and into the square window tab.
  3. Position the opposite "T" portion of the tool into the opposing square window tab.

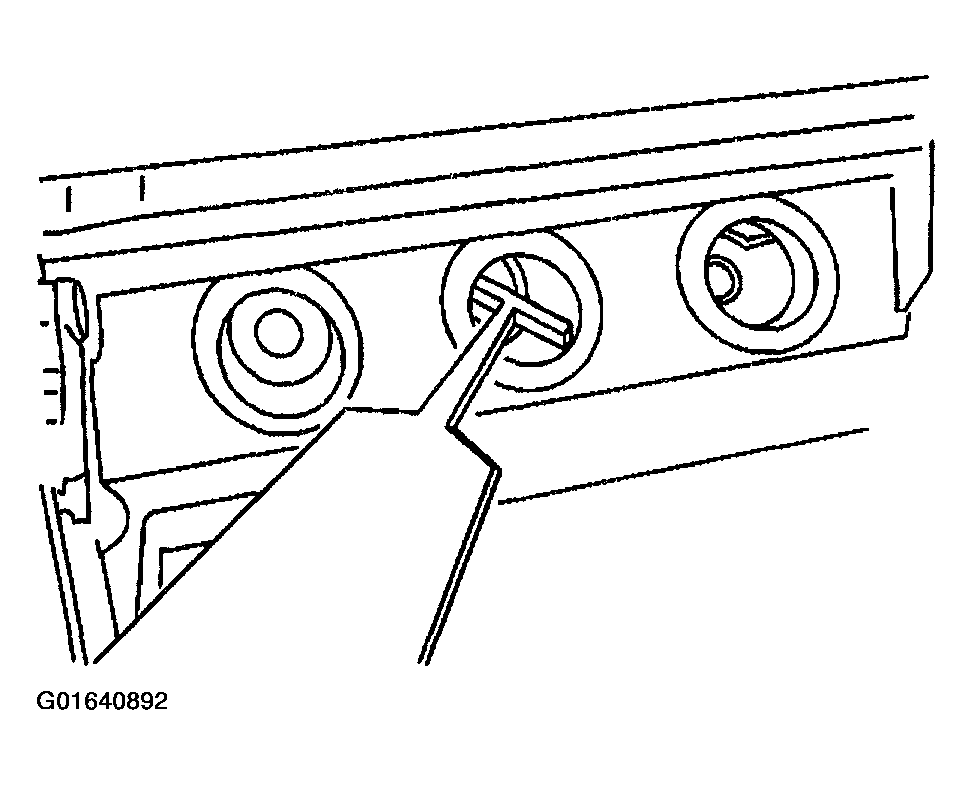

    Fig 1: Inserting T Portion Of Tool Into Square Window
    G01640892Courtesy of GENERAL MOTORS CORP.
  4. Pull the socket straight out of the retaining ring.
  5. Remove the tool from the socket.
    Fig 2: Pulling Socket Out From Retaining Ring
    G01640893Courtesy of GENERAL MOTORS CORP.
  6. Disconnect the electrical connector from the socket.
    Fig 3: Disconnecting Electrical Connector From Socket
    G01640894Courtesy of GENERAL MOTORS CORP.
  7. Using your finger, remove the socket retaining ring by pulling the retaining ring out of the mounting hole.
    Fig 4: Removing Socket Retaining Ring
    G01640895Courtesy of GENERAL MOTORS CORP.
