Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Block the wheels to prevent the vehicle from moving.
  2. Remove the floor shift control knob.
  3. Remove the center console. CONSOLE REPLACEMENT
  4. Disconnect the automatic transmission range selector cable.

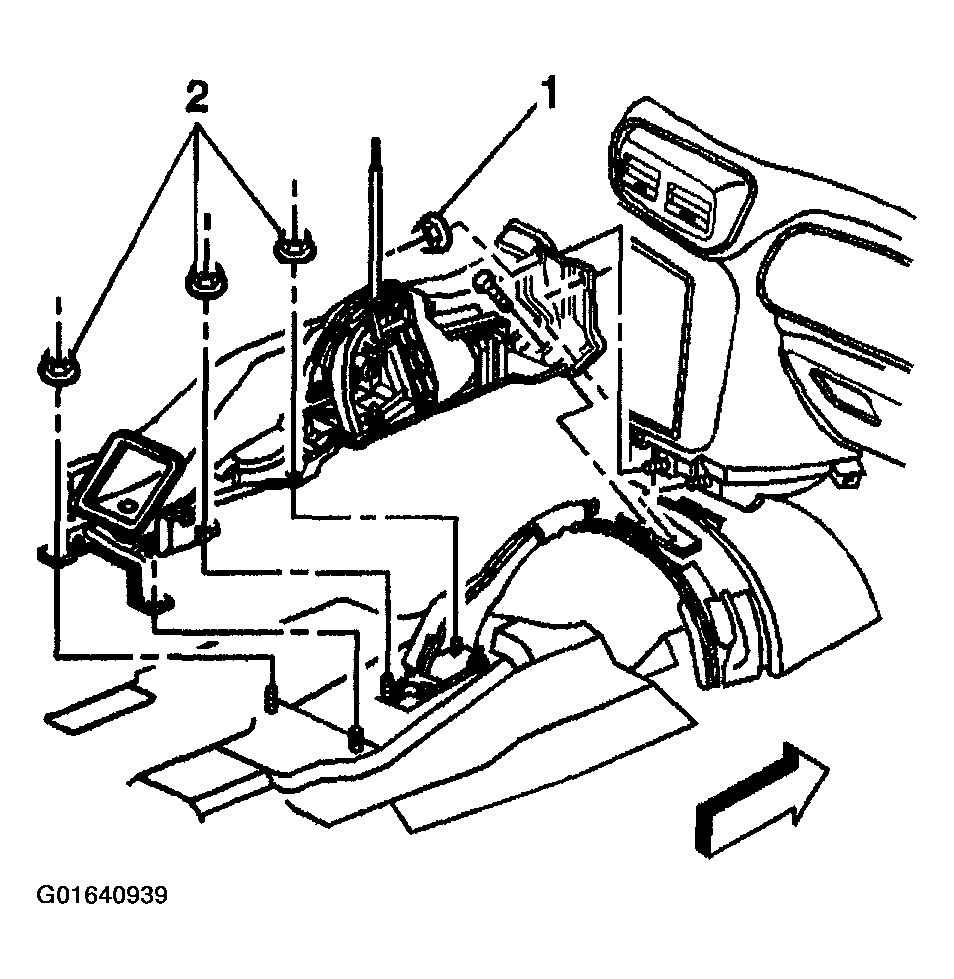

    5. Fig 1: Removing Console Floor Bracket From Vehicle
    G01640939Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the electrical connector from the automatic transmission shift interlock solenoid.
  6. Disconnect the electrical connector from the park brake.
  7. Remove the console bracket from the vehicle, by removing the retaining nuts (1) from the center instrument panel (IP) bracket.
  8. Remove the forward retaining screw, if equipped.
  9. Remove the remaining fasteners from the console bracket.
  10. Remove the console bracket from the vehicle.
  11. Remove the floor shift control.
