Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Tilt the steering wheel to the full down position.
  2. Remove the left closeout/insulator panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT   .
  3. Remove the knee bolster trim panel. Refer to TRIM PANEL REPLACEMENT - KNEE BOLSTER   .
  4. Remove the screws that retain the bezel to the instrument panel.
  5. Remove the bezel from the instrument panel.

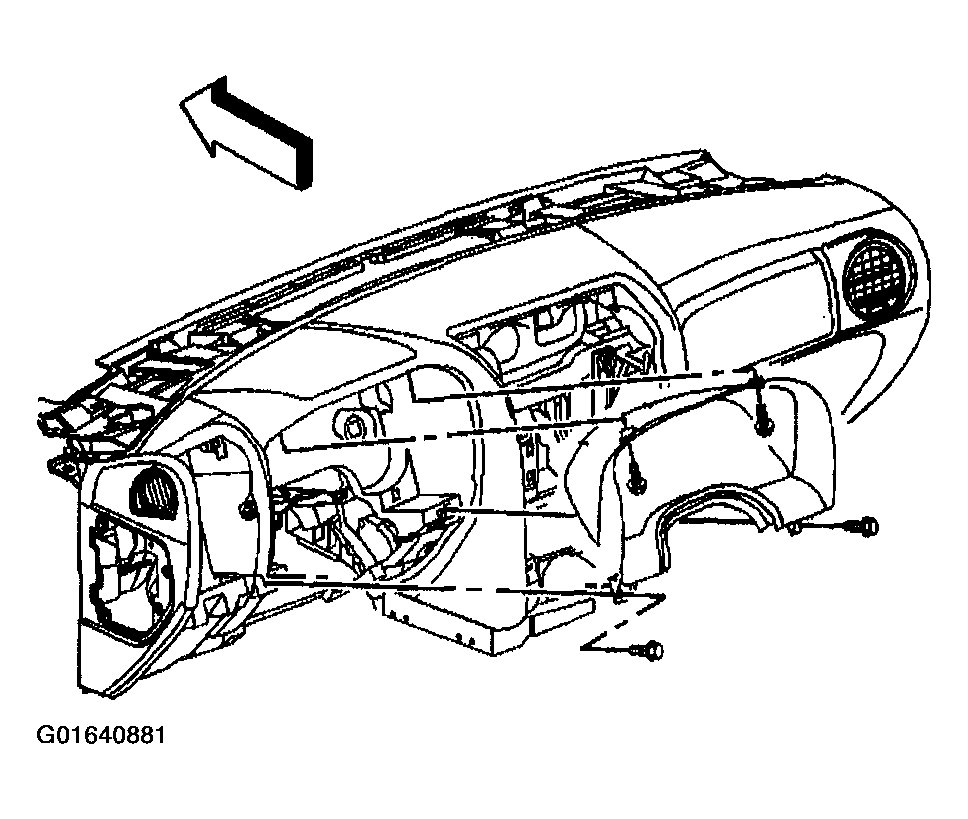

    Fig 1: Removing Bezel From Instrument Panel (GMC/Oldsmobile)
    G01640881Courtesy of GENERAL MOTORS CORP.
