Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bezel to the instrument panel.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the screws that retain the bezel to the instrument panel.

    Tighten

    Tighten the screws to 2.5 N.m (22 lb in).

  3. Install the knee bolster trim panel. Refer to TRIM PANEL REPLACEMENT - KNEE BOLSTER   .
  4. Install the left closeout/insulator panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT   .

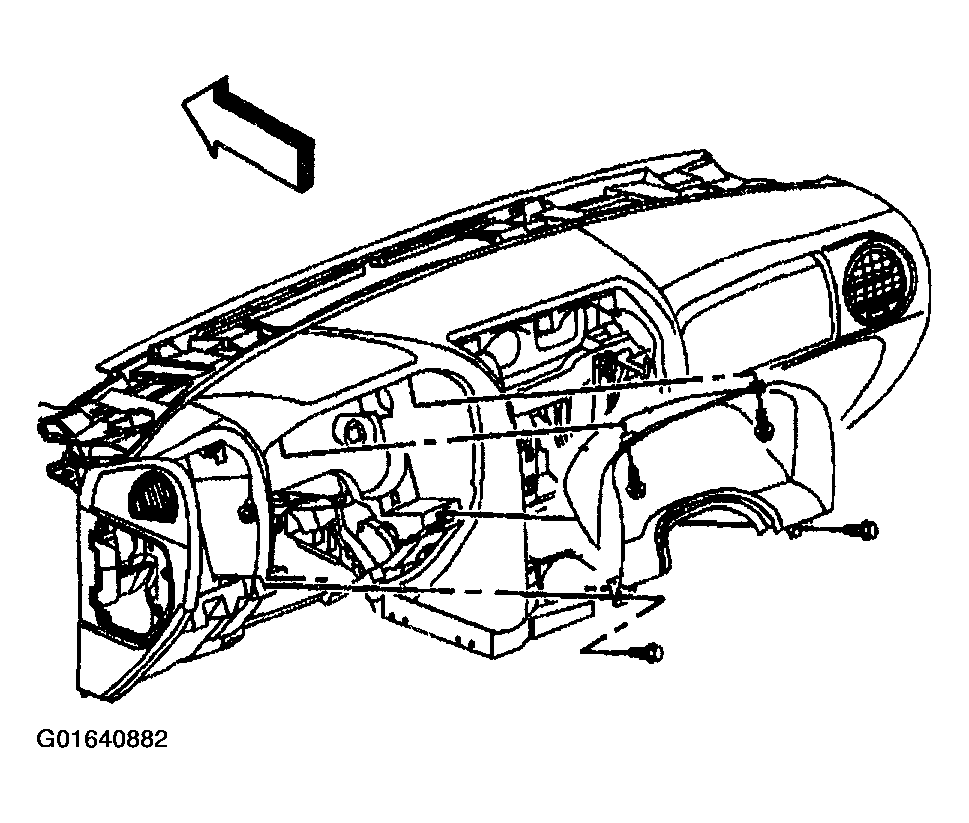

    Fig 1: Installing Bezel To Instrument Panel (GMC/Oldsmobile)
    G01640882Courtesy of GENERAL MOTORS CORP.
