Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Tilt the steering wheel to the full down position.
  2. Remove the left closeout/insulator panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT   .
  3. Remove the knee bolster trim panel. Refer to TRIM PANEL REPLACEMENT - KNEE BOLSTER   .
  4. Remove the screws retaining the bezel to the instrument panel.
  5. Remove the bezel from the instrument panel.
  6. If equipped, remove the transfer case shift control switch. Refer to TRANSFER CASE SHIFT CONTROL SWITCH REPLACEMENT (GMC)  or TRANSFER CASE SHIFT CONTROL SWITCH REPLACEMENT (CHEVROLET)  in Transfer Case.
  7. Remove the rear wiper washer switch. Refer to WIPER/WASHER SWITCH REPLACEMENT - REAR  in Wipers Washer Systems.
  8. If equipped, remove the cigar lighter or 12-volt power supply outlets. Refer to CIGAR LIGHTER OR 12-VOLT POWER SUPPLY REPLACEMENT   .
  9. Remove the bezel from the vehicle.

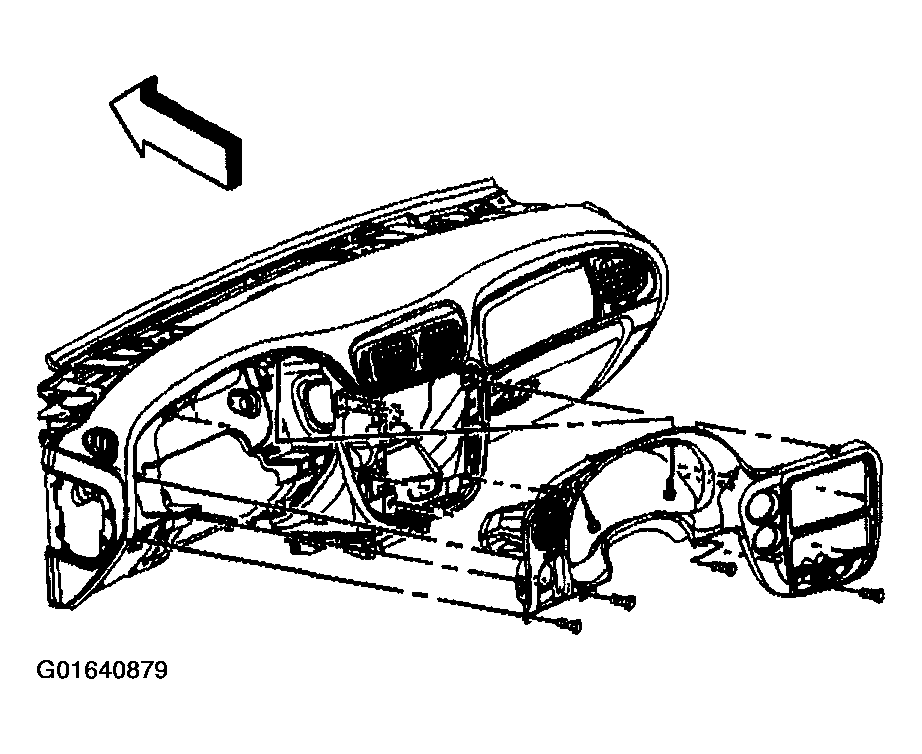

    Fig 1: Removing Bezel From Instrument Panel (Chevrolet)
    G01640879Courtesy of GENERAL MOTORS CORP.
