Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. If equipped, install the cigar lighter or 12-volt power supply outlets. Refer to CIGAR LIGHTER OR 12-VOLT POWER SUPPLY REPLACEMENT   .
  2. Install the rear wiper washer switch. Refer to WIPER/WASHER SWITCH REPLACEMENT - REAR  in Wipers Washer Systems.
  3. If equipped, install the transfer case shift control switch. Refer to TRANSFER CASE SHIFT CONTROL SWITCH REPLACEMENT (GMC)  or TRANSFER CASE SHIFT CONTROL SWITCH REPLACEMENT (CHEVROLET)  in Transfer Case.
  4. Install the bezel to the instrument panel.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  5. Install the screws retaining the bezel to the instrument panel.

    Tighten

    Tighten the screws to 2.5 N.m (22 lb in).

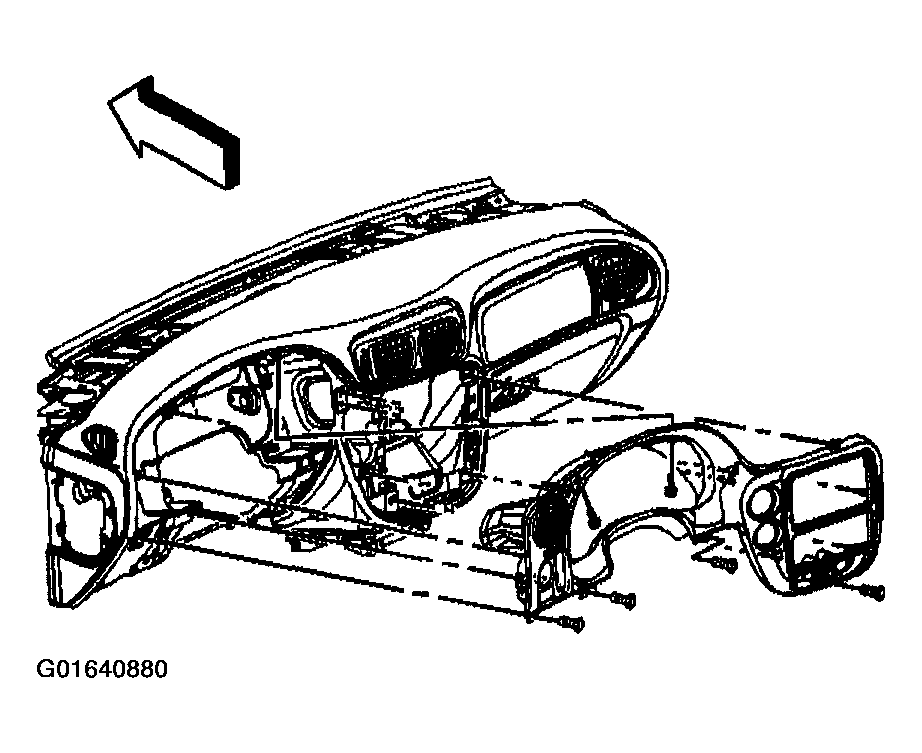

    Fig 1: Installing Bezel To Instrument Panel (Chevrolet)
    G01640880Courtesy of GENERAL MOTORS CORP.
  6. Install the knee bolster trim panel. Refer to TRIM PANEL REPLACEMENT - KNEE BOLSTER   .
  7. Install the left closeout/insulator panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT   .
