Odometer Trip/Reset Switch Inoperative

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

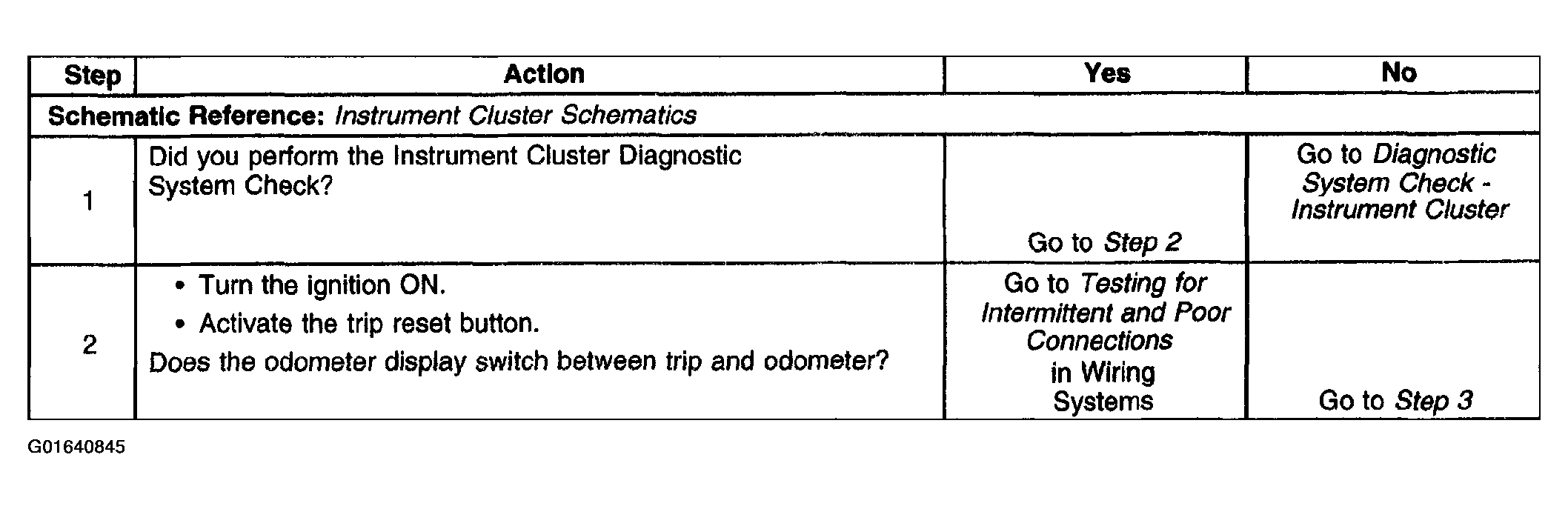

Fig 1: Diagnostic System Check Chart - Odometer Trip/Reset Switch Inoperative (1 Of 2)
G01640845Courtesy of GENERAL MOTORS CORP.

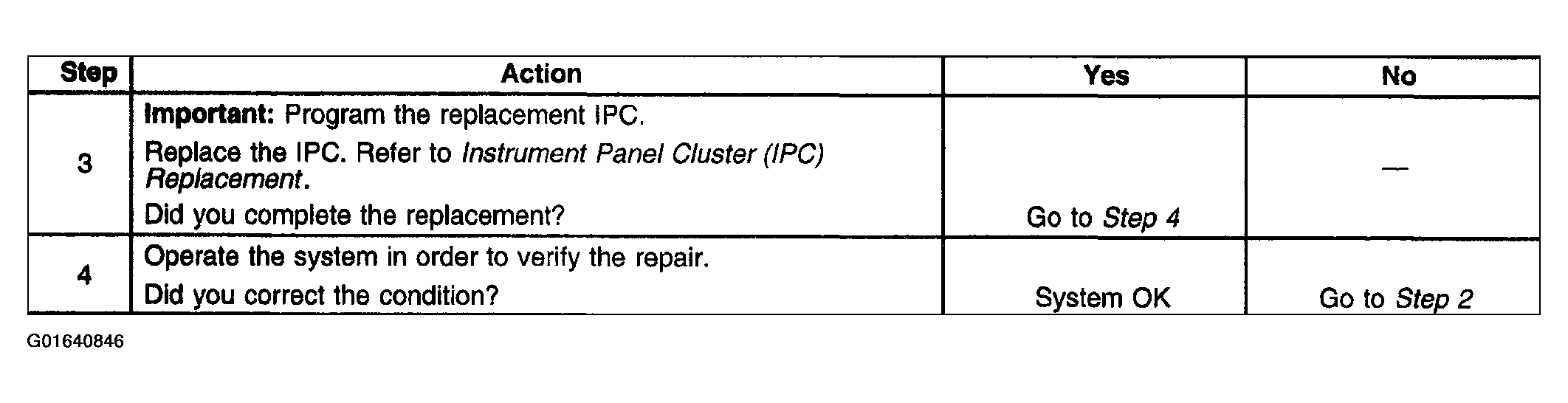

Fig 2: Diagnostic System Check Chart - Odometer Trip/Reset Switch Inoperative (2 Of 2)
G01640846Courtesy of GENERAL MOTORS CORP.
