Engine Oil Pressure Gage Inaccurate or Inoperative

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

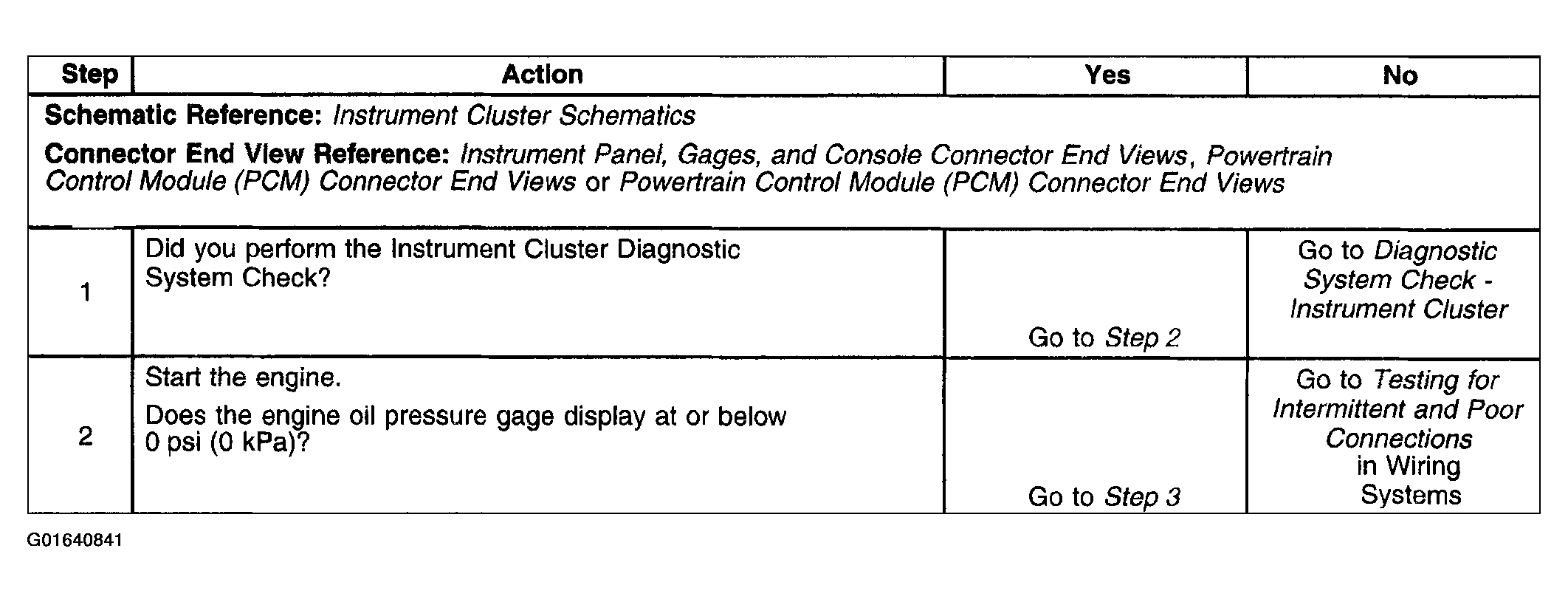

Fig 1: Diagnostic System Check Chart - Engine Oil Pressure Gage Inaccurate Or Inoperative (1 Of 2)
G01640841Courtesy of GENERAL MOTORS CORP.

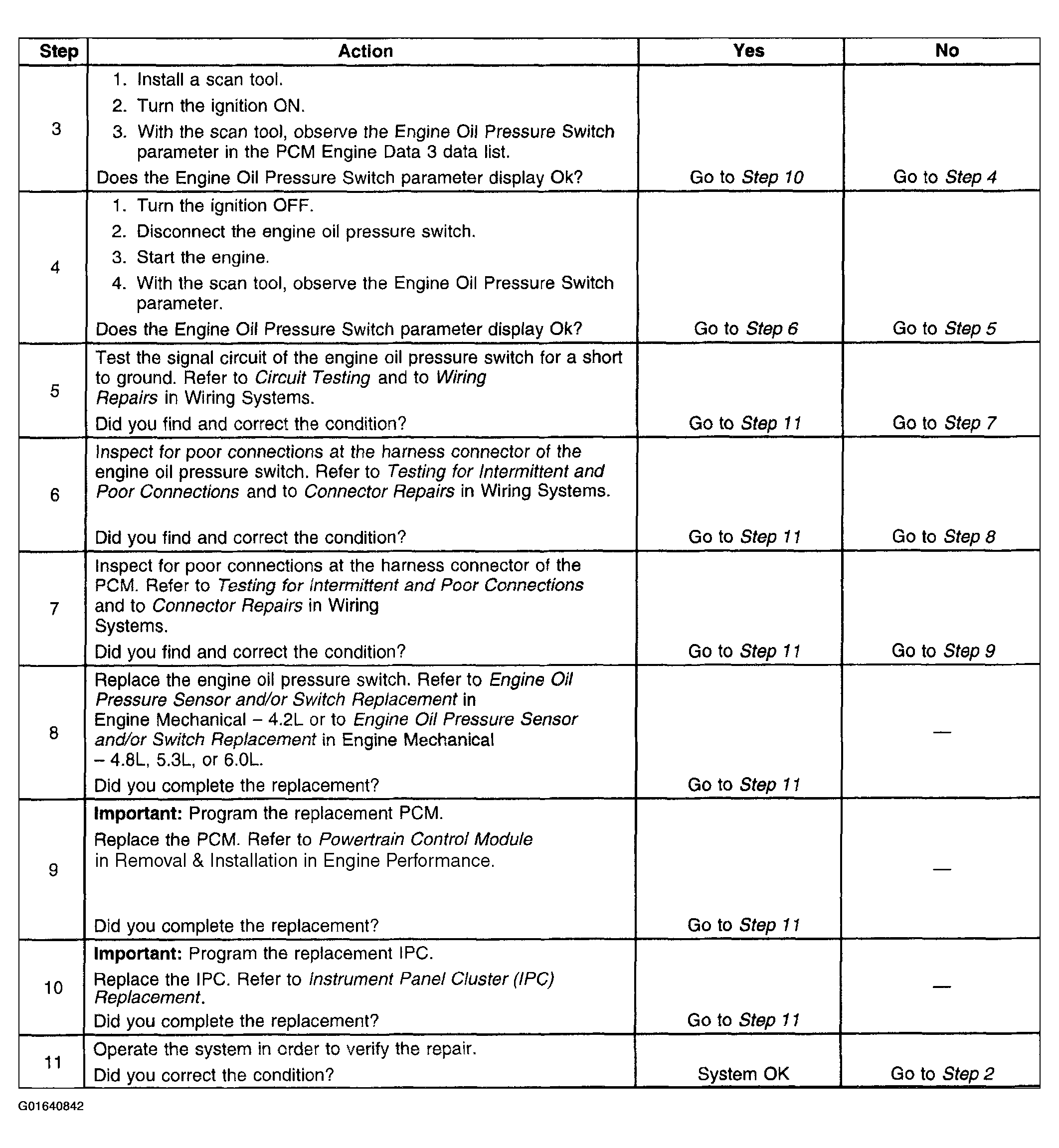

Fig 2: Diagnostic System Check Chart - Engine Oil Pressure Gage Inaccurate Or Inoperative (2 Of 2)
G01640842Courtesy of GENERAL MOTORS CORP.
