Instrument Panel, Gages, and Console Connector End Views

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

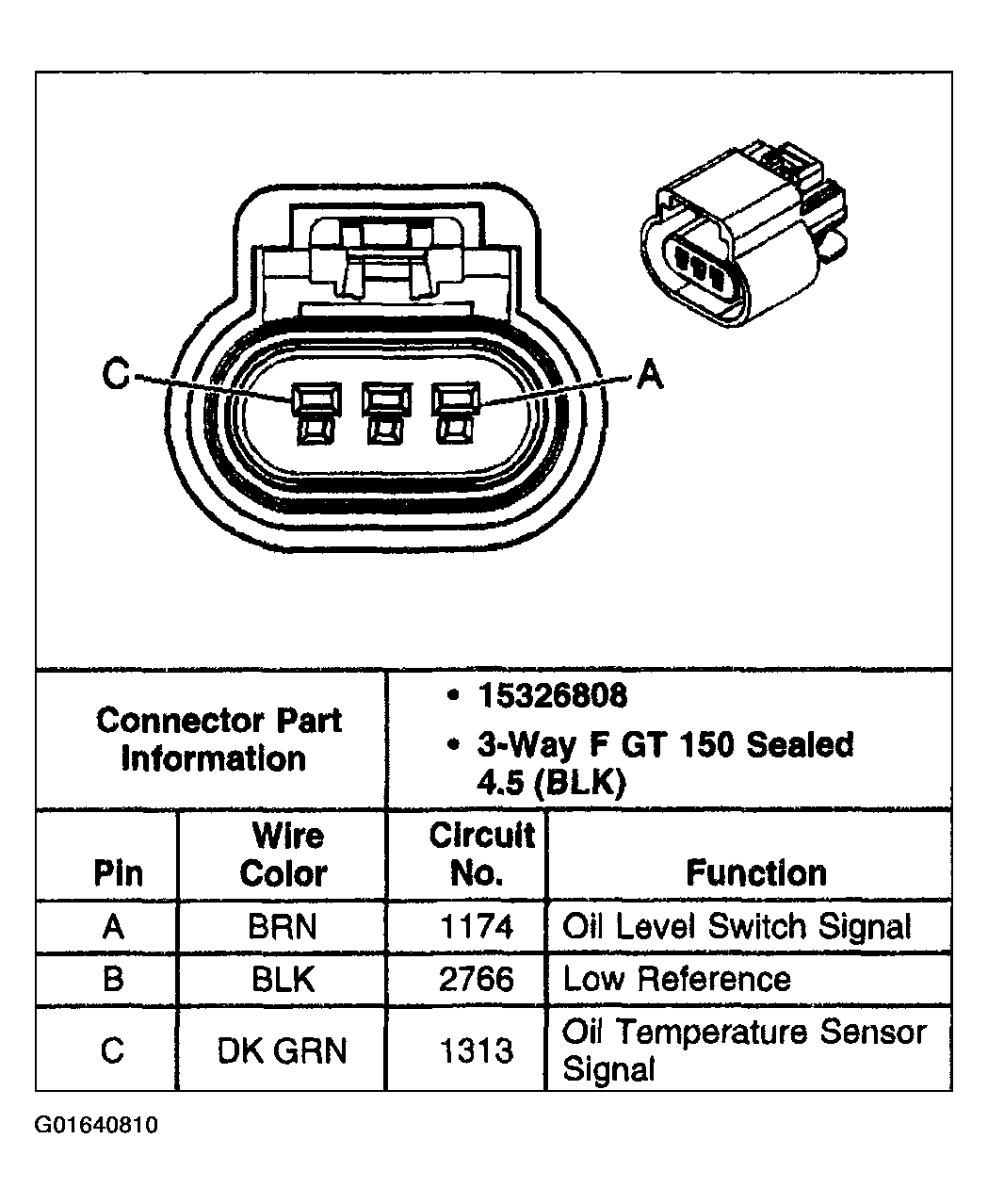

Fig 1: Engine Oil Level and Temperature Sensor - 4.2L

Courtesy of GENERAL MOTORS CORP.

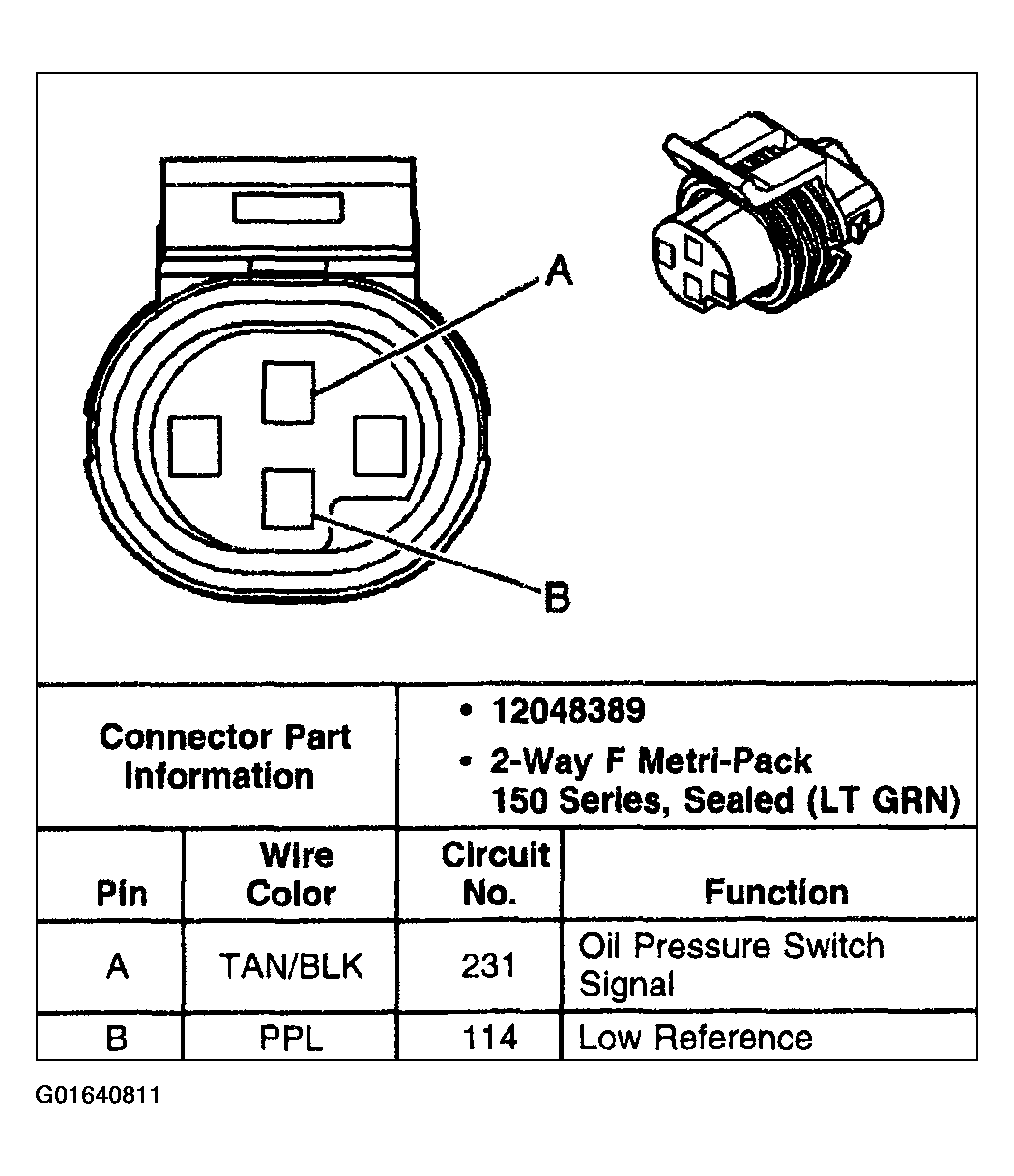

Fig 2: Engine Oil Pressure (EOP) Switch - 4.2L

Courtesy of GENERAL MOTORS CORP.

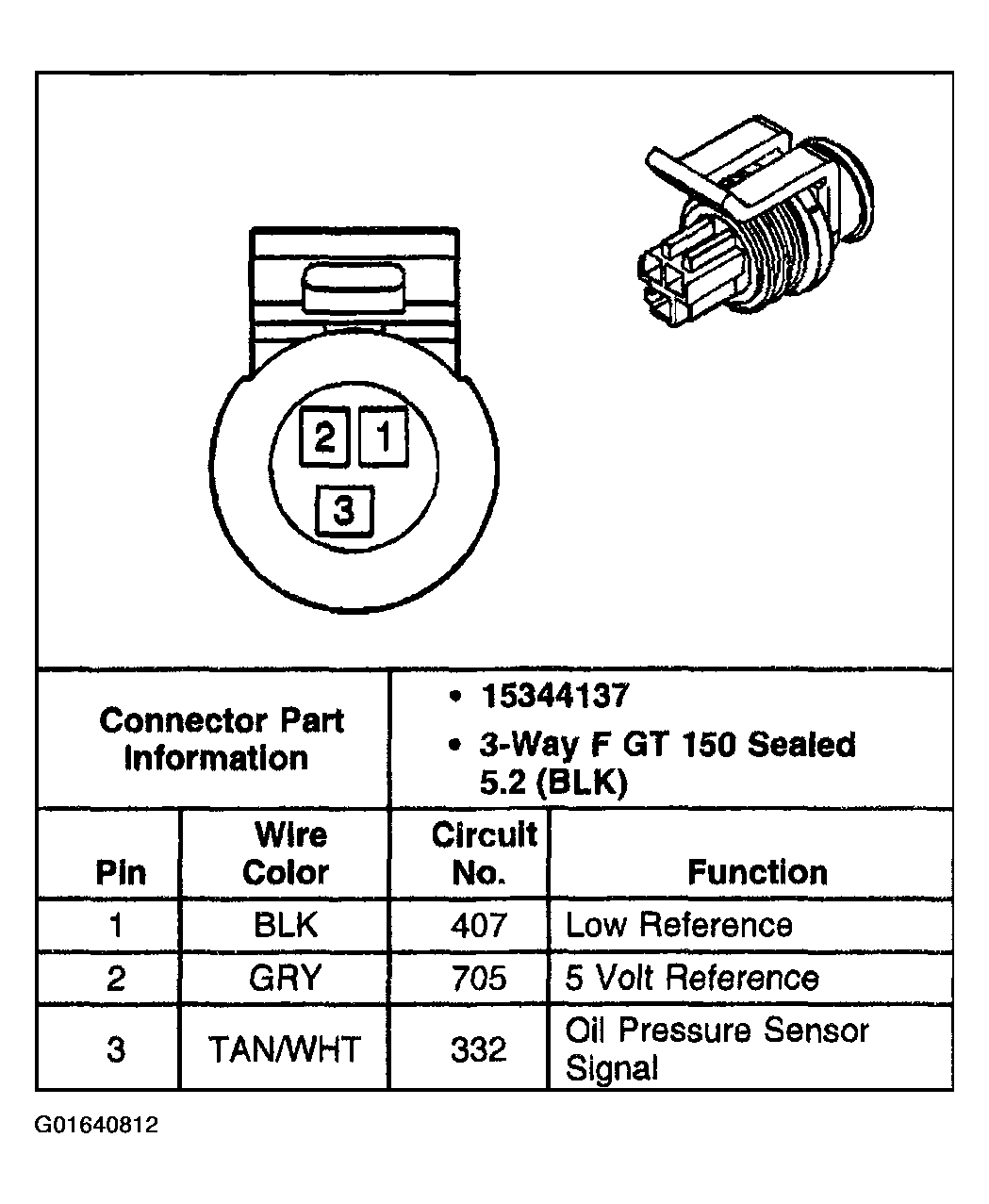

Fig 3: Engine Oil Pressure (EOP) Sensor - 5.3L

Courtesy of GENERAL MOTORS CORP.

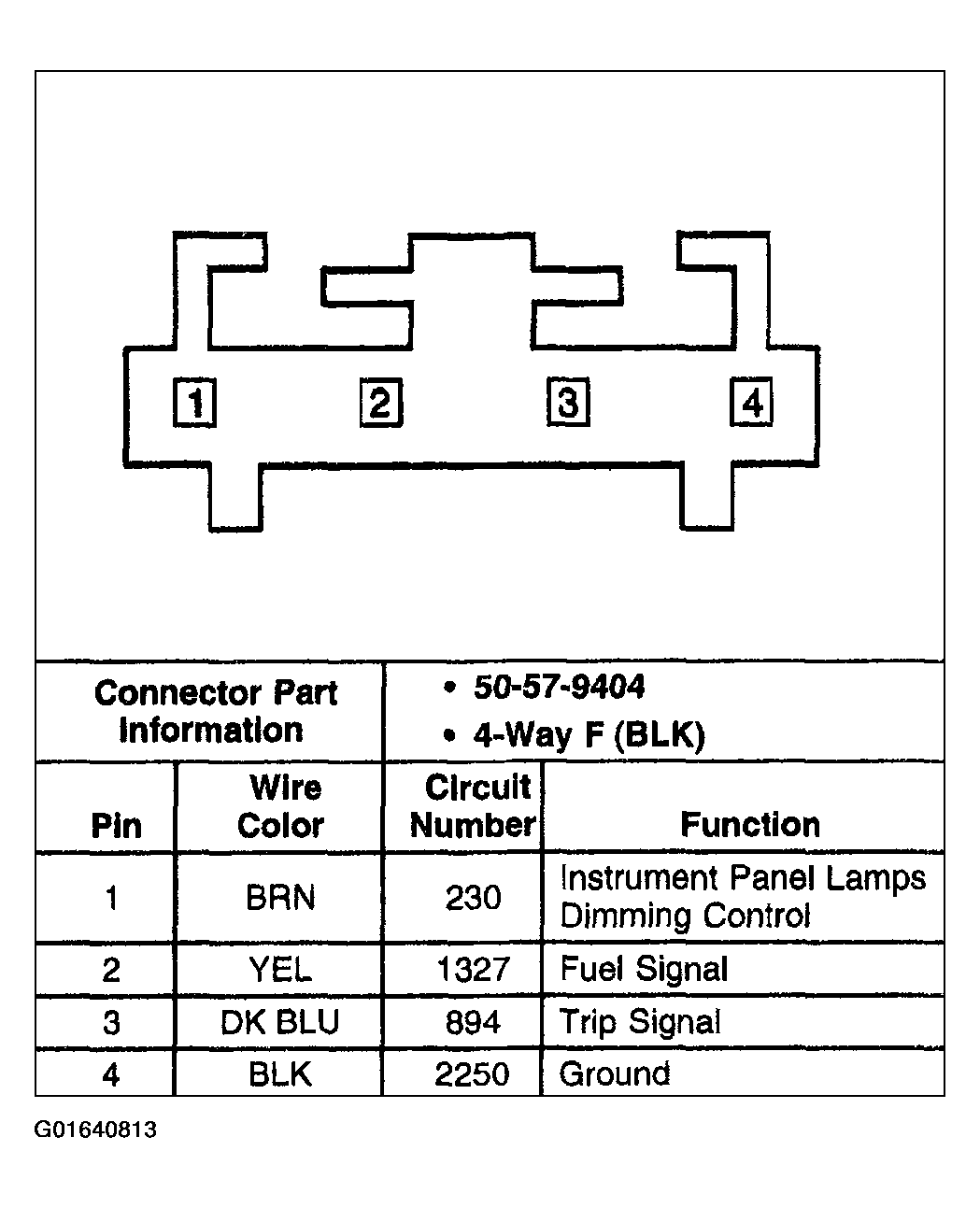

Fig 4: Fuel/Trip Switch

Courtesy of GENERAL MOTORS CORP.

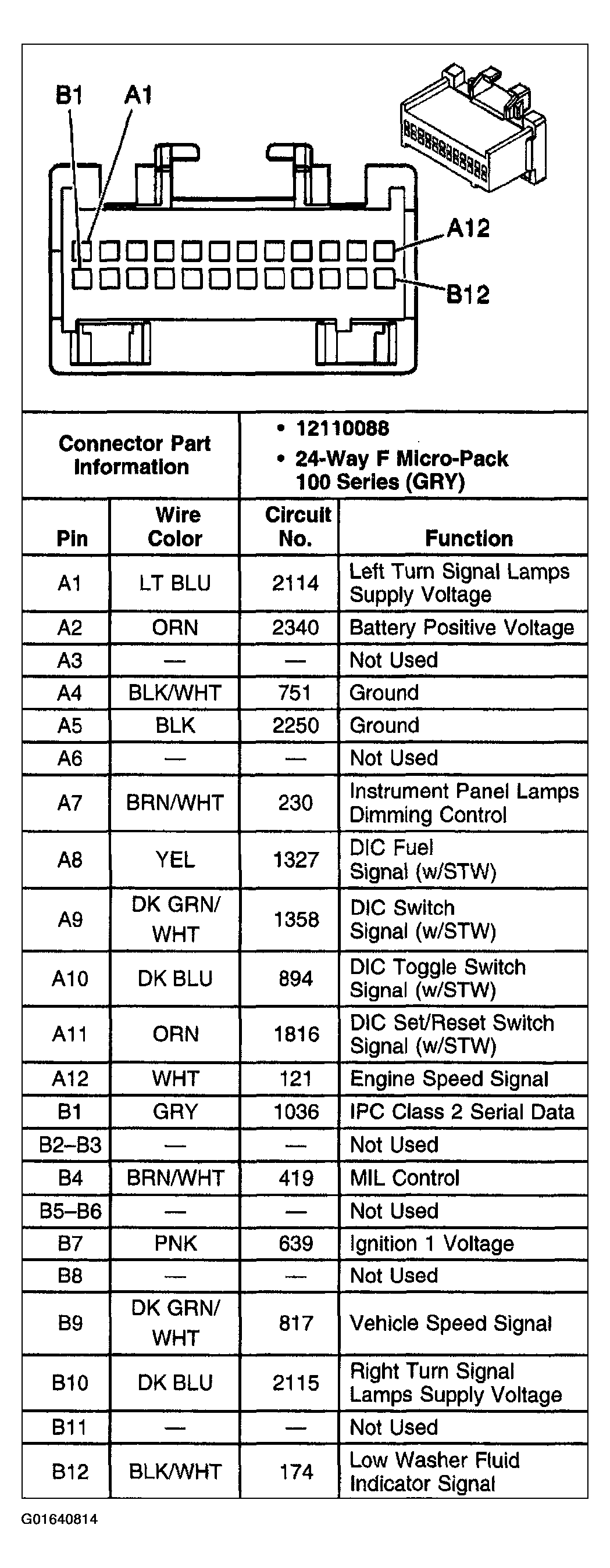

Fig 5: Instrument Panel Cluster (IPC)

Courtesy of GENERAL MOTORS CORP.

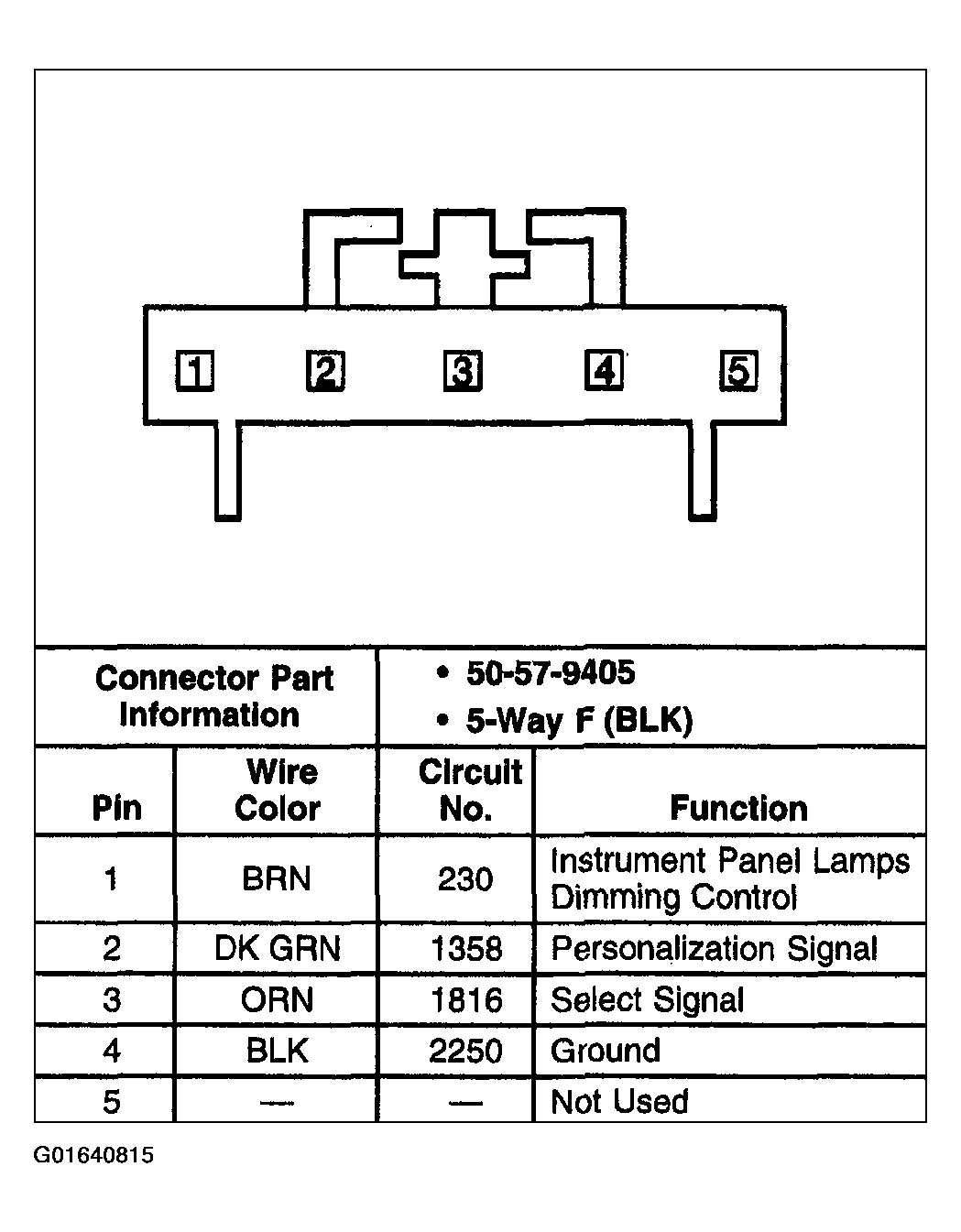

Fig 6: Select/Personalization Switch

Courtesy of GENERAL MOTORS CORP.
