Instrument Panel, Gages, and Console Component Views

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

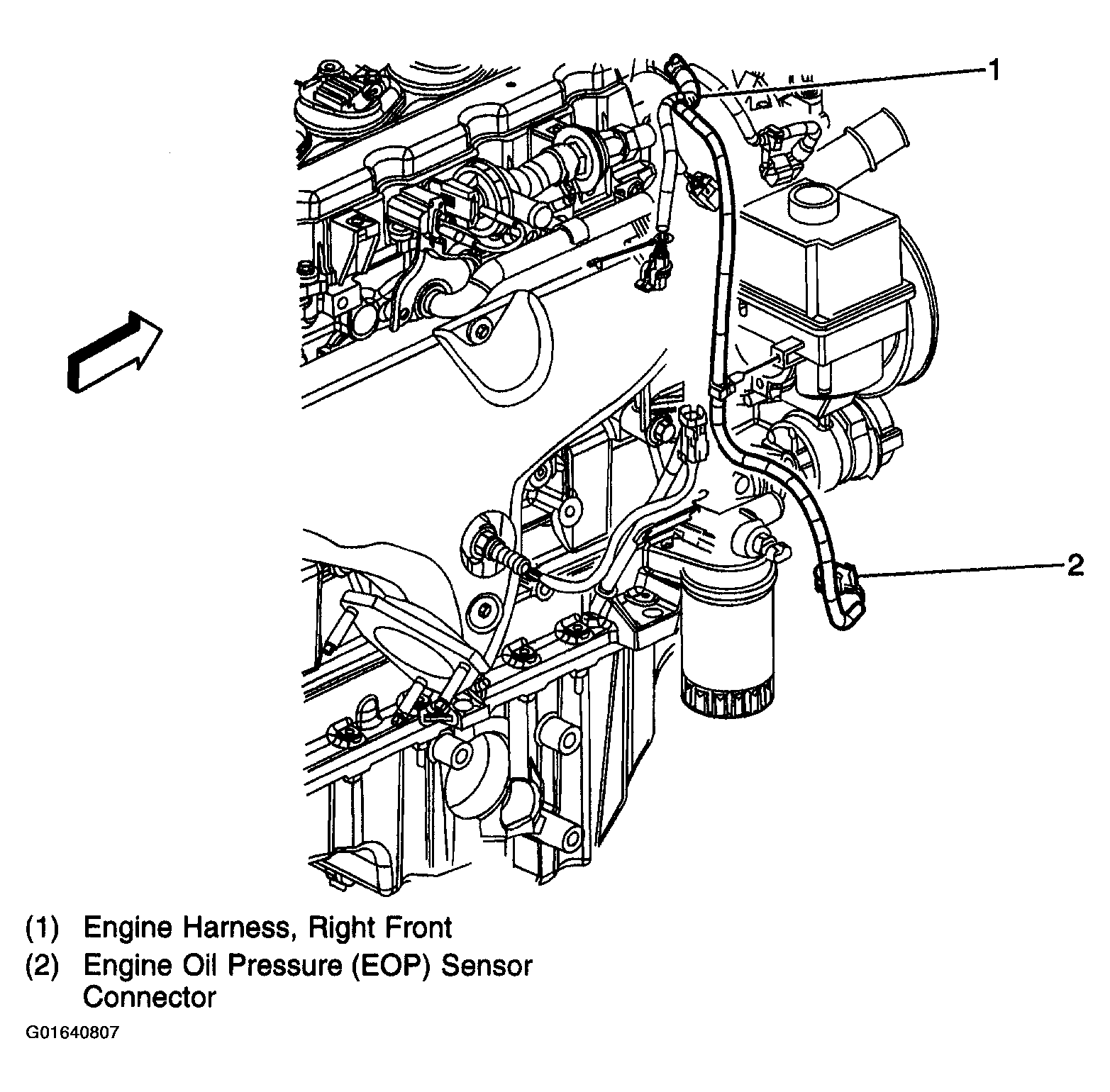

Fig 1: Engine, Right Front (Six Cylinder Engine, 4.2L)

Courtesy of GENERAL MOTORS CORP.

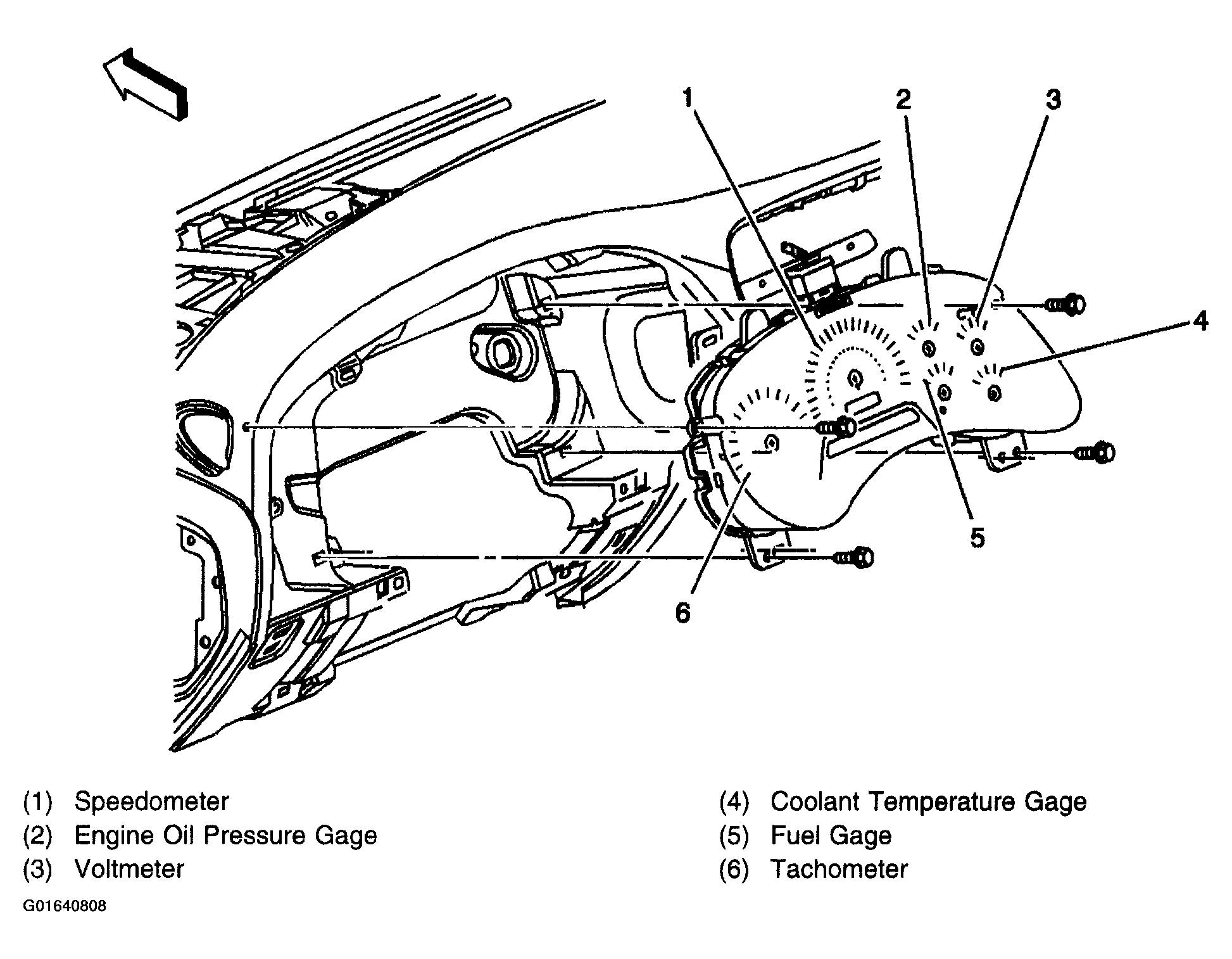

Fig 2: Identifying Instrument Panel Cluster Components

Courtesy of GENERAL MOTORS CORP.

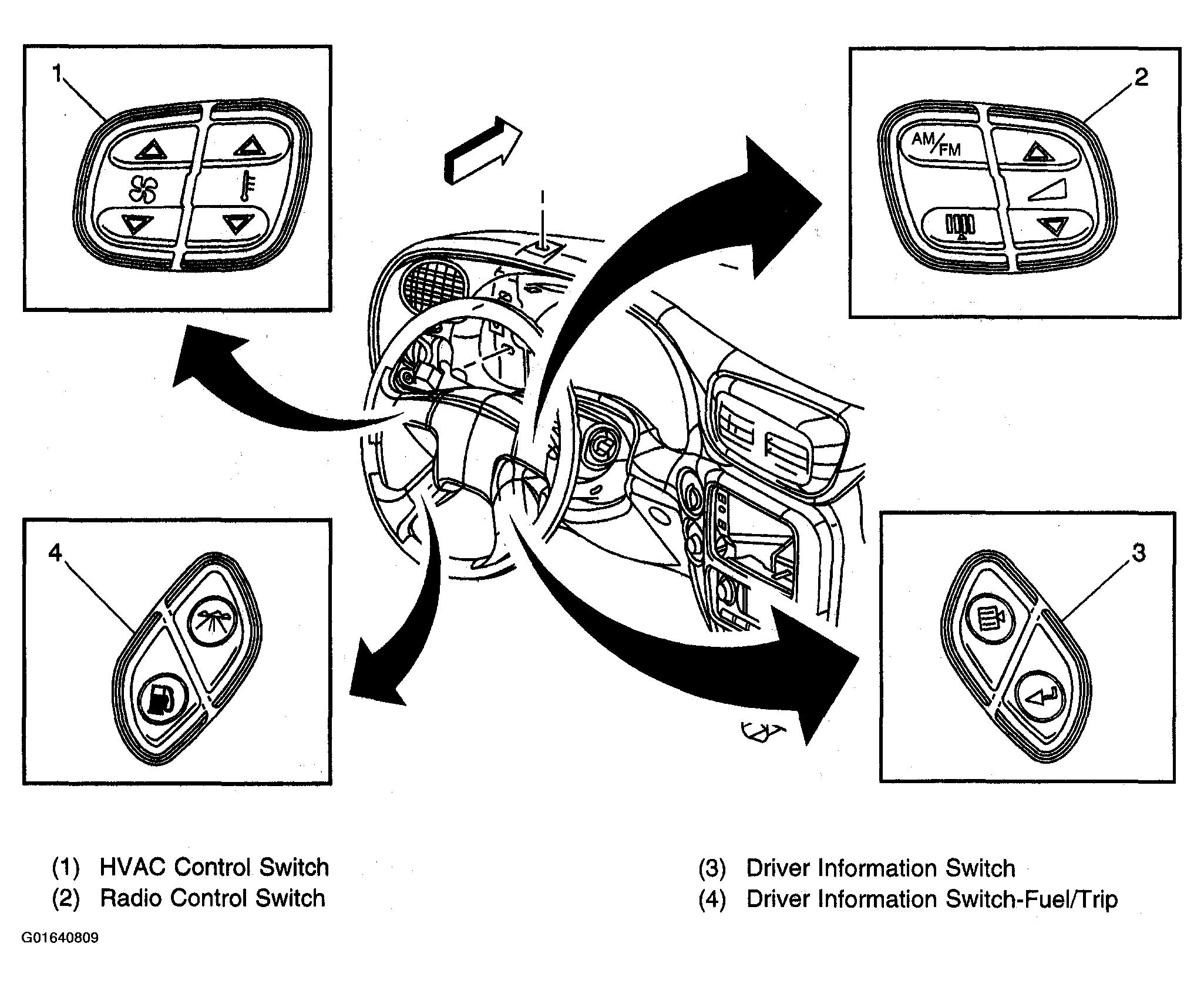

Fig 3: Locating Steering Wheel Controls Components

Courtesy of GENERAL MOTORS CORP.
