Conditions for Clearing the DTC: B1440

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

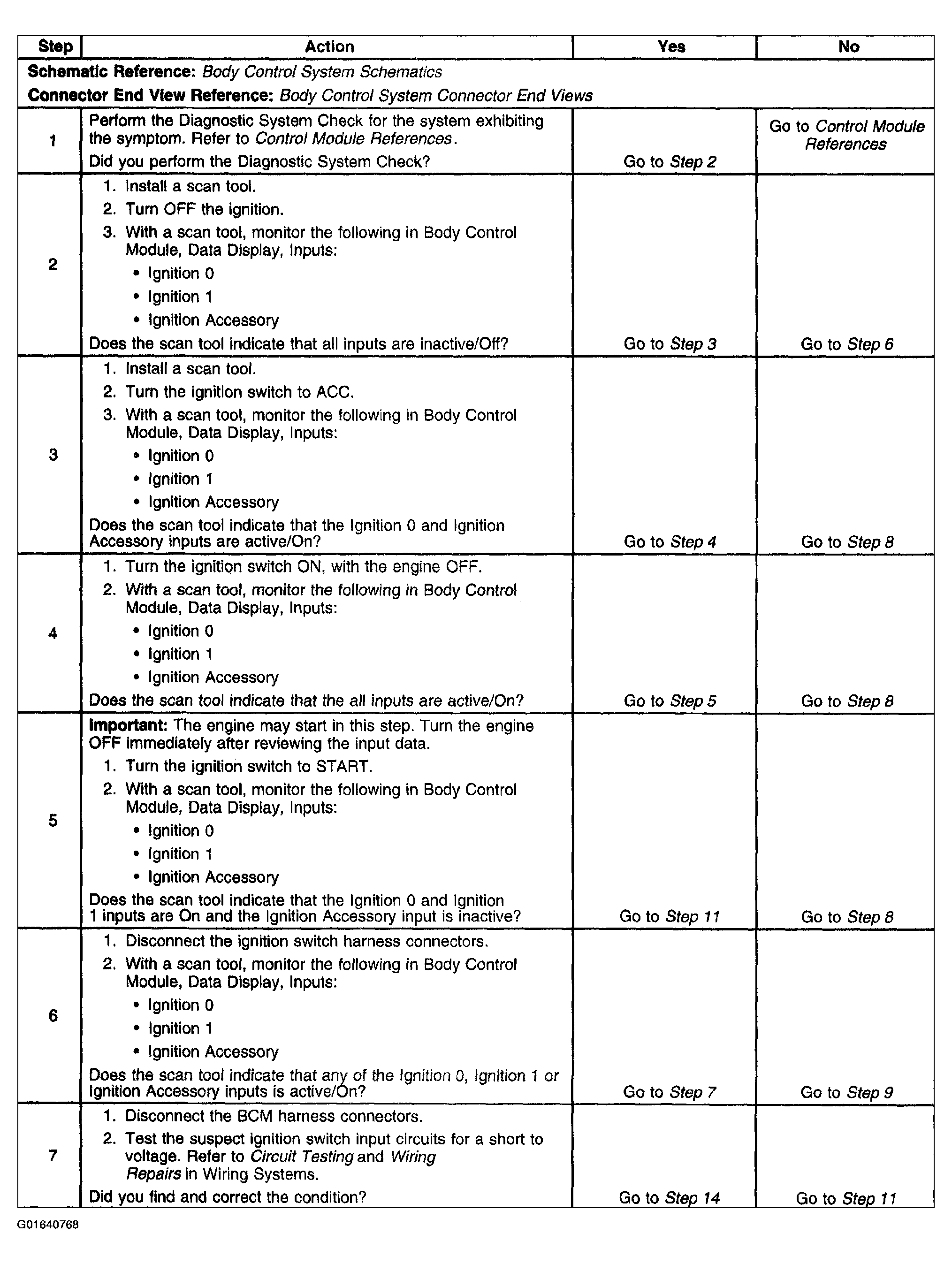

Fig 1: DTC B1440 - Diagnostic Chart (1 Of 2)
G01640768Courtesy of GENERAL MOTORS CORP.

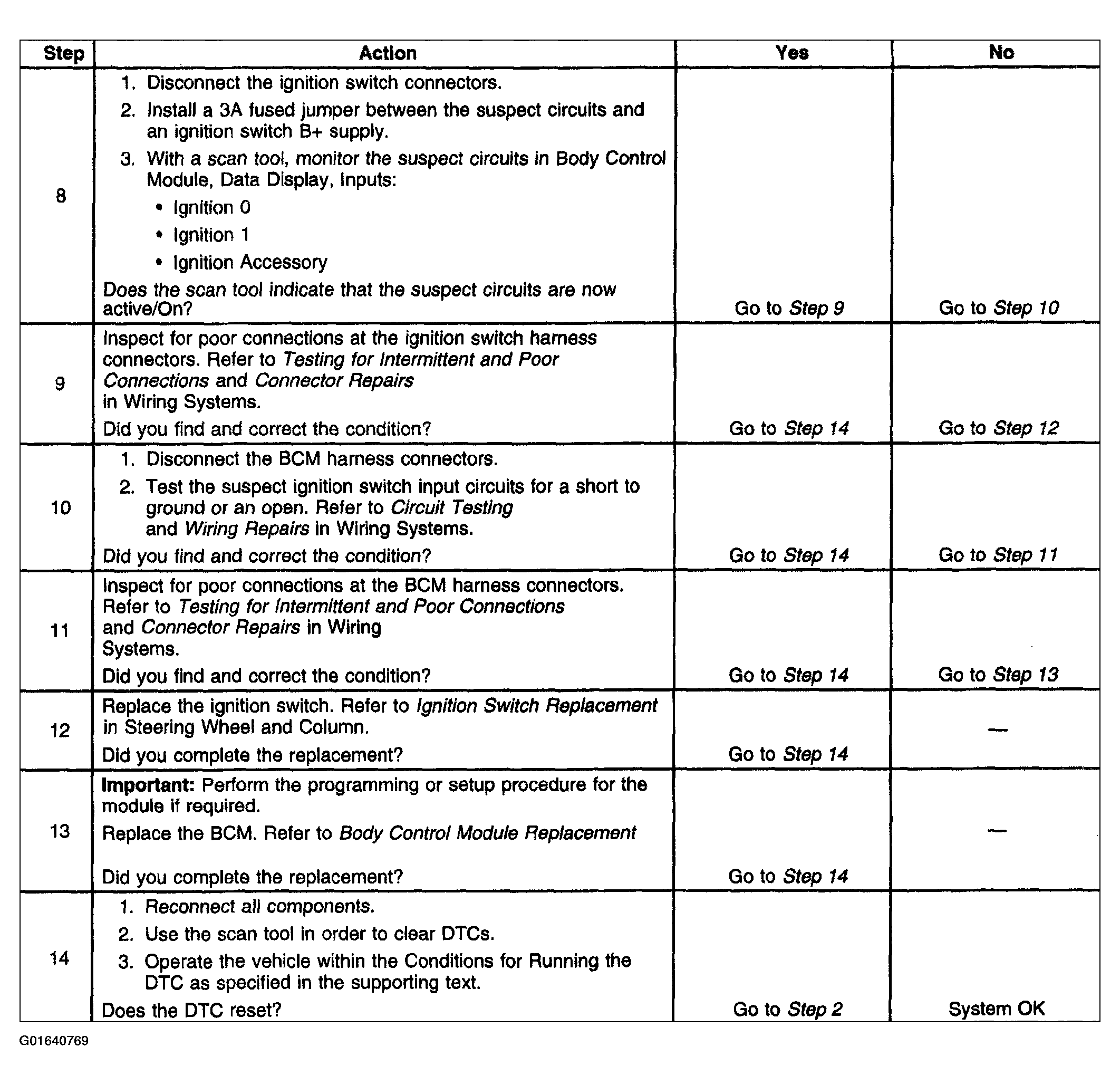

Fig 2: DTC B1440 - Diagnostic Chart (2 Of 2)
G01640769Courtesy of GENERAL MOTORS CORP.
