Diagnostic Aids: B1007

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

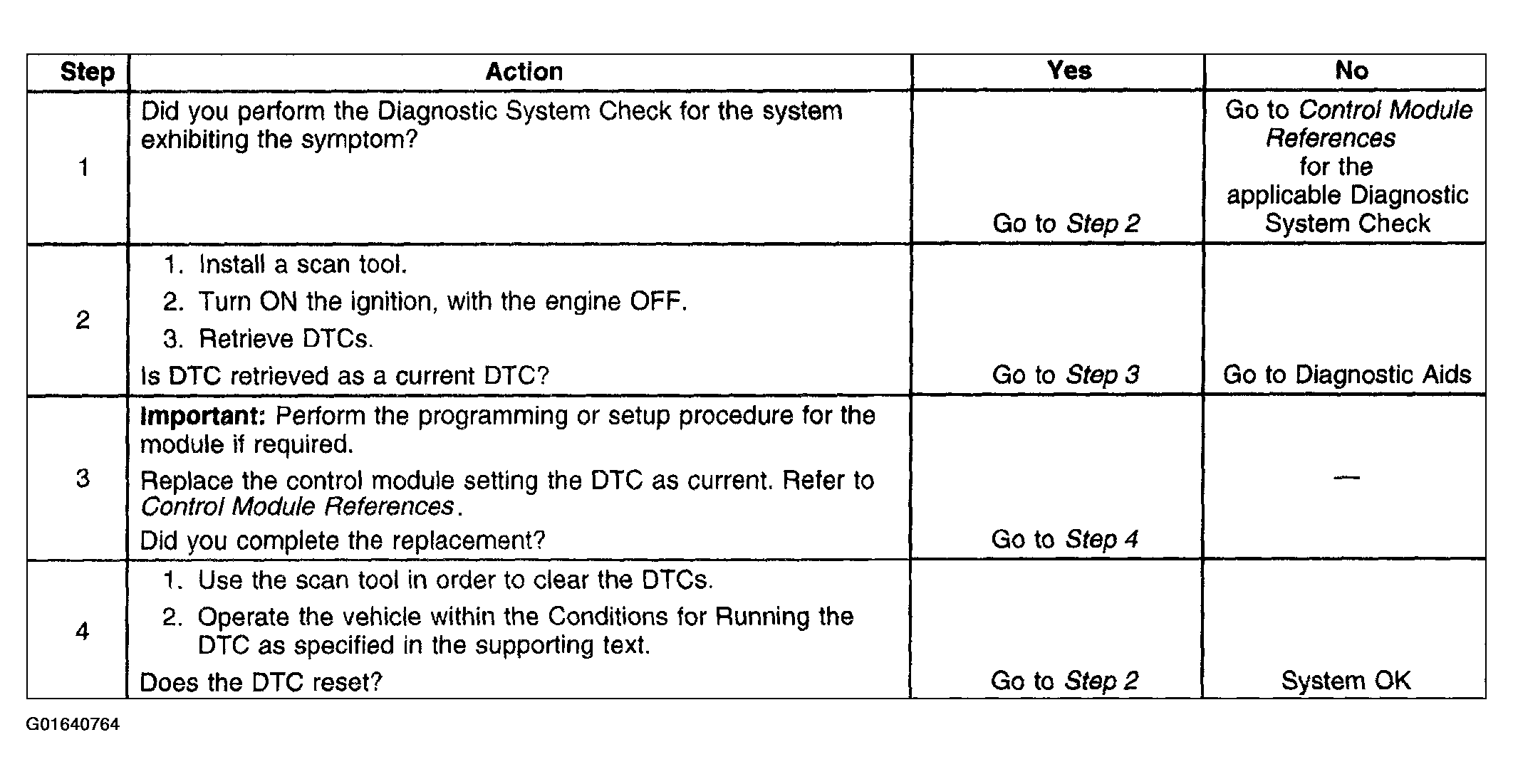

Fig 1: DTC B1007 - Diagnostic Chart
G01640764Courtesy of GENERAL MOTORS CORP.
