Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Remove the video display assembly. Refer to VIDEO DISPLAY REPLACEMENT .
Remove the two rear overhead console carrier screws (1).

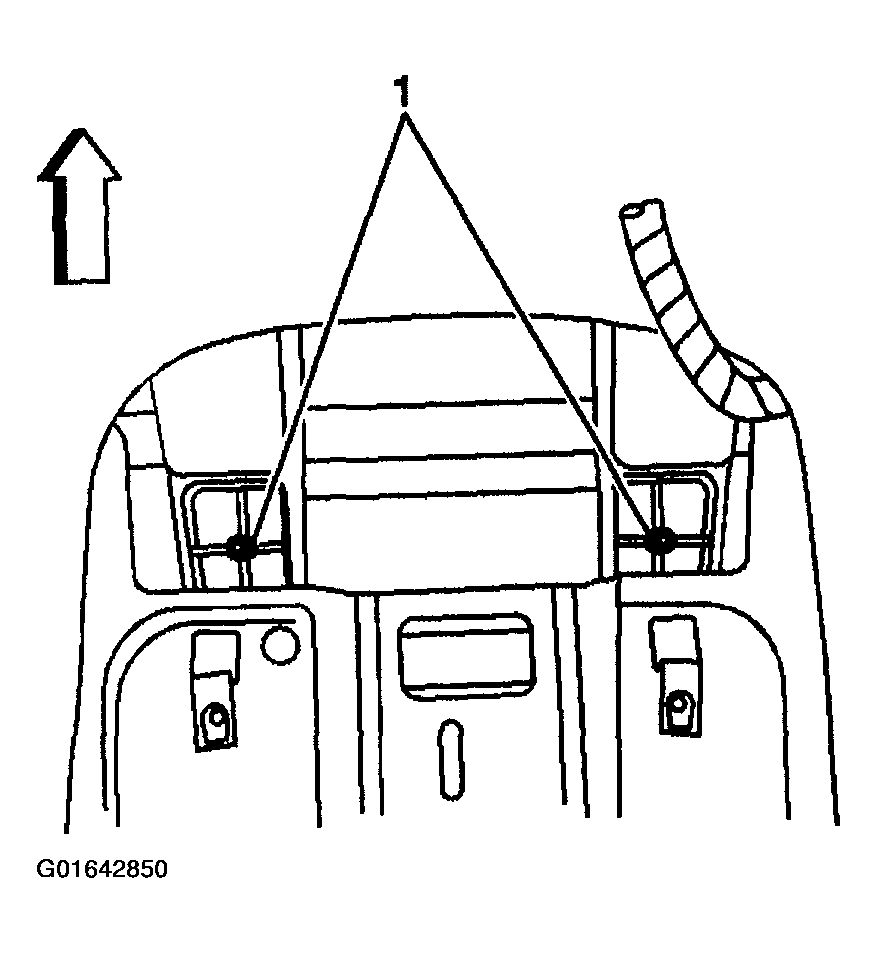

Fig 1: Removing Two Rear Overhead Console Carrier Screws
Courtesy of GENERAL MOTORS CORP.
Remove the front bracket retaining bolts.

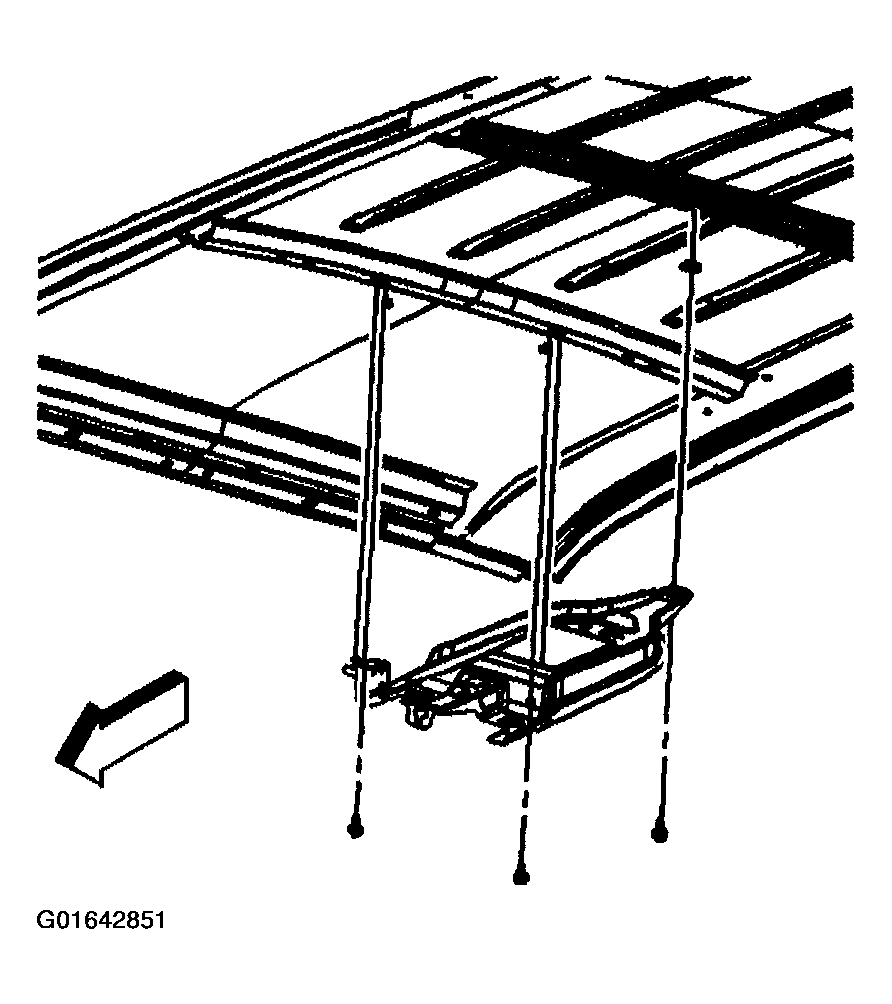

Fig 2: Removing Front Bracket Retaining Bolts
Courtesy of GENERAL MOTORS CORP.
Carefully pull down on the rearward edge of the headliner in order to expose the rear bracket retaining bolt.
Remove the rear retaining bolt.
Carefully remove the bracket from the vehicle through the headliner opening.

Fig 3: Removing Rear Retaining Bolt
Courtesy of GENERAL MOTORS CORP.
