Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Install the speaker to the door.
NOTE: Refer to Fastener Notice in Cautions and Notices.
Install the 3 speaker retaining bolts.
Tighten

Tighten the bolts to 2 N.m (18 lb in).
Connect the speaker electrical connector.
Install the water deflector. Refer to WATER DEFLECTOR REPLACEMENT - REAR DOOR in Doors.
Install the rear door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE REAR DOOR in Doors.

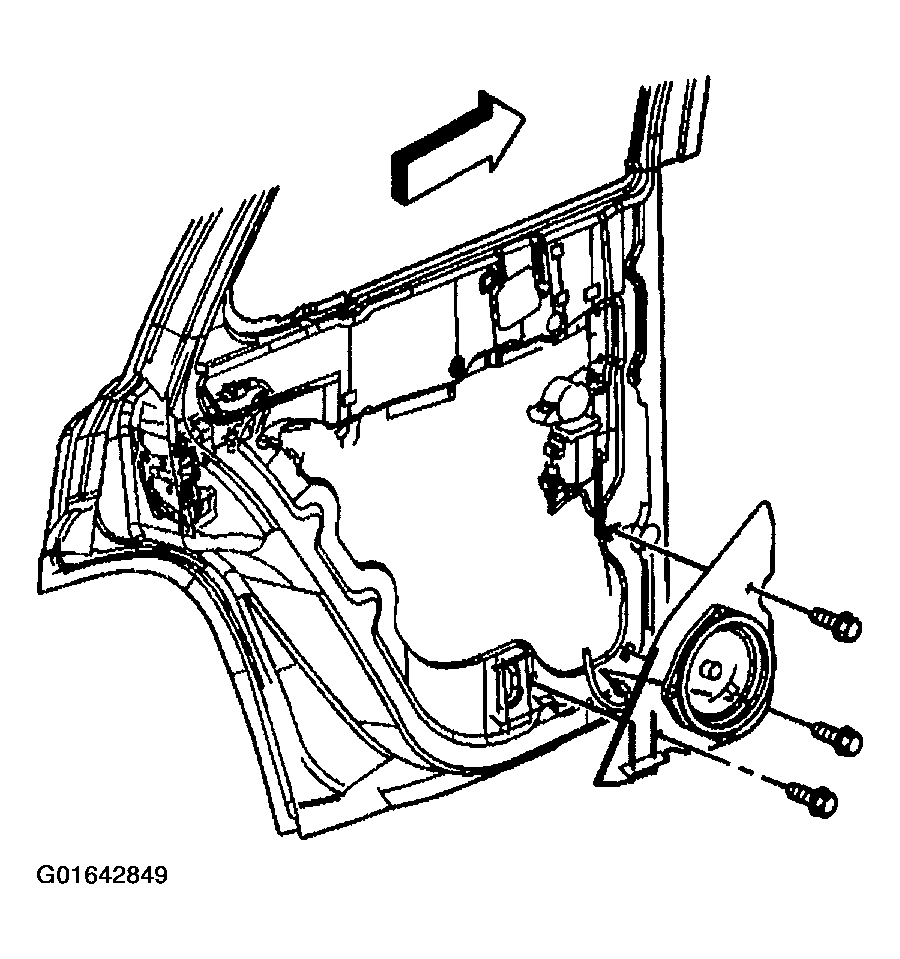

Fig 1: Installing Speaker To Door (Rear Door)
Courtesy of GENERAL MOTORS CORP.
