Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trim pad. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER  in Instrument Panel, Gages and Console.

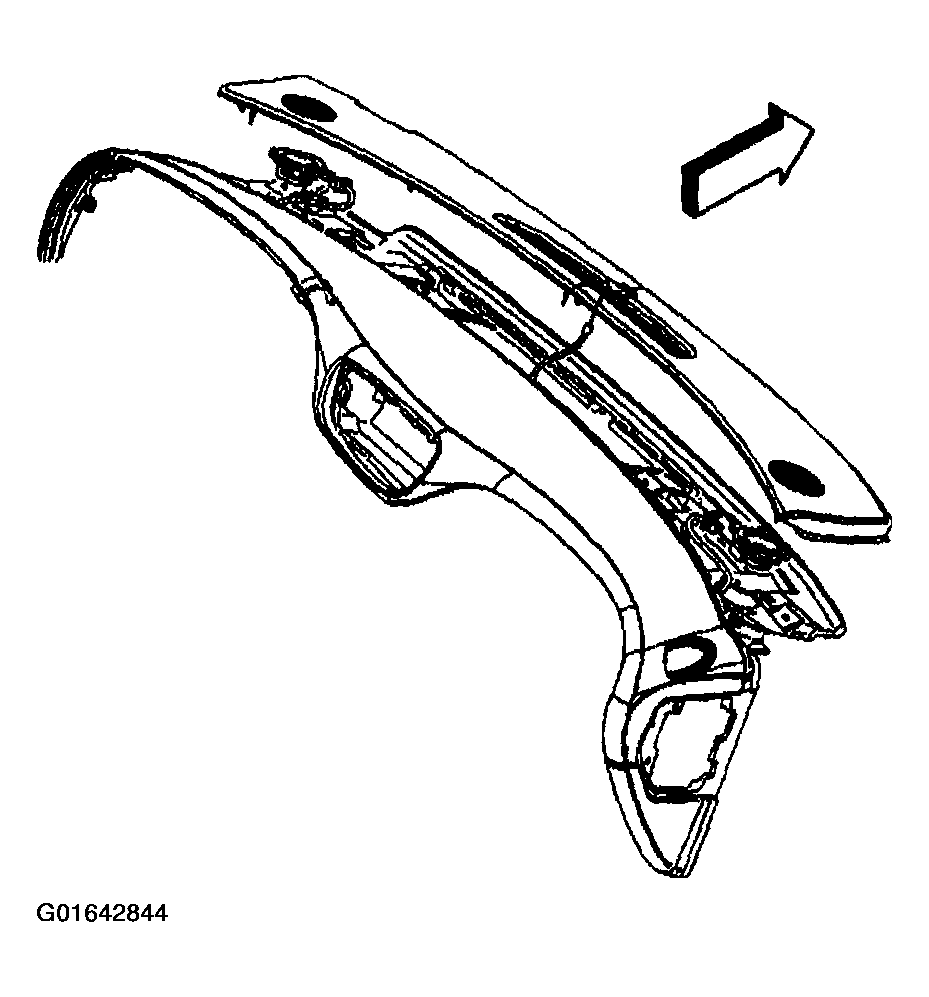

    Fig 1: Removing Trim Pad
    G01642844Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Ensure that the speaker electrical connector does not fall into the speaker opening.
  2. Remove the 3 screws that retain the speaker to the instrument panel (IP) substrate.
  3. Disconnect the speaker electrical connector.
  4. Remove the speaker from the IP.

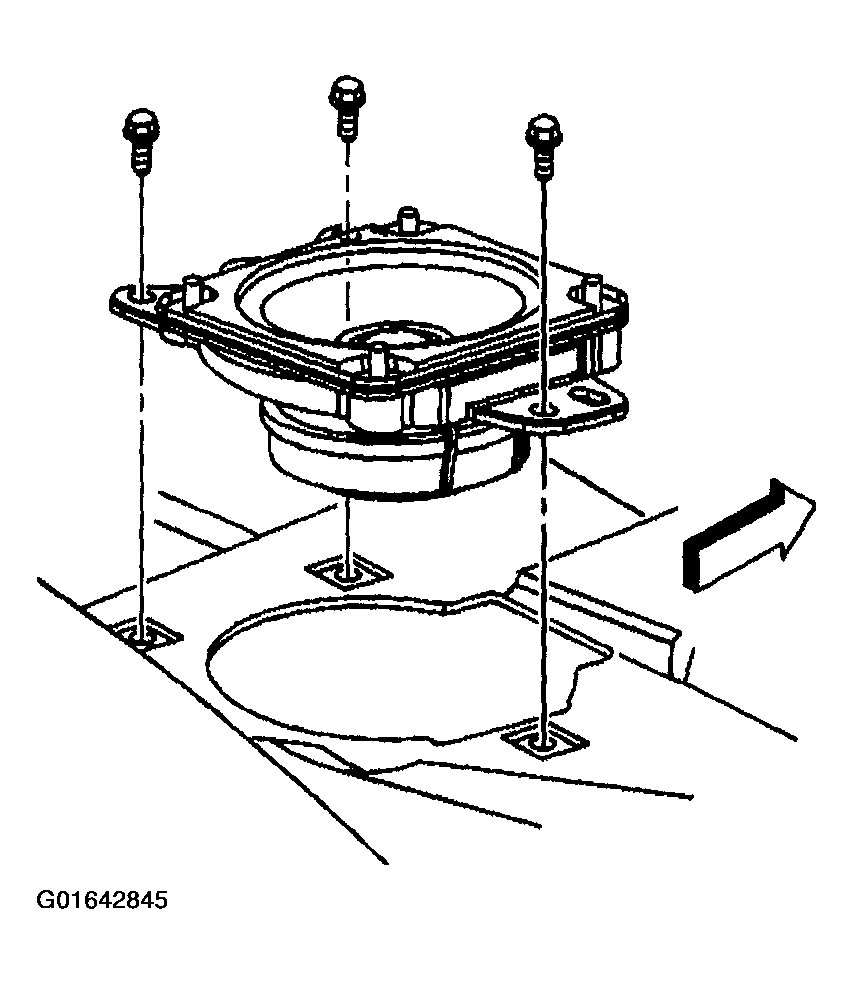

    Fig 2: Removing Speaker From IP
    G01642845Courtesy of GENERAL MOTORS CORP.
