Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Install the speaker to the IP.
Connect the speaker electrical connector.
NOTE: Refer to Fastener Notice in Cautions and Notices.
Install the 3 speaker retaining screws.
Tighten

Tighten the screws to 2 N.m (18 lb in).

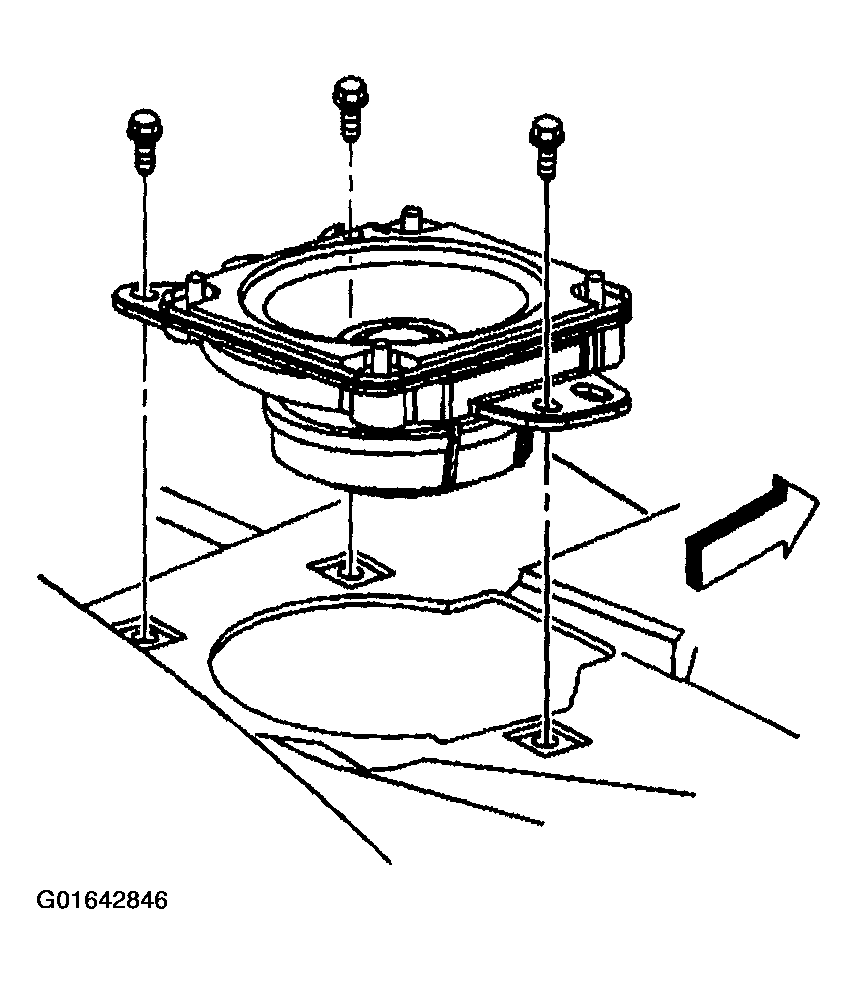

Fig 1: Installing Speaker To IP
Courtesy of GENERAL MOTORS CORP.
Install the trim pad. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER in Instrument Panel, Gages and Console.

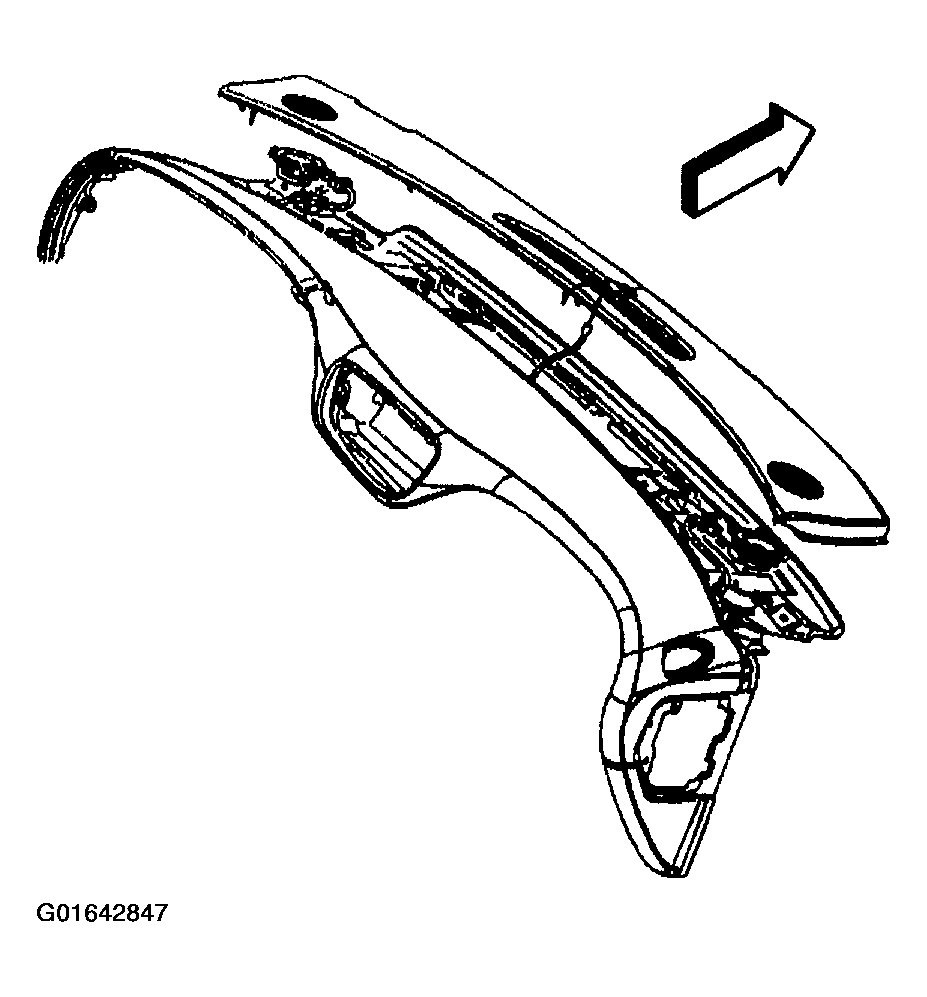

Fig 2: Installing Trim Pad
Courtesy of GENERAL MOTORS CORP.
