Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the speaker to the door.
    NOTE: Refer to Fastener Notice   in Cautions and Notices.
  2. Install the 3 speaker retaining bolts.

    Tighten

    Tighten the bolts to 2 N.m (18 lb in).

  3. Connect the speaker electrical connector.
  4. Install the front door trim panel. Refer to INTERIOR TRIM  in Doors.

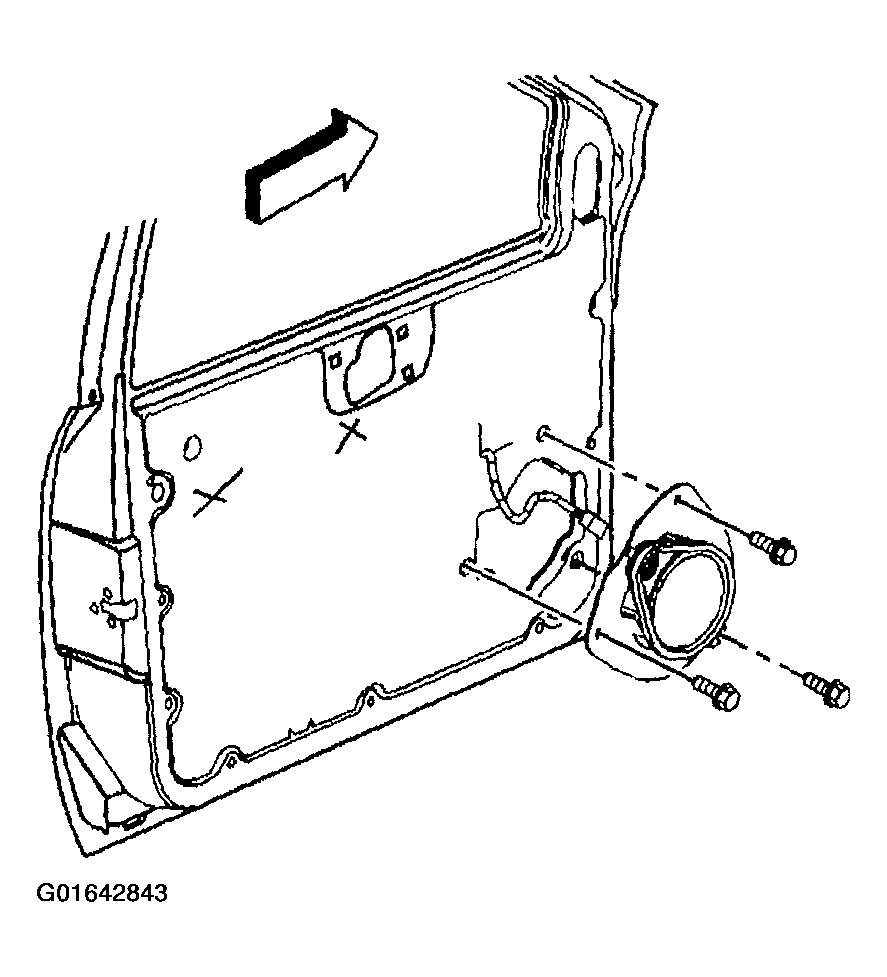

    Fig 1: Installing Speaker To Door
    G01642843Courtesy of GENERAL MOTORS CORP.
