Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Install the microphone (2) to the overhead console.
NOTE: Refer to Fastener Notice in Cautions and Notices.
Install the 2 microphone retaining screws.
Tighten

Tighten the screws to 0.8 N.m (7 lb in).
Connect the microphone electrical connector (3).
Install the overhead console. Refer to OVERHEAD CONSOLE REPLACEMENT - FRONT in Interior Trim.

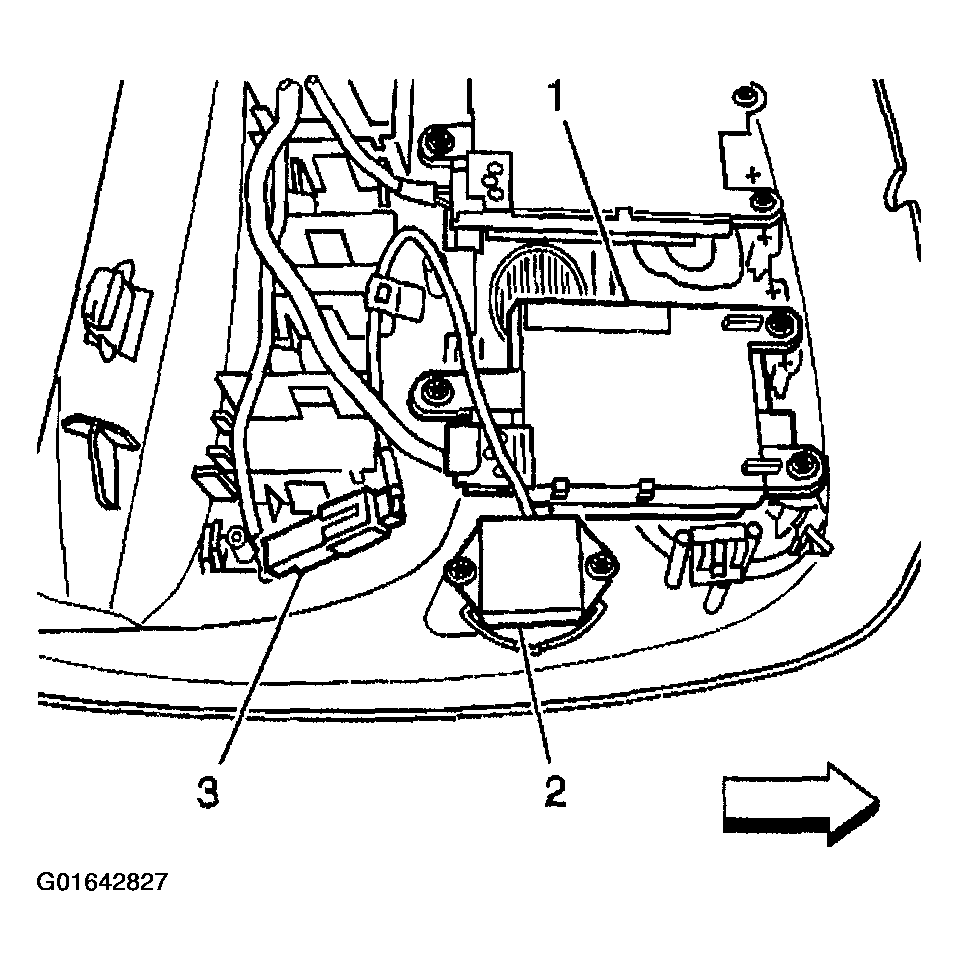

Fig 1: Installing Microphone To Overhead Console
Courtesy of GENERAL MOTORS CORP.
