Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the inflatable restraint instrument panel (IP) module. Refer to Inflatable Restraint Instrument Panel Module Replacement   in SIR.
  2. Disconnect the antenna cable (2) from the radio extension cable.

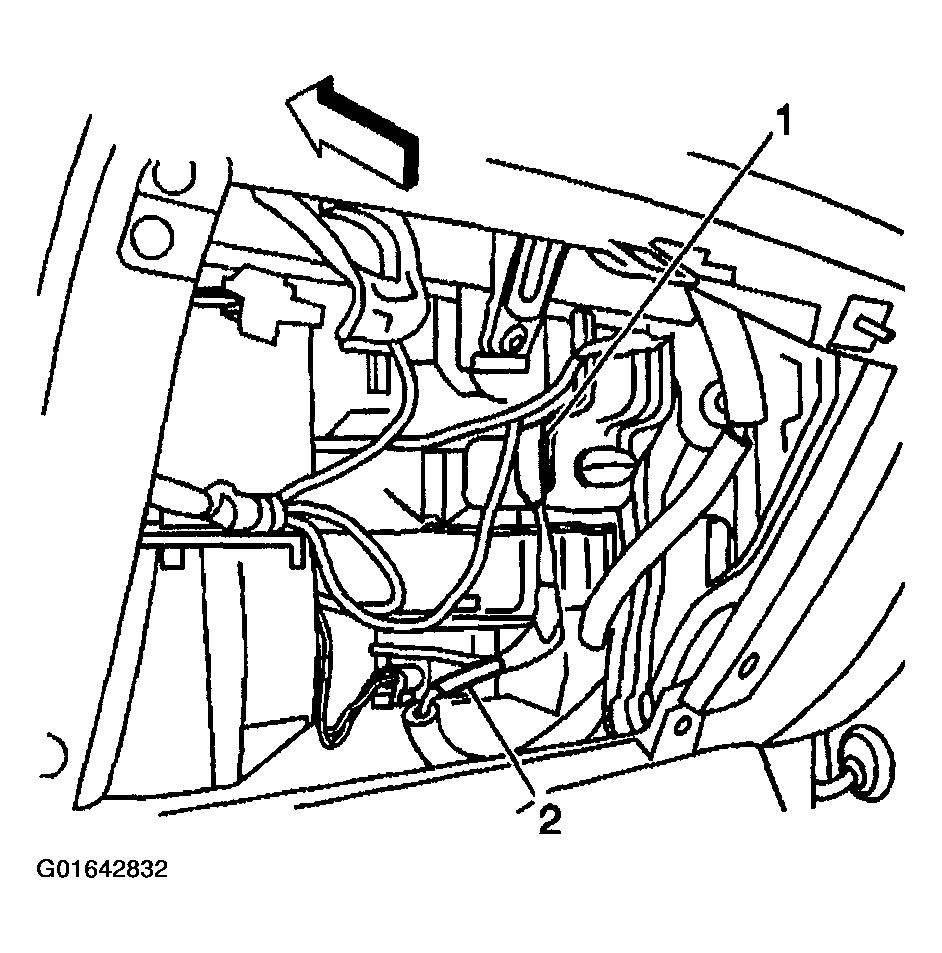

    Fig 1: Disconnecting Antenna Cable From Radio Extension Cable
    G01642832Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Note the location of the radio extension cable before removal.
  3. Remove the cable attachments (1) from the IP support bars.
  4. Reach through the IP compartment to disconnect the antenna cable from the radio.
  5. Remove the radio extension cable from the vehicle.

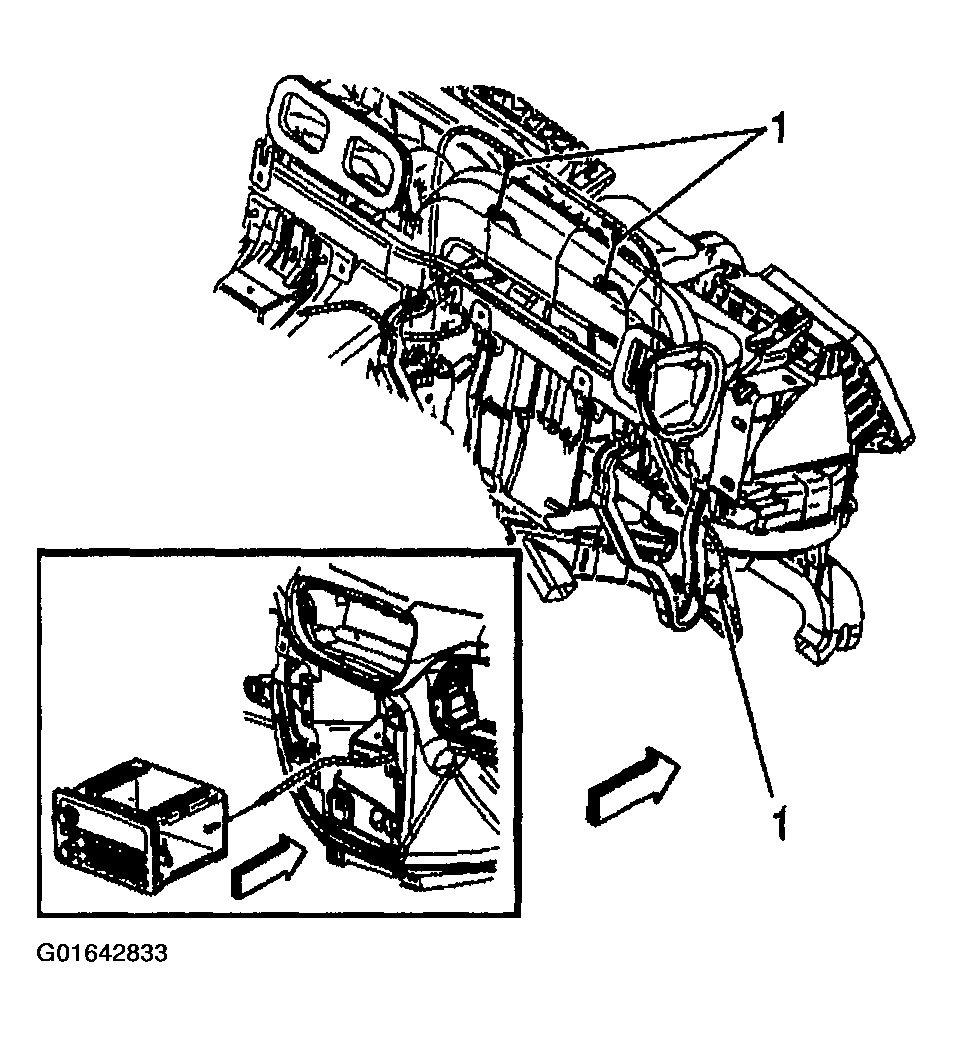

    Fig 2: Removing Radio Extension Cable From Vehicle
    G01642833Courtesy of GENERAL MOTORS CORP.
