Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Position the radio extension cable to the IP support bars as previously noted.
Reach through the IP compartment to connect the antenna cable to the radio.
Install the radio extension cable attachments (1) to the IP support bars.

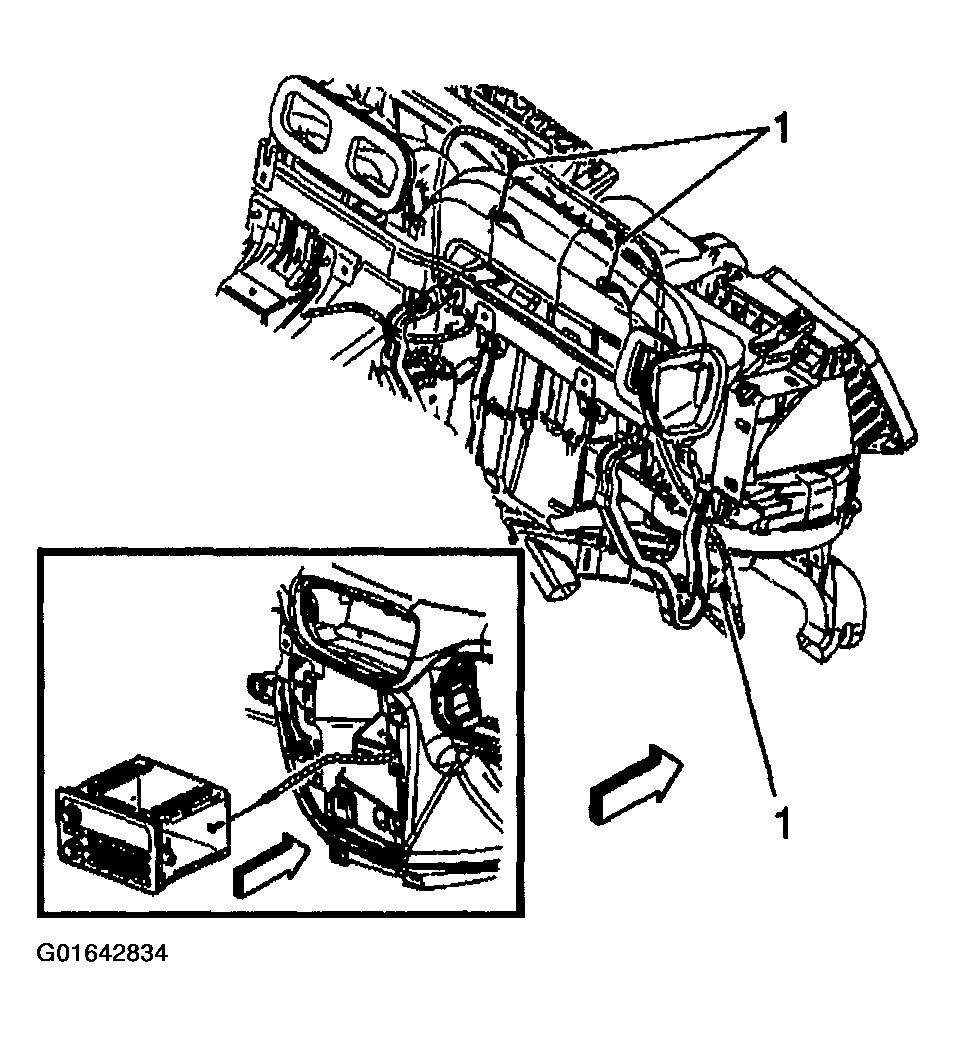

Fig 1: Position Radio Extension Cable To IP Support Bars
Courtesy of GENERAL MOTORS CORP.
Connect the antenna cable (2) to the radio extension cable.
Install the inflatable restraint module. Refer to Inflatable Restraint Instrument Panel Module Replacement SIR.

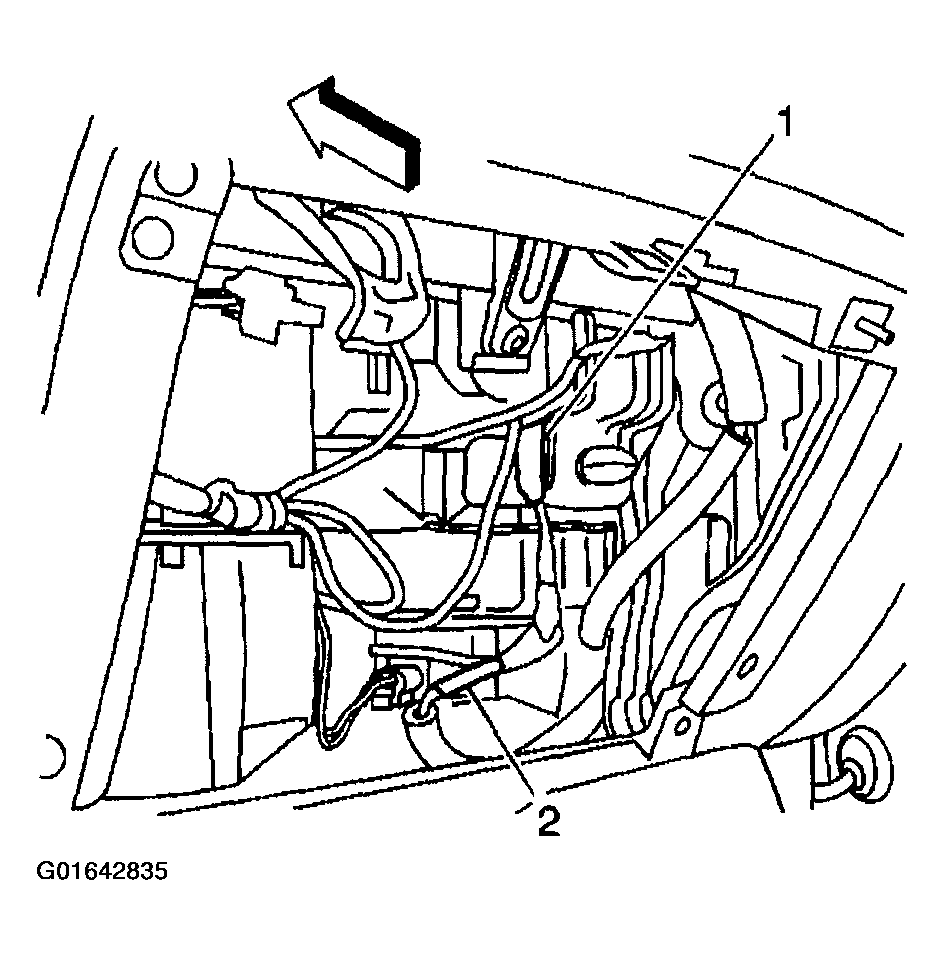

Fig 2: Connecting Antenna Cable To Radio Extension Cable
Courtesy of GENERAL MOTORS CORP.
