Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the instrument panel (I/P) compartment to a full down position.
  2. Disconnect the radio antenna cable (2) from the radio extension cable.

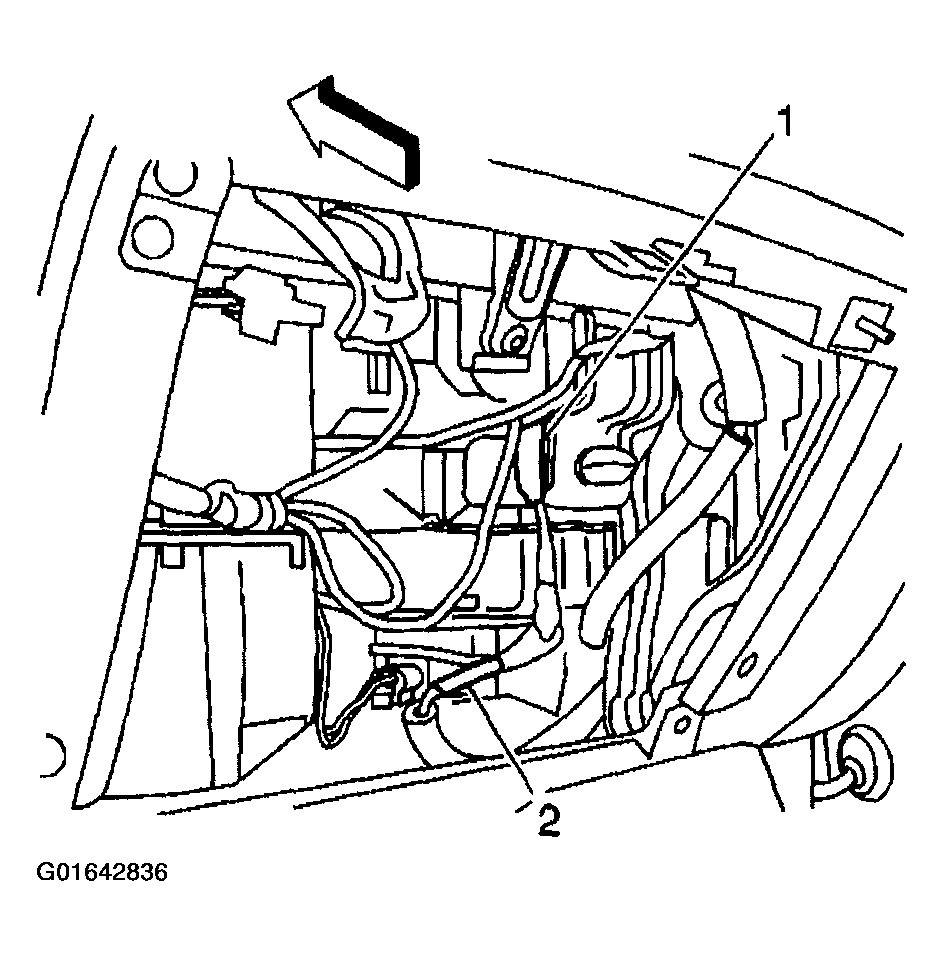

    Fig 1: Disconnecting Radio Antenna Cable From Radio Extension Cable
    G01642836Courtesy of GENERAL MOTORS CORP.
  3. Remove the lower rear portion of the wheelhouse panel. Refer to WHEELHOUSE PANEL REPLACEMENT  in Body Front End.
  4. Reach up behind the wheelhouse panel and remove the antenna cable and grommet assembly from the cowl opening (1).
  5. Pass the end of the radio antenna cable assembly through the cowl opening (1).

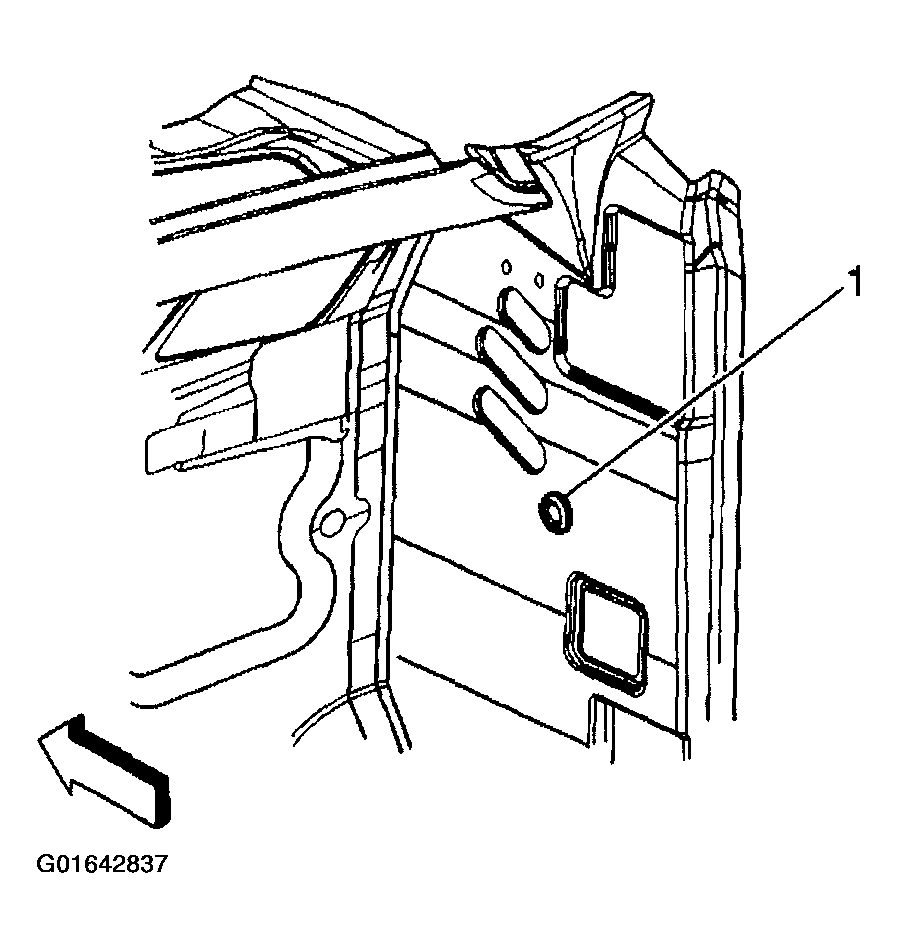

    Fig 2: Removing Antenna Cable & Grommet Assembly From Cowl Opening
    G01642837Courtesy of GENERAL MOTORS CORP.
  6. Remove the antenna mast. Refer to FIXED ANTENNA MAST REPLACEMENT   .
  7. Open the hood.
  8. Remove the radio antenna cable assembly retaining screws.
  9. Pass the antenna cable and grommet assembly through the fender opening.
  10. Remove the radio antenna cable assembly from the vehicle.

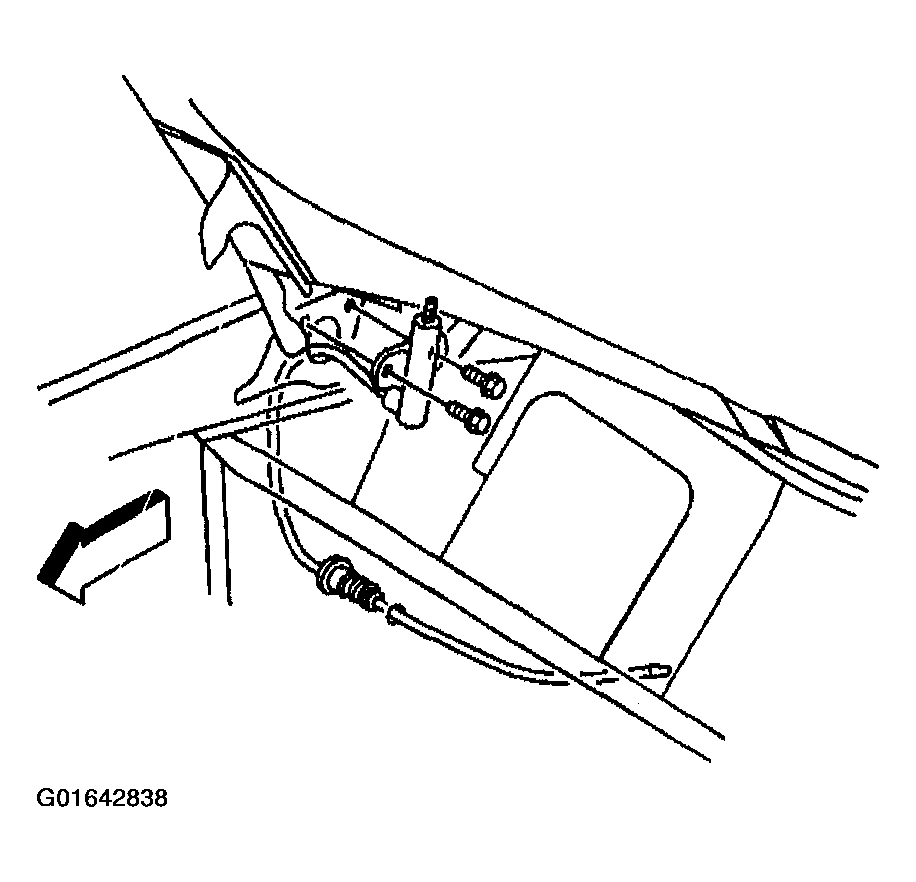

    Fig 3: Removing Radio Antenna Cable Assembly From Vehicle
    G01642838Courtesy of GENERAL MOTORS CORP.
