Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the radio speaker amplifier to the body.
    NOTE: Refer to Fastener Notice   in Cautions and Notices.
  2. Install the 4 bolts that retain the radio speaker amplifier to the body.

    Tighten

    Tighten the bolts to 10 N.m (88 lb in).

  3. Connect the electrical connectors to the radio speaker amplifier.
  4. Install the lower right quarter trim panel. Refer to INTERIOR TRIM  or INTERIOR TRIM  in Interior Trim.
  5. Install the upper right quarter trim panel. Refer to INTERIOR TRIM  in Interior Trim.

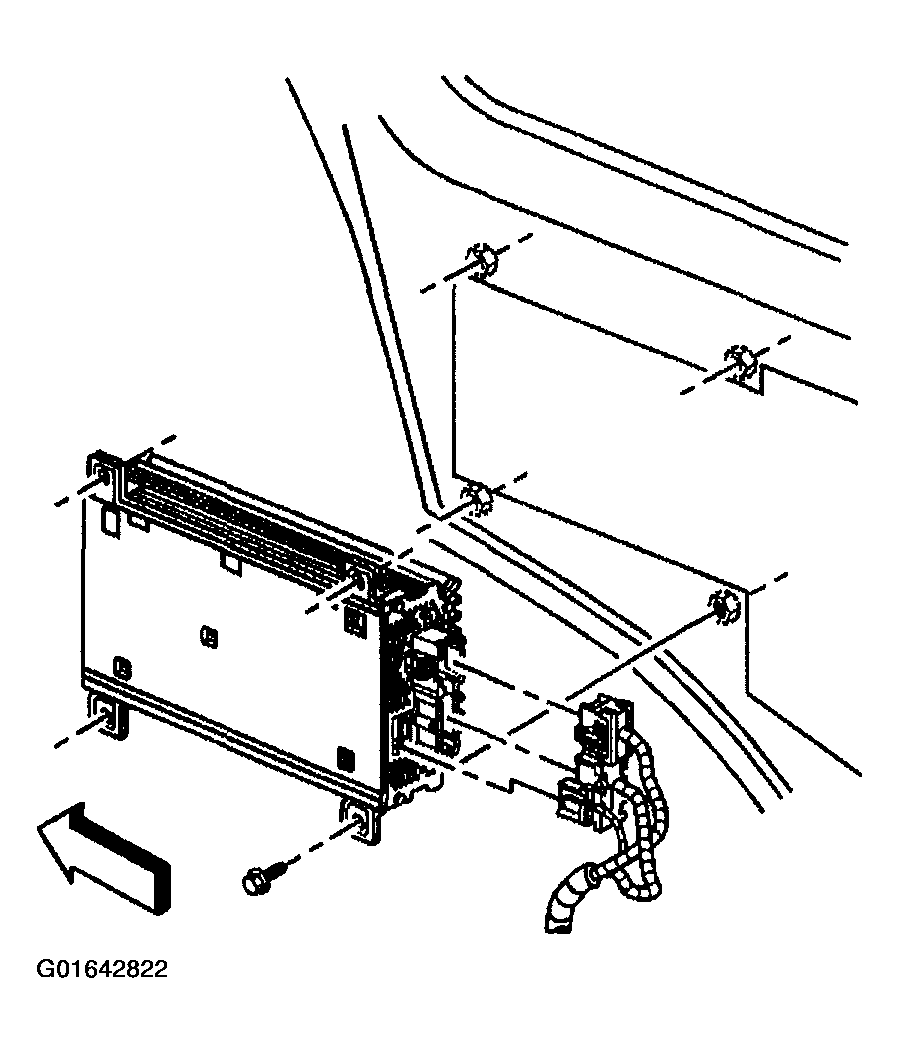

    Fig 1: Installing Radio Speaker Amplifier To Body
    G01642822Courtesy of GENERAL MOTORS CORP.
