Video Entertainment System Always On

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

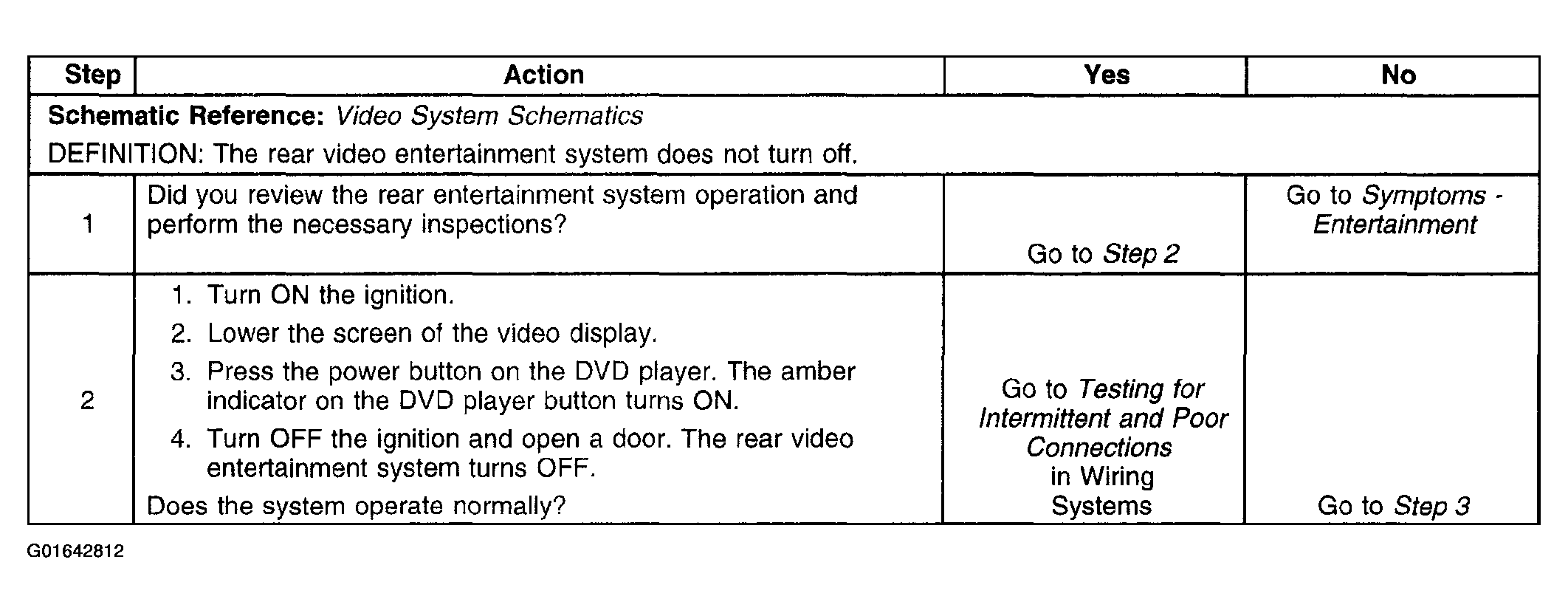

Fig 1: Video Entertainment System Always On - Diagnostic Chart (1 Of 2)
G01642812Courtesy of GENERAL MOTORS CORP.

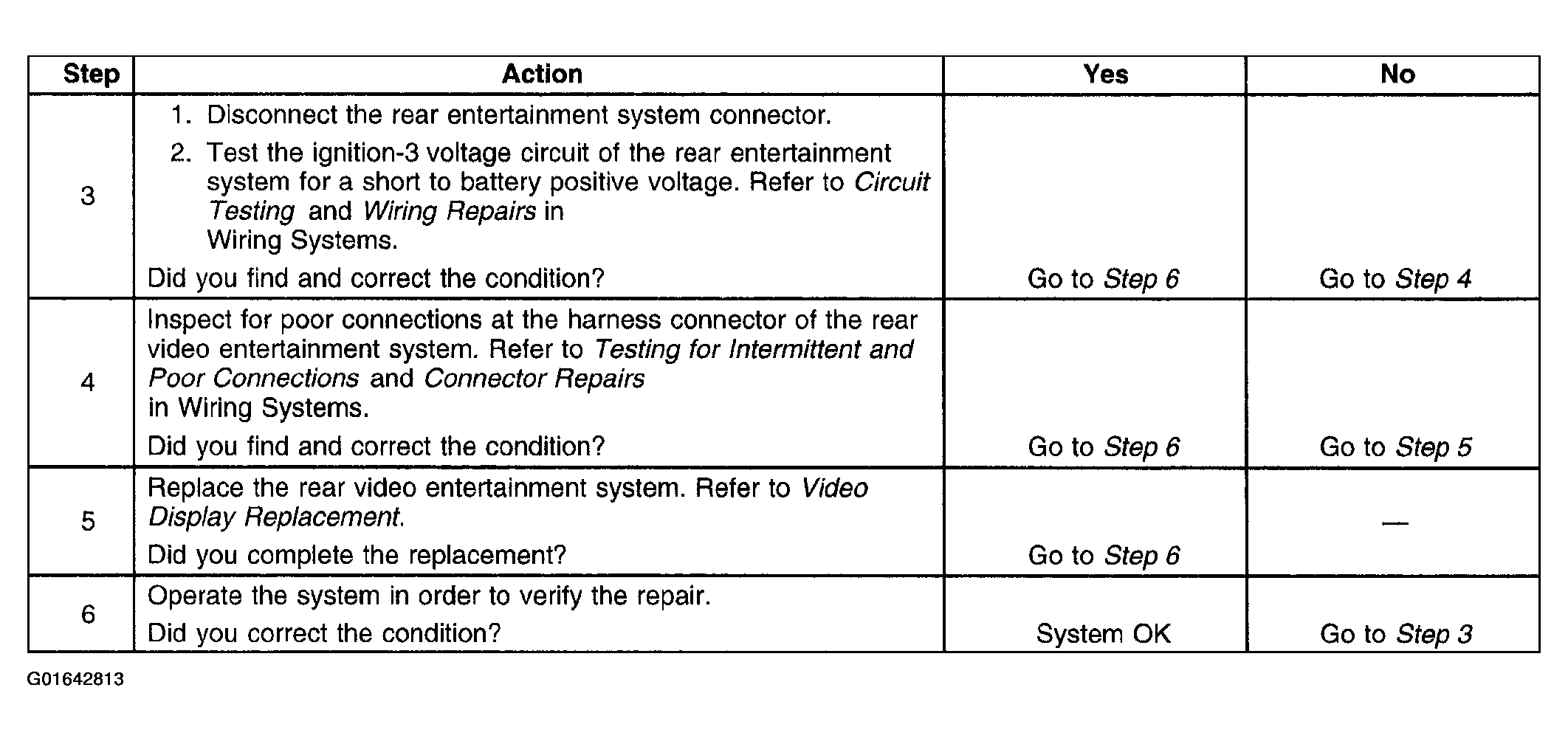

Fig 2: Video Entertainment System Always On - Diagnostic Chart (2 Of 2)
G01642813Courtesy of GENERAL MOTORS CORP.
