Speaker - LF Door

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

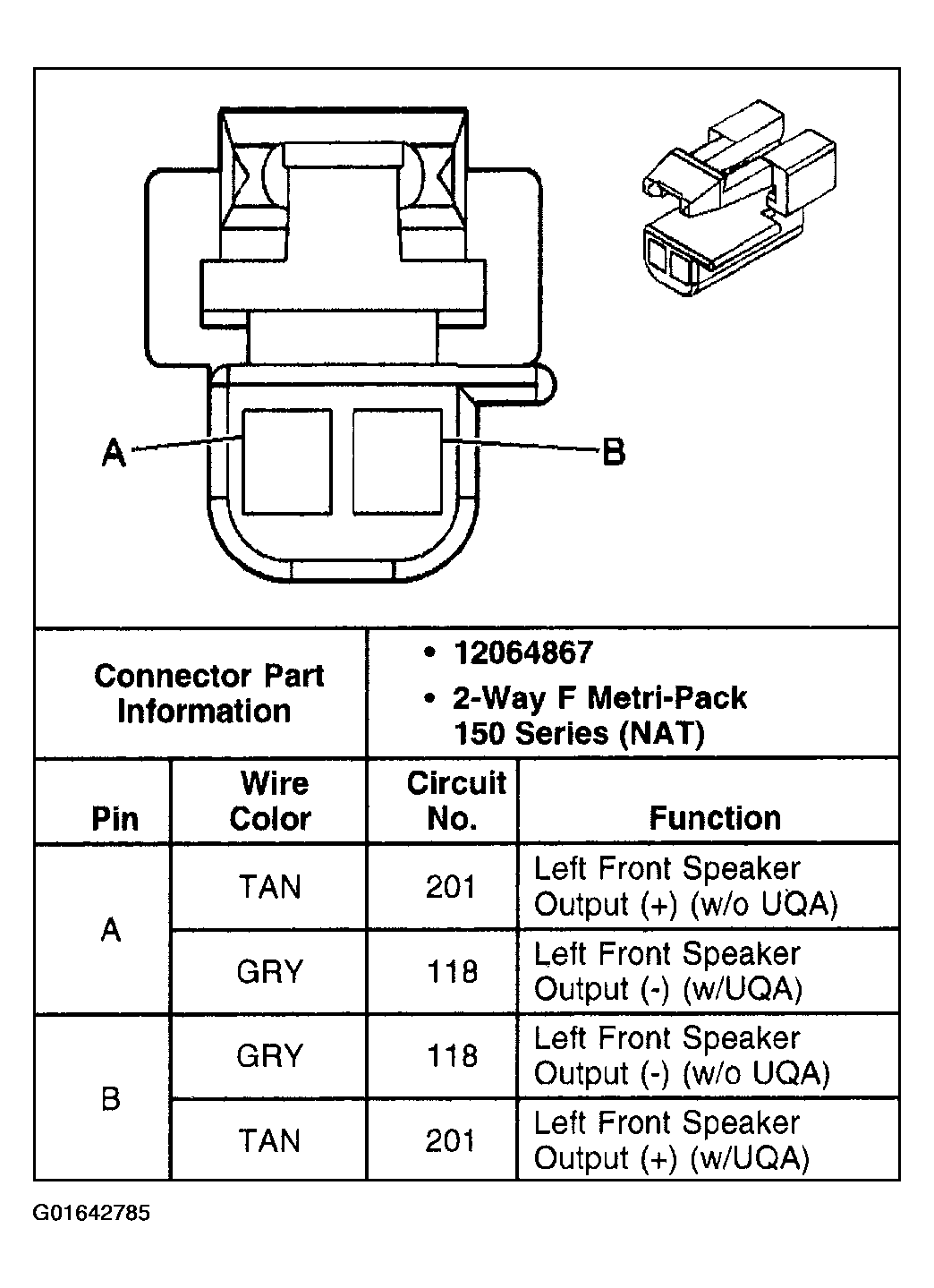

Fig 1: Identifying Speaker - LF Door - Connector
G01642785Courtesy of GENERAL MOTORS CORP.
