Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel (IP) accessory trim plate. Refer to TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY (CHEVROLET)  or TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY (OLDSMOBILE)  in Instrument Panel, Gages and Console.
  2. Disconnect the electrical connector from the wiper washer switch.
  3. Release the wiper washer switch locking tabs.
  4. Remove the switch from the trim plate.

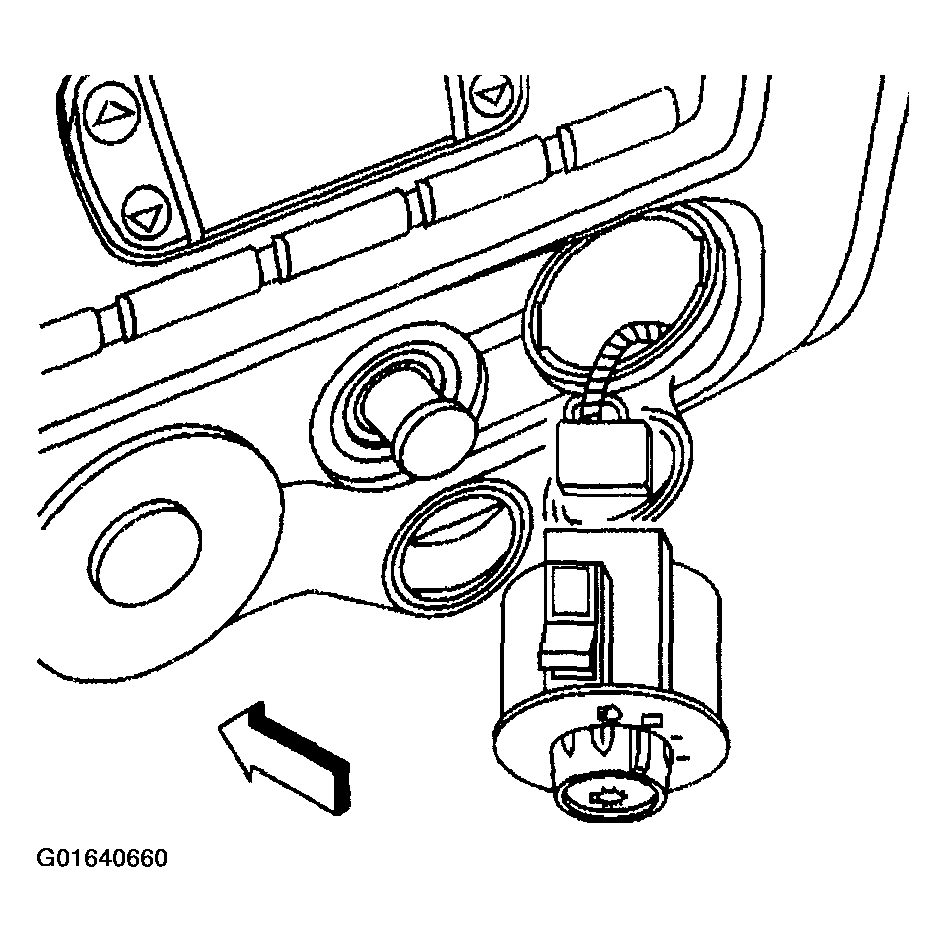

    Fig 1: Removing Switch From Trim Plate
    G01640660Courtesy of GENERAL MOTORS CORP.
