Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the switch to the trim plate.
  2. Connect the electrical connector to the wiper washer switch.
  3. Install the switch to the instrument panel trim plate, ensuring that the locking tabs are properly seated.
  4. Install the instrument panel (IP) accessory trim plate. Refer to TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY (CHEVROLET)  or TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY (OLDSMOBILE)  in Instrument Panel, Gages and Console.

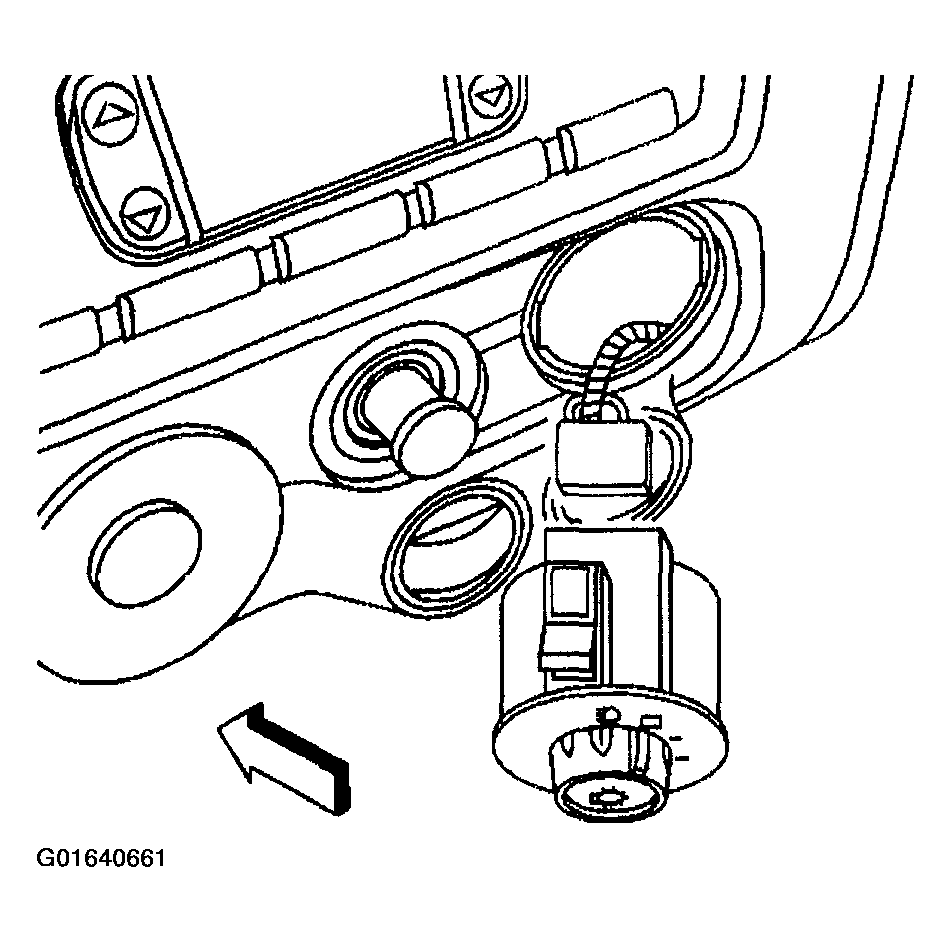

    Fig 1: Positioning Switch To Trim Plate
    G01640661Courtesy of GENERAL MOTORS CORP.
