Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the wiper transmission assembly to the vehicle.
  2. Connect the electrical connector to the wiper motor.
  3. Insert the wiper motor post into the slot in the plenum, push the transmission assembly forward to seat the post.
    NOTE: Refer to Fastener Notice   in Cautions and Notices.
  4. Install the bolts retaining the wiper transmission assembly to the vehicle.

    Tighten

    Tighten the wiper transmission assembly bolts to 8 N.m (71 lb in).

  5. Install the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT  in Body Front End.
  6. Install the windshield wiper arms. Refer to WIPER ARM REPLACEMENT   .

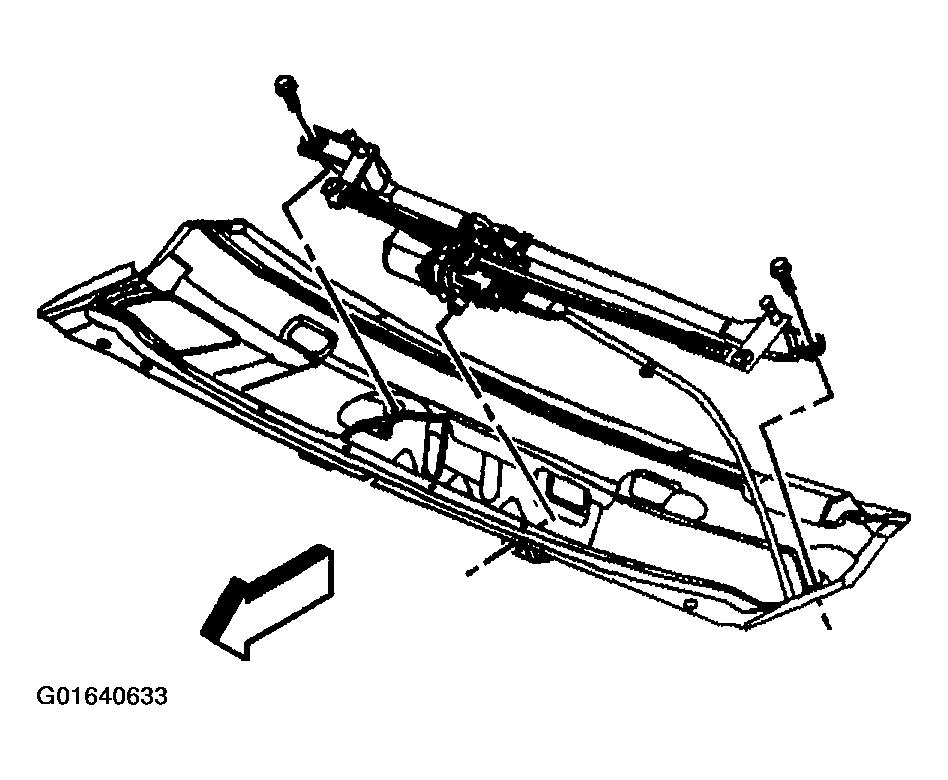

    Fig 1: Connecting Electrical Connector To Wiper Motor
    G01640633Courtesy of GENERAL MOTORS CORP.
