Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the liftgate interior trim panel. Refer to TRIM PANEL REPLACEMENT - LIFT GATE  in Body Rear End.
  2. Remove the 2 bolts retaining the wiper arm park ramp to the liftgate.
  3. Remove the wiper arm park ramp from the vehicle.

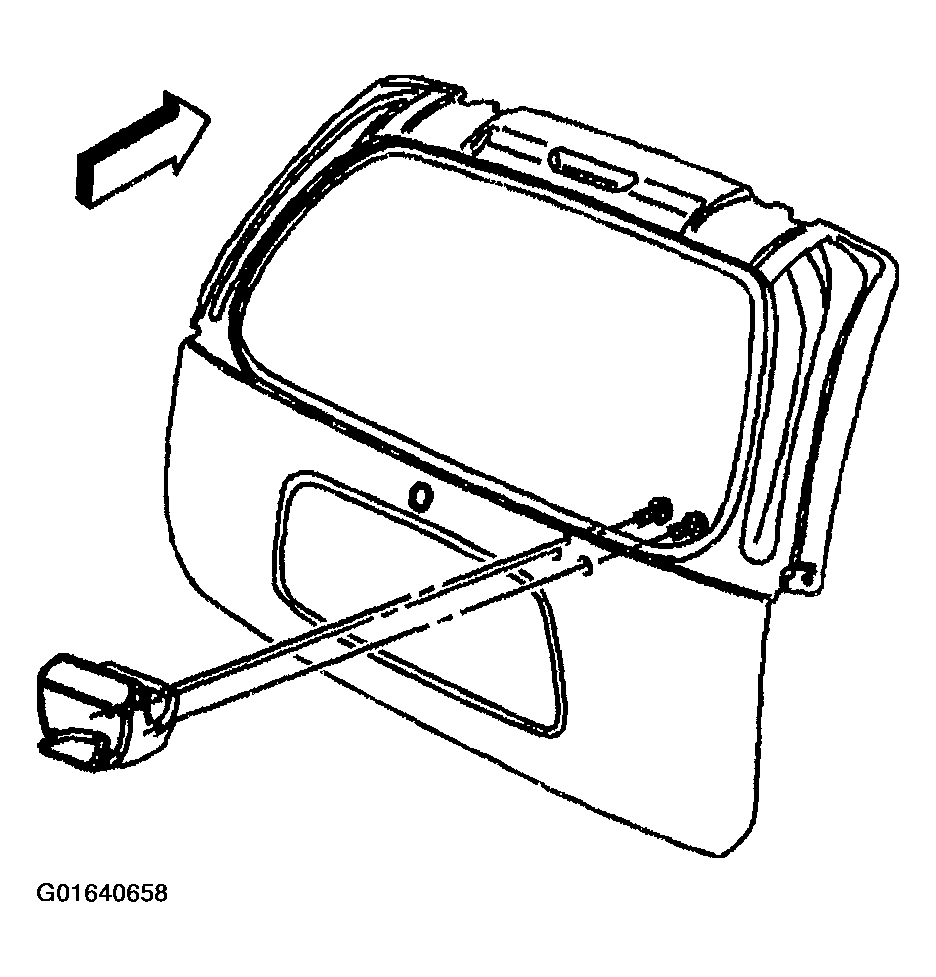

    Fig 1: Removing Bolts Retaining Wiper Arm Park Ramp To Liftgate
    G01640658Courtesy of GENERAL MOTORS CORP.
