Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Install the wiper arm park ramp to the vehicle.
NOTE: Refer to Fastener Notice in Cautions and Notices.
Install the 2 bolts retaining the wiper arm park ramp to the liftgate.
Tighten

Tighten the 2 bolts to 9 N.m (79 lb in).
Install the liftgate interior trim panel, refer to TRIM PANEL REPLACEMENT - LIFT GATE in Body Rear End.

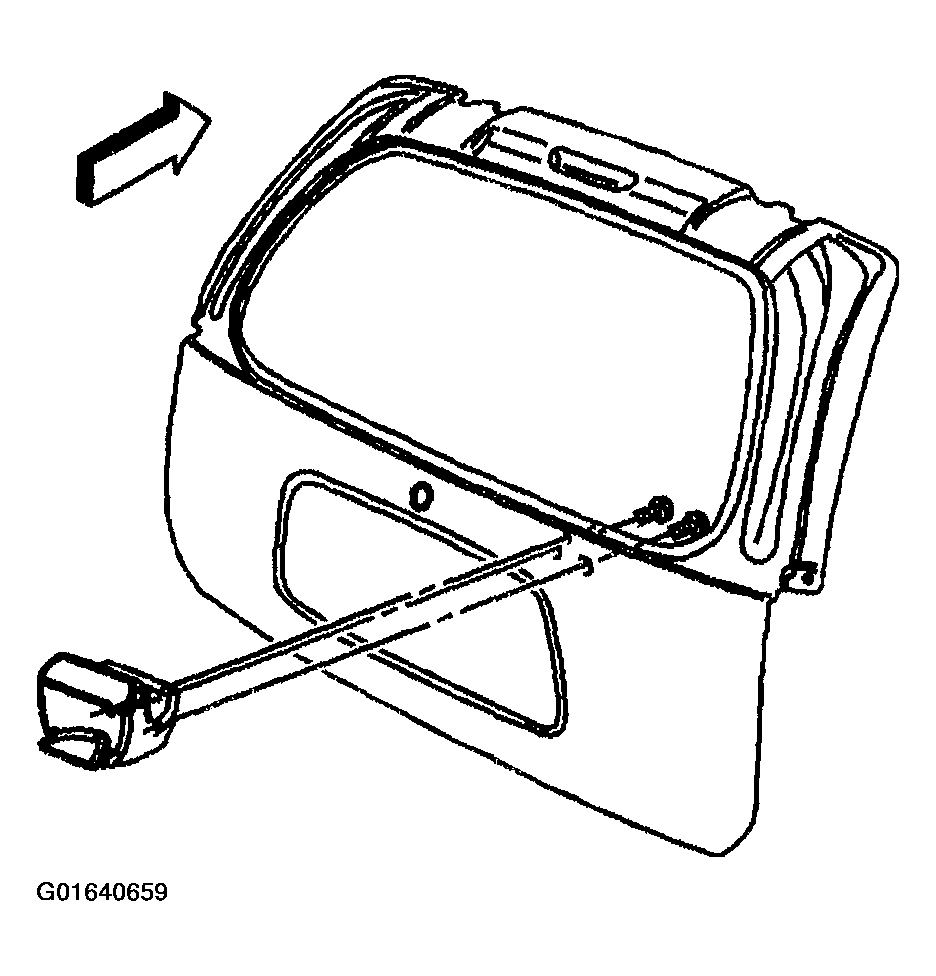

Fig 1: Installing Bolts Retaining Wiper Arm Park Ramp To Liftgate
Courtesy of GENERAL MOTORS CORP.
