Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wiper arm. Refer to WIPER ARM REPLACEMENT - REAR   .
  2. Remove the nut and spacer from the wiper motor shaft.
  3. Remove the interior trim panel from the liftgate. Refer to TRIM PANEL REPLACEMENT - LIFT GATE  in Body Rear End.
  4. Disconnect the wiper motor electrical connector.
  5. Remove the 2 bolts retaining the wiper motor to the liftgate.
  6. Remove the wiper motor.

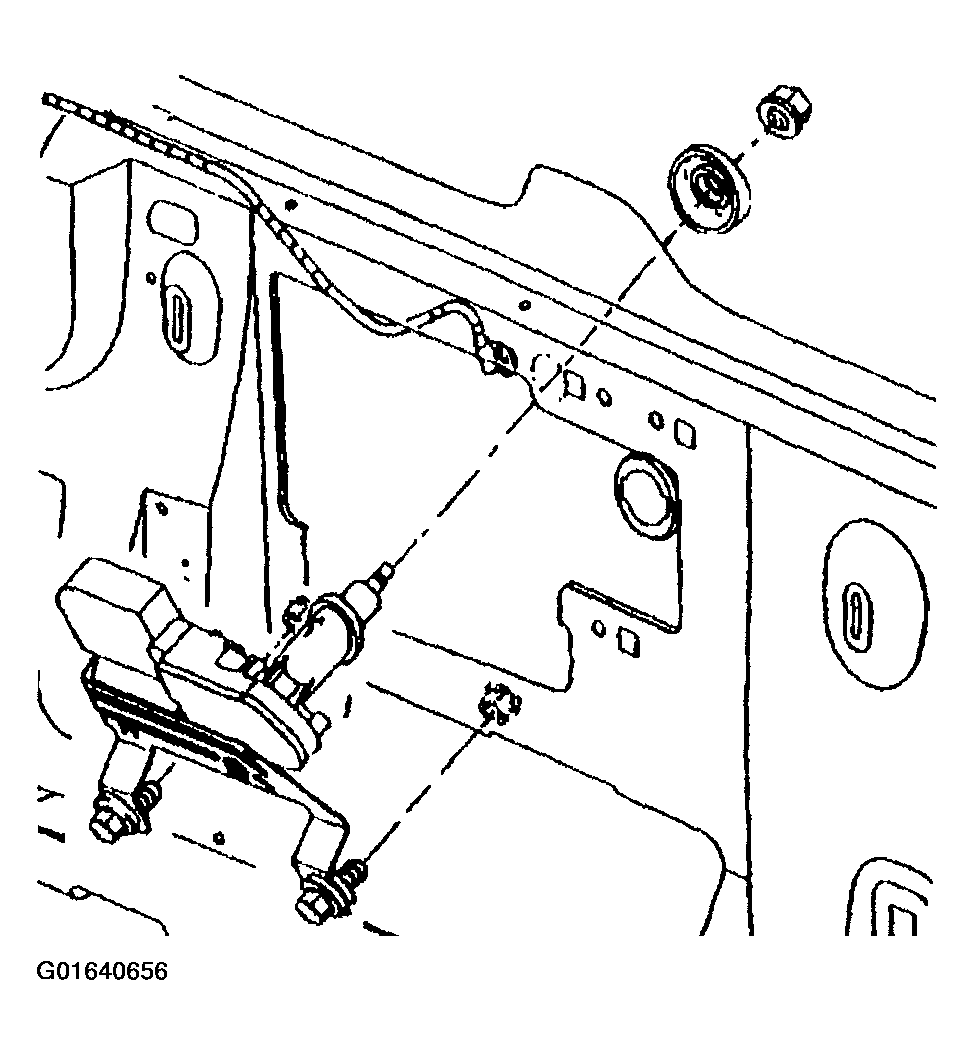

    Fig 1: Removing Wiper Motor
    G01640656Courtesy of GENERAL MOTORS CORP.
