Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wiper transmission assembly. Refer to WIPER TRANSMISSION REPLACEMENT   .
  2. Remove the 3 screws retaining the wiper motor cover to the motor.
  3. Remove the wiper cover and module from the motor.

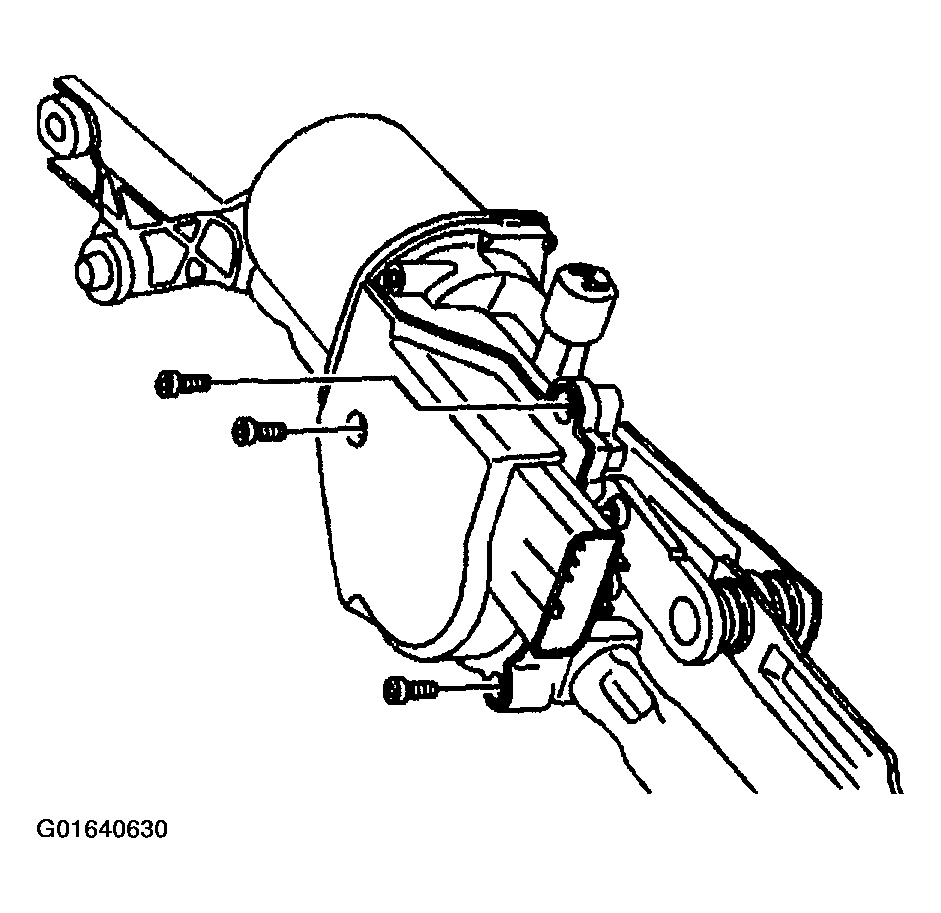

    Fig 1: Removing Wiper Cover And Module From Motor
    G01640630Courtesy of GENERAL MOTORS CORP.
