Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Install the wiper cover and module to the wiper motor.
NOTE: Refer to Fastener Notice in Cautions and Notices.
Install the 3 screws retaining the wiper motor cover to the wiper motor.
Tighten

Tighten the 3 wiper motor cover screws to 3 N.m (27 lb in).
Install the wiper transmission assembly to the vehicle. Refer to WIPER TRANSMISSION REPLACEMENT .

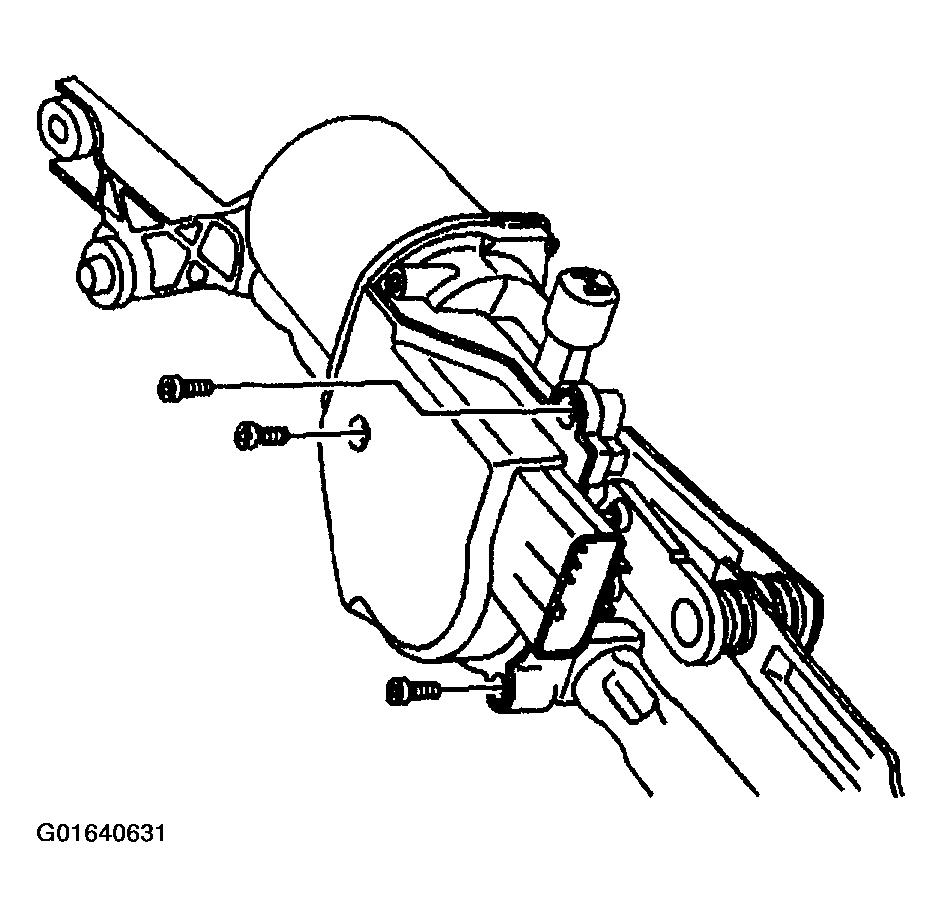

Fig 1: Installing Wiper Cover And Module To Wiper Motor
Courtesy of GENERAL MOTORS CORP.
