Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the washer hose (4).
  2. Remove the wiper arm cover (2).
  3. Remove the nut (3) retaining the wiper arm to the motor shaft.
  4. Remove the wiper arm from the motor shaft.
  5. Remove the wiper arm blade from the wiper arm, if necessary. Refer to WIPER ARM BLADE REPLACEMENT - REAR   .

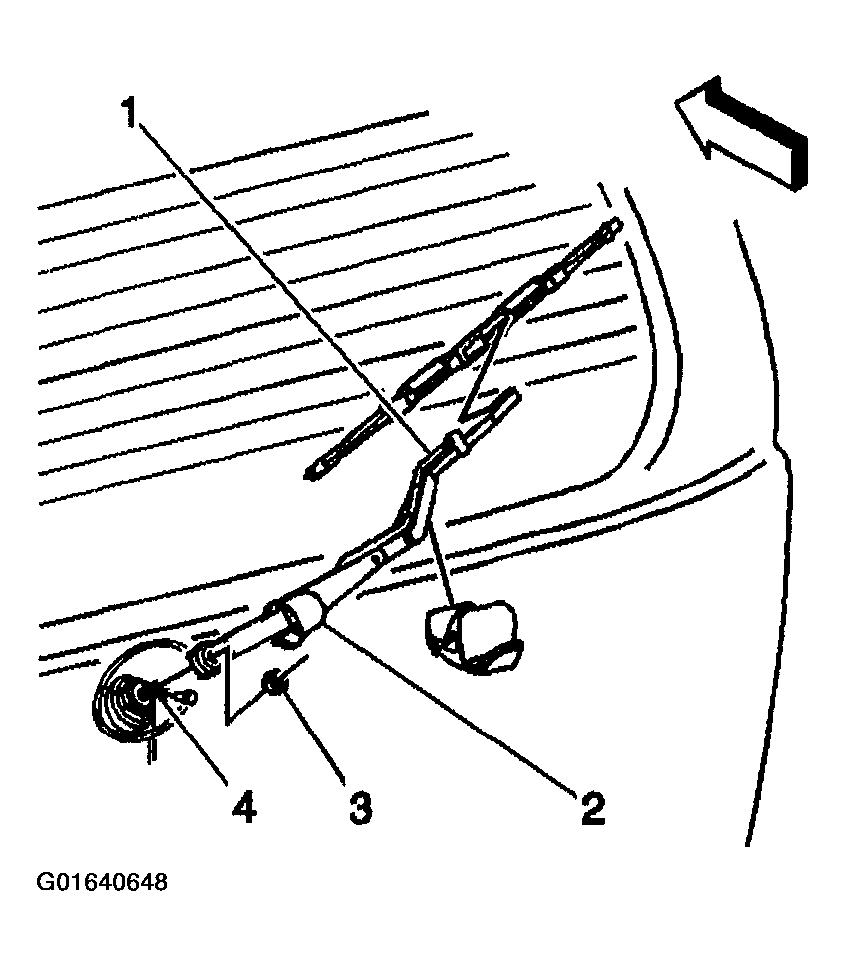

    Fig 1: Removing Wiper Arm From Motor Shaft
    G01640648Courtesy of GENERAL MOTORS CORP.
