Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the wiper arm blade to the wiper arm, if removed. Refer to WIPER ARM BLADE REPLACEMENT - REAR   .
  2. Position the wiper arm into the park ramp.
    NOTE: Refer to Fastener Notice   in Cautions and Notices.
  3. Install the wiper arm onto the motor shaft with the nut (3).

    Tighten

    Tighten the nut (3) to 20 N.m (15 lb ft).

  4. Install the wiper arm cover (2).
  5. Connect the washer hose (4).

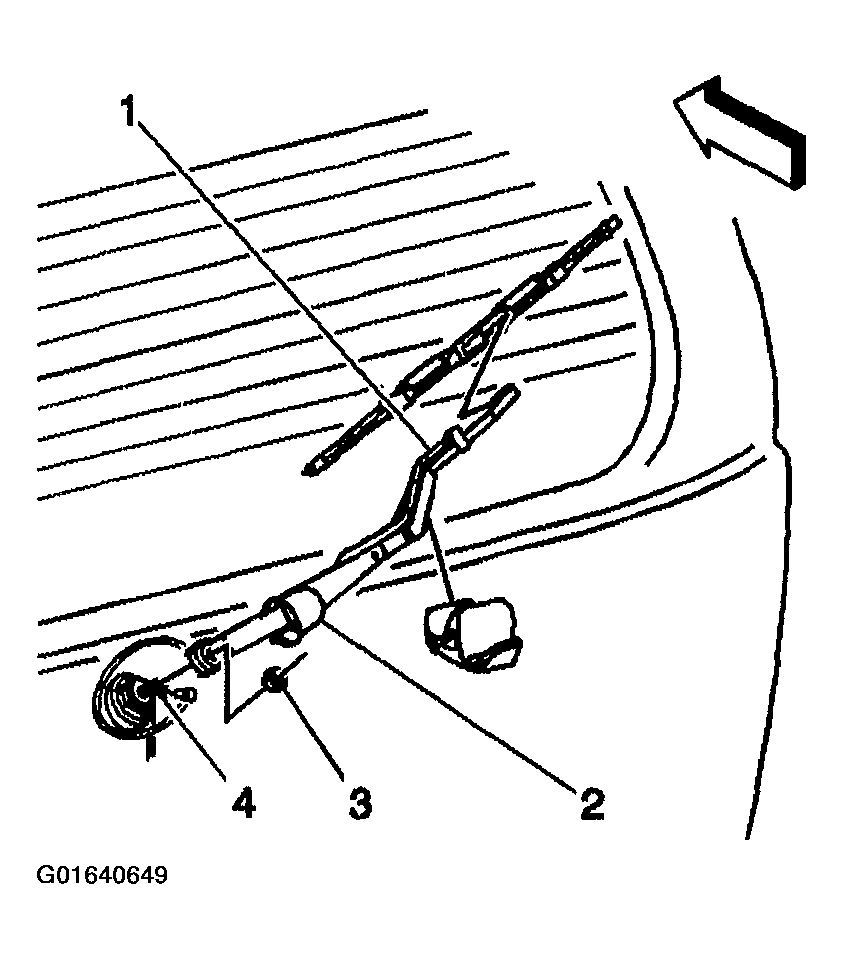

    Fig 1: Positioning Wiper Arm Into Park Ramp
    G01640649Courtesy of GENERAL MOTORS CORP.
