Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the pump (1) to the sealing grommet (2).
  2. Install the pump (1) to the retainer (3) on the solvent container.
  3. Connect the headlamp washer hose to the pump (1).
  4. Install the washer solvent container. Refer to WASHER SOLVENT CONTAINER REPLACEMENT   .

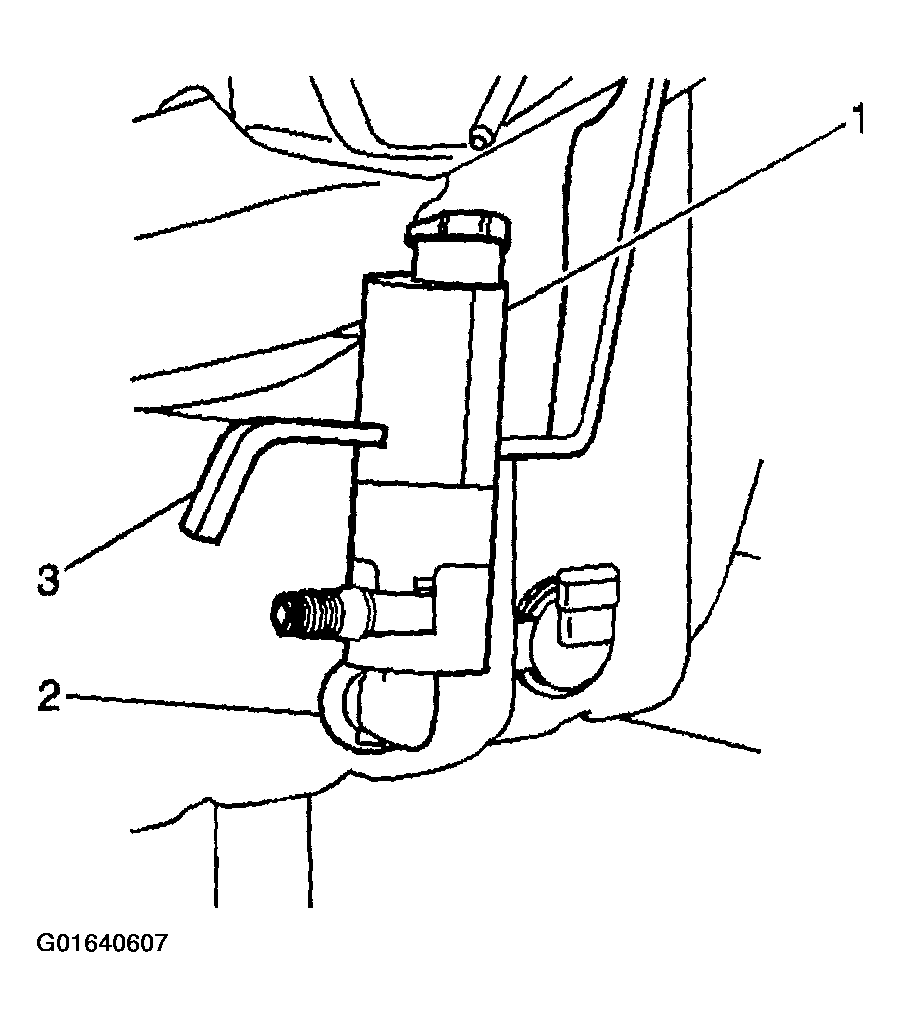

    Fig 1: Installing Pump To Sealing Grommet
    G01640607Courtesy of GENERAL MOTORS CORP.
