Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the rear washer hose connection (2) near the coolant tank.
  2. Remove the washer hose grommet (1) from the hole in the bulkhead, and feed the washer hose into the vehicle.
  3. Remove right front sill plate (refer to INTERIOR TRIM  or INTERIOR TRIM  )  and roll carpet inward to expose wiring harness/hose assembly.
  4. Remove rear seat backs.
  5. Remove rear compartment anchors.

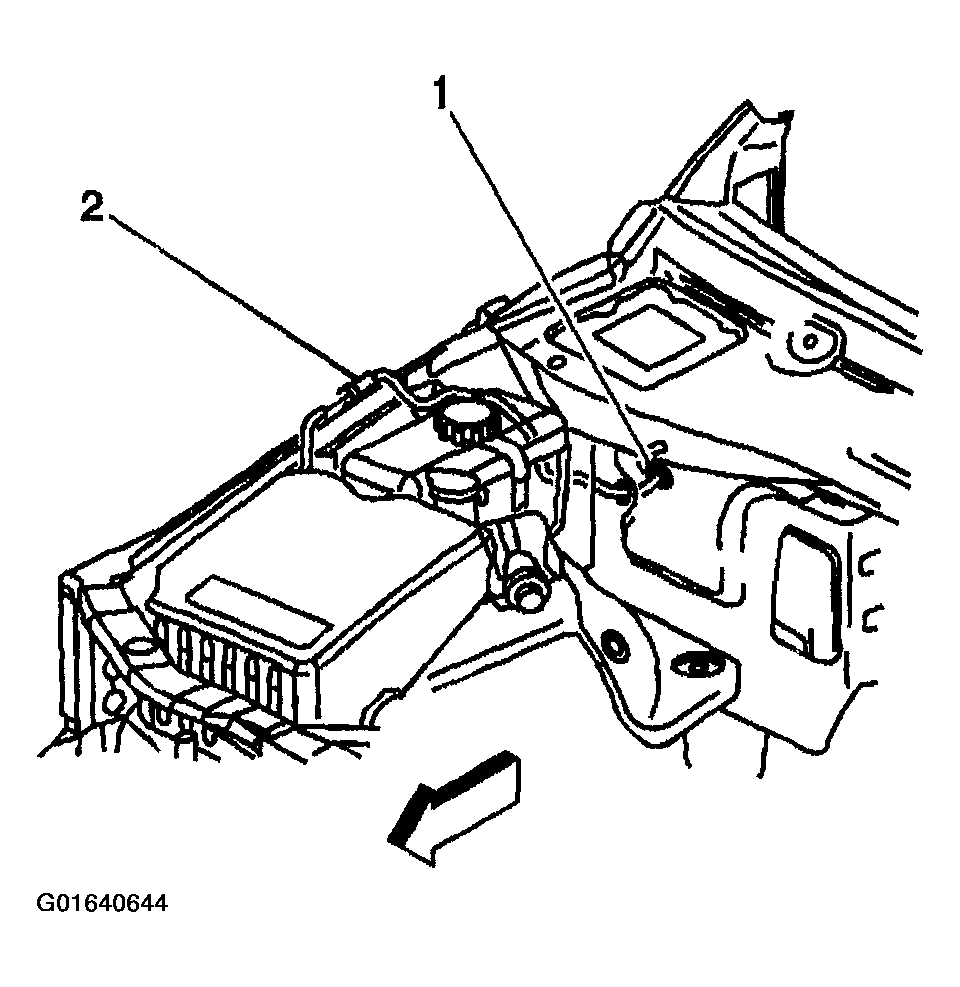

    Fig 1: Removing Washer Hose Grommet From Hole In Bulkhead
    G01640644Courtesy of GENERAL MOTORS CORP.
  6. Roll carpet froward to expose wiring harness/hose assembly.
  7. Remove the left rear quarter upper trim panel. Refer to INTERIOR TRIM  in Interior Trim.
  8. Open the tailgate to access the pass-though grommet.
  9. Disconnect the grommet from the liftgate to access the washer hose connection.
  10. Cut the exposed ends of the washer hose from the body wiring harness.
  11. Remove the hose from the vehicle.

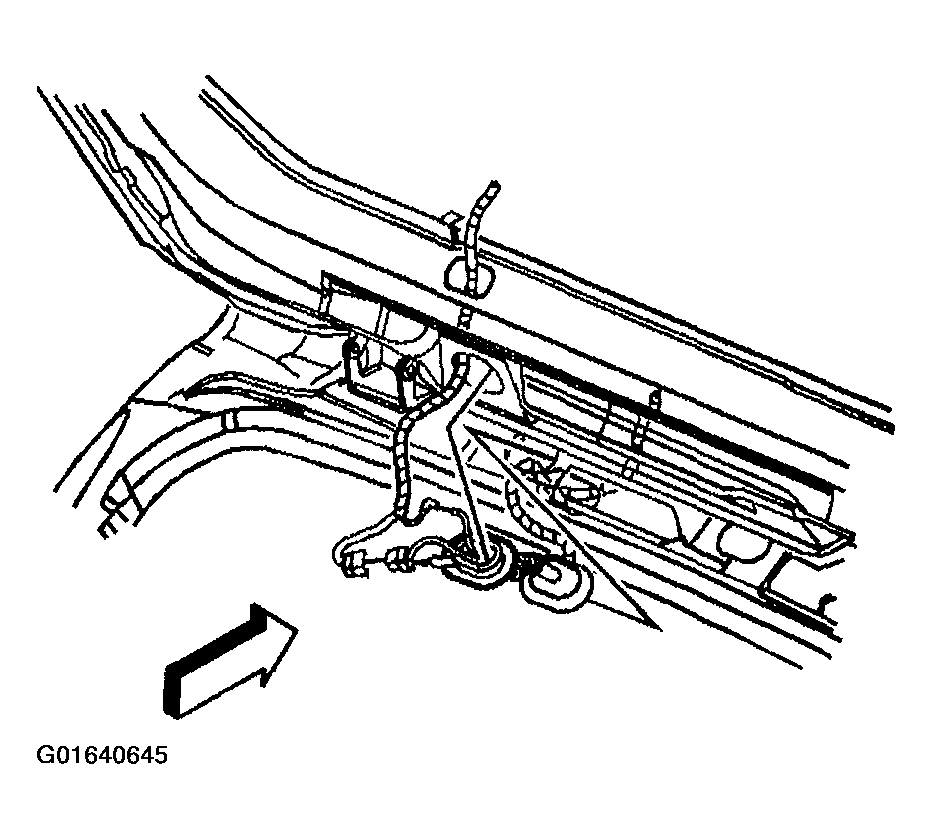

    Fig 2: Removing Hose From Vehicle
    G01640645Courtesy of GENERAL MOTORS CORP.
